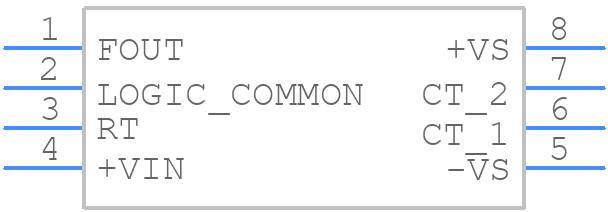

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD654JRZ-REEL by Analog Devices Inc
Overview of AD654JRZ-REEL by Analog Devices Inc
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
Price & Stock for AD654JRZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9734
|
Newark | V/F Converter, 0Hz To 500Khz, 0.2%, Frequency:500Khz, Full Scale Range:0Hz To 500Khz, Linearity %:0.2%, Supply Voltage Range:4.5V To 36V, ± 5V To ± 18V, Digital Ic Case:Nsoic, No. Of Pins:8Pins, Product Range:-, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Analog Devices AD654JRZ-REEL Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3290 |
|
$10.6600 / $11.4800 | Buy Now |
|
DISTI #
AD654JRZ-REELCT-ND
|
DigiKey | IC V/F CONV 500KHZ 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4569 In Stock |
|
$9.7219 / $15.9500 | Buy Now |
|
DISTI #
584-AD654JRZ-R
|
Mouser Electronics | Voltage to Frequency & Frequency to Voltage IC - LOW COST V/F CONV. RoHS: Compliant | 3606 |
|
$9.6600 / $13.4100 | Buy Now |
|
DISTI #
V72:2272_06211027
|
Arrow Electronics | VFC Non-Sync 500kHz 8-Pin SOIC N T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2217 Container: Cut Strips | Americas - 1029 |
|
$9.6430 / $11.3590 | Buy Now |
|
|
Analog Devices Inc | IC - LOW COST V/F CONV. Min Qty: 1 Package Multiple: 2500 | 914 |
|
$7.1500 / $15.9500 | Buy Now |
|
DISTI #
62331281
|
Verical | VFC Non-Sync 500kHz 8-Pin SOIC N T/R Min Qty: 1 Package Multiple: 1 Date Code: 2217 | Americas - 1029 |
|
$9.6430 / $11.3590 | Buy Now |
|
|
ComSIT USA | LOW COST MONOLITHIC VOLTAGE-TO-FREQUENCY CONVERTER Voltage to Frequency Converter, 1 Func, 0.5MHz, Bipolar, PDSO8 RoHS: Compliant | Europe - 33 |
|
RFQ | |
|
|
Chip1Cloud | Low Cost Monolithic Voltage-to-Frequency Converter | IC V-F CONVERTER MONO 8-SOIC | 2200 |
|
RFQ | |
|
|
CHIPMALL.COM LIMITED | 500kHz V/F SOIC-8 Voltage-to-Frequency / Frequency-to-Voltage Converters ROHS | 1038 |
|
$4.9751 / $6.7572 | Buy Now |
|
|
Chips Pulse Industry Limited | SOIC-8 Pre-ordered Chips RoHS Purchase Online, Ship Immediately | 1250 |
|
$4.5689 / $6.2056 | Buy Now |
Part Details for AD654JRZ-REEL
AD654JRZ-REEL CAD Models
AD654JRZ-REEL Part Data Attributes
|
|
AD654JRZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD654JRZ-REEL
Analog Devices Inc
Low Cost Monolithic Voltage-to-Frequency Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | VOLTAGE TO FREQUENCY CONVERTER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Linearity Error-Max (EL) | 0.4% | |
| Moisture Sensitivity Level | 1 | |
| Negative Input Voltage-Max | -5 V | |
| Negative Supply Voltage-Nom | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 0.5 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Positive Input Voltage-Max | 1 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
