Microcontrollers and Processors / Microcontrollers / STM32H735VGH6
Datasheets
STM32H735VGH6 by: STMicroelectronics

High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KBytes RAM, 550 MHz CPU, L1 cache, external memory interface, SMPS, subset of peripherals including a Crypto accelerator

Part Details for STM32H735VGH6 by STMicroelectronics

Results Overview of STM32H735VGH6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

STM32H735VGH6 Information

STM32H735VGH6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32H735VGH6

Part # Distributor Description Stock Price Buy
DISTI # 88AH8159
Newark Stm32H |Stmicroelectronics STM32H735VGH6 RoHS: Not Compliant Min Qty: 2088 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # 497-STM32H735VGH6-ND
DigiKey IC MCU 32BIT 1MB FLASH 100TFBGA Min Qty: 2088 Lead time: 15 Weeks Container: Bulk Temporarily Out of Stock
  • 2,088 $7.9870
$7.9870 Buy Now
DISTI # STM32H735VGH6
Avnet Americas MCU 32-Bit ARM Cortex-M7 RISC 1M-Byte Flash 1.62V to 3.6V 100-Pin TFBGA - Trays (Alt: STM32H735VGH6) RoHS: Not Compliant Min Qty: 2088 Package Multiple: 2088 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 2,088 $7.4787
  • 4,176 $7.2963
  • 8,352 $7.2084
  • 12,528 $7.1226
  • 16,704 $7.0388
$7.0388 / $7.4787 Buy Now
DISTI # 511-STM32H735VGH6
Mouser Electronics ARM Microcontrollers - MCU High-performance & DSP DP-FPU, Arm Cortex-M7 MCU 1 MByte Flash, 564 K... Bytes RAM, more RoHS: Compliant 1843
  • 1 $15.3500
  • 10 $11.6700
  • 25 $11.2000
  • 50 $11.1800
  • 100 $9.8500
  • 250 $9.3700
  • 500 $8.7700
$8.7700 / $15.3500 Buy Now
STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KBytes RAM, 550 MHz ... CPU, L1 cache, external memory interface, SMPS, subset of peripherals including a Crypto accelerator more RoHS: Compliant Min Qty: 1 1843
  • 1 $15.0400
  • 10 $11.4400
  • 25 $10.9800
  • 50 $10.9600
  • 100 $9.6500
  • 250 $9.1800
  • 500 $8.6000
$8.6000 / $15.0400 Buy Now
Future Electronics ARM Microcontrollers - MCU High-performance DSP DP-FPU, Arm Cortex-M7 MCU 1 RoHS: Compliant pbFree: Yes Min Qty: 2088 Package Multiple: 2088 Lead time: 15 Weeks Container: Tray 2088
Tray
  • 2,088 $6.8000
$6.8000 Buy Now
ComSIT USA AVAILABLE EU 4151
RFQ
DISTI # STM32H735VGH6
Avnet Silica MCU 32Bit ARM CortexM7 RISC 1MByte Flash 162V to 36V 100Pin TFBGA (Alt: STM32H735VGH6) RoHS: Compliant Min Qty: 348 Package Multiple: 348 Lead time: 16 Weeks, 0 Days Silica - 1740
Buy Now
DISTI # STM32H735VGH6
Avnet Silica MCU 32Bit ARM CortexM7 RISC 1MByte Flash 162V to 36V 100Pin TFBGA (Alt: STM32H735VGH6) RoHS: Compliant Min Qty: 348 Package Multiple: 348 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32H735VGH6
EBV Elektronik MCU 32Bit ARM CortexM7 RISC 1MByte Flash 162V to 36V 100Pin TFBGA (Alt: STM32H735VGH6) RoHS: Compliant Min Qty: 348 Package Multiple: 348 Lead time: 16 Weeks, 0 Days EBV - 9744
Buy Now
Vyrian Peripheral ICs 5262
RFQ

Part Details for STM32H735VGH6

STM32H735VGH6 CAD Models

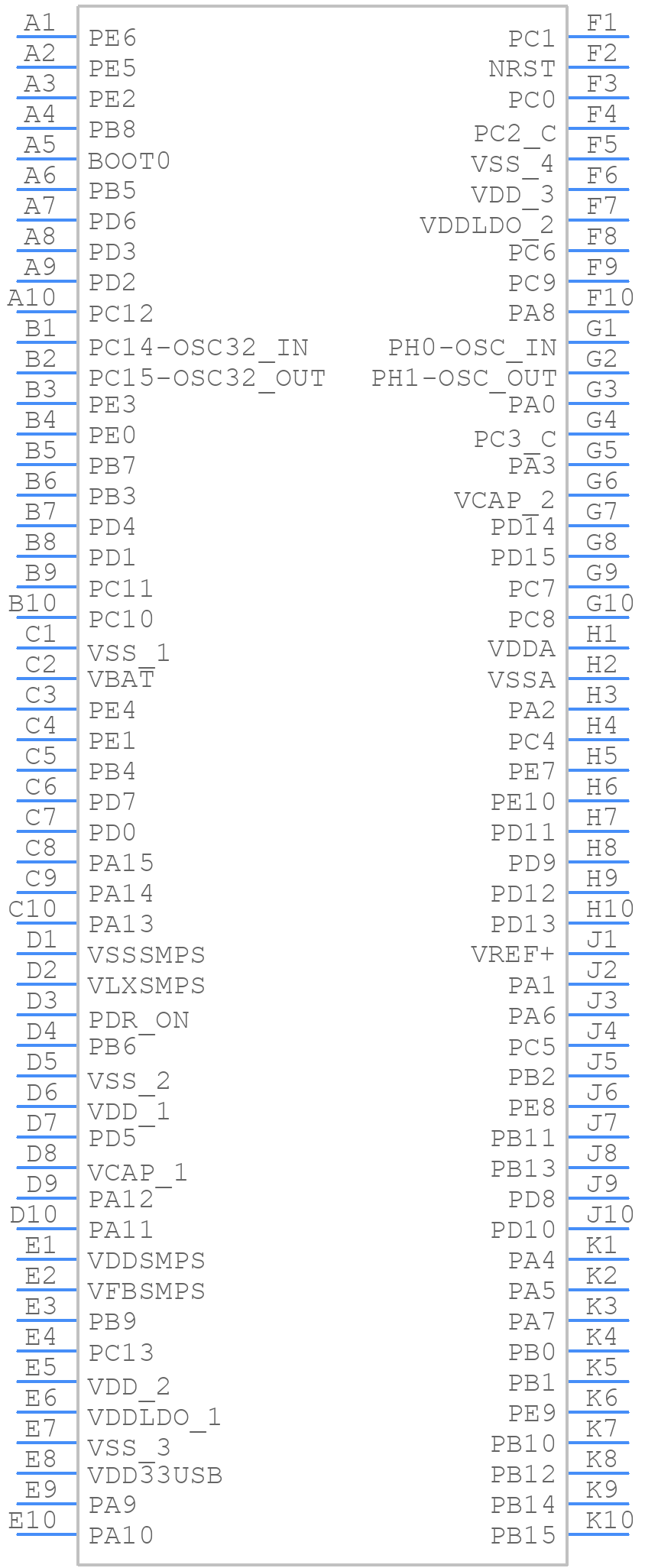

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

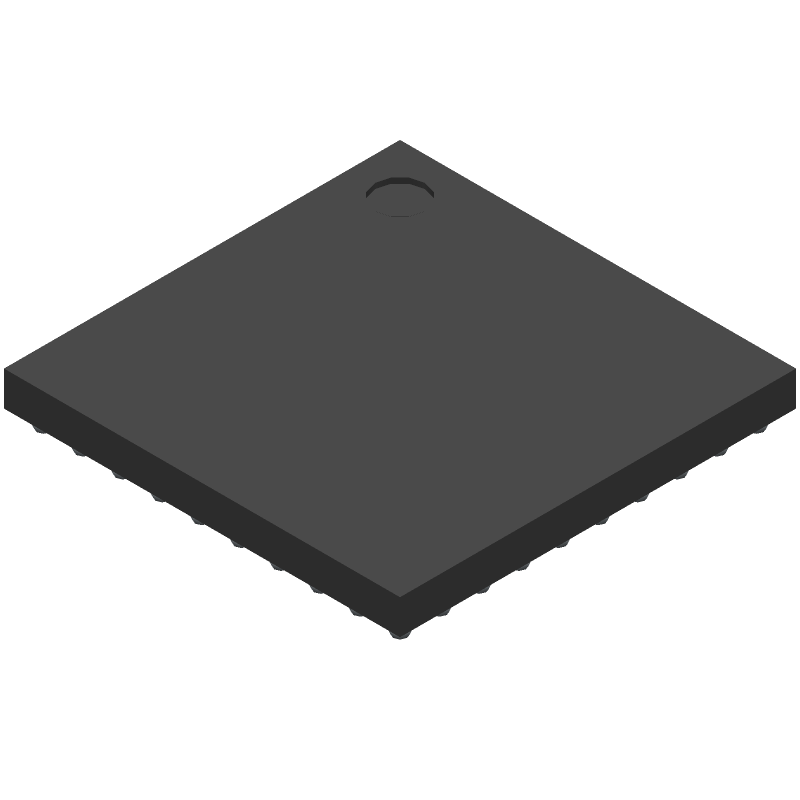

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32H735VGH6 Part Data Attributes

Parametric Data
STM32H735VGH6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32H735VGH6 STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KBytes RAM, 550 MHz CPU, L1 cache, external memory interface, SMPS, subset of peripherals including a Crypto accelerator
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description TFBGA-100
Reach Compliance Code compliant
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M7
Clock Frequency-Max 50 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B100
Length 8 mm
Low Power Mode YES
Number of DMA Channels 4
Number of I/O Lines 74
Number of Serial I/Os 14
Number of Terminals 100
Number of Timers 27
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA100,10X10,32
Package Shape SQUARE
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
RAM (bytes) 577536
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.1 mm
Speed 550 MHz
Supply Current-Max 360 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Width 8 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

STM32H735VGH6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32H735VGH6 is 550 MHz.

  • The STM32H735VGH6 has 1 MB of flash memory.

  • The maximum operating temperature range of the STM32H735VGH6 is -40°C to 125°C.

  • Yes, the STM32H735VGH6 supports USB OTG (On-The-Go) with a dedicated USB OTG_FS controller.

  • The STM32H735VGH6 has 6 UARTs (Universal Asynchronous Receiver-Transmitters).
