10-Port Constant-Current LED Drivers and I/O Expanders with PWM Intensity Control, 16-QSOP-150_MIL, 16 Pins, -40 to 125C

Part Details for MAX6966AEE+ by Analog Devices Inc

Results Overview of MAX6966AEE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX6966AEE+ Information

MAX6966AEE+ by Analog Devices Inc is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX6966AEE+

Part # Distributor Description Stock Price Buy
DISTI # 2516036
Farnell LED DRIVER W/ I/O EXPANDER, QSOP-16 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each 213
  • 1 $8.2023
  • 10 $5.0486
  • 25 $4.7438
  • 100 $4.4391
  • 300 $4.3463
  • 500 $4.3066
$4.3066 / $8.2023 Buy Now
DISTI # 700-MAX6966AEE
Mouser Electronics LED Display Drivers 10-Port Constant-Current LED Drivers and RoHS: Compliant 1021
  • 1 $7.5400
  • 10 $4.4700
  • 100 $4.2200
$4.2200 / $7.5400 Buy Now
Analog Devices Inc 10-Port Constant-Current LED D Package Multiple: 1 22343
  • 1 $6.3800
  • 10 $5.0970
  • 25 $4.4612
  • 100 $3.0101
  • 500 $2.5041
  • 1,000 $2.4863
$2.4863 / $6.3800 Buy Now
Bristol Electronics   27
RFQ

Part Details for MAX6966AEE+

MAX6966AEE+ CAD Models

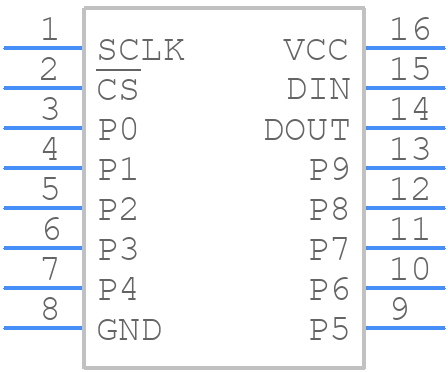

  • Part Symbol

    Part Symbol

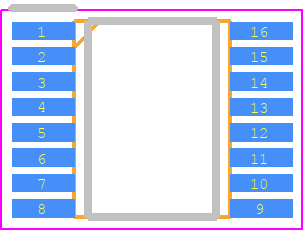

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX6966AEE+ Part Data Attributes

Parametric Data
MAX6966AEE+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX6966AEE+ Analog Devices Inc 10-Port Constant-Current LED Drivers and I/O Expanders with PWM Intensity Control, 16-QSOP-150_MIL, 16 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-QSOP-150_MIL
Package Description 0.150 INCH, 0.025 MM PITCH, MO-137AB, QSOP-16
Pin Count 16
Manufacturer Package Code 16-QSOP-150_MIL
Reach Compliance Code compliant
Date Of Intro 2004-11-19
Samacsys Manufacturer Analog Devices
Data Input Mode SERIAL
Display Mode SEGMENT
Interface IC Type LED DISPLAY DRIVER
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Multiplexed Display Capability NO
Number of Functions 1
Number of Segments 10
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.25 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
fmax-Min 0.1 MHz
