4A, 20ns, Dual MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C

Part Details for MAX5055BASA+T by Analog Devices Inc

Results Overview of MAX5055BASA+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MAX5055BASA+T Information

MAX5055BASA+T by Analog Devices Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX5055BASA+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX5055BASAT
Mouser Electronics Gate Drivers 4A, 20ns, Dual MOSFET Drivers RoHS: Compliant 2419
  • 1 $12.8800
  • 10 $8.8900
  • 25 $7.8500
  • 100 $6.6700
  • 250 $6.4300
  • 2,500 $6.4200
$6.4200 / $12.8800 Buy Now
Analog Devices Inc 4A, 20ns, Dual MOSFET Drivers Min Qty: 1 Package Multiple: 1 456
  • 1 $6.2600
  • 1,000 $5.1400
$5.1400 / $6.2600 Buy Now

Part Details for MAX5055BASA+T

MAX5055BASA+T Part Data Attributes

Parametric Data
MAX5055BASA+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:

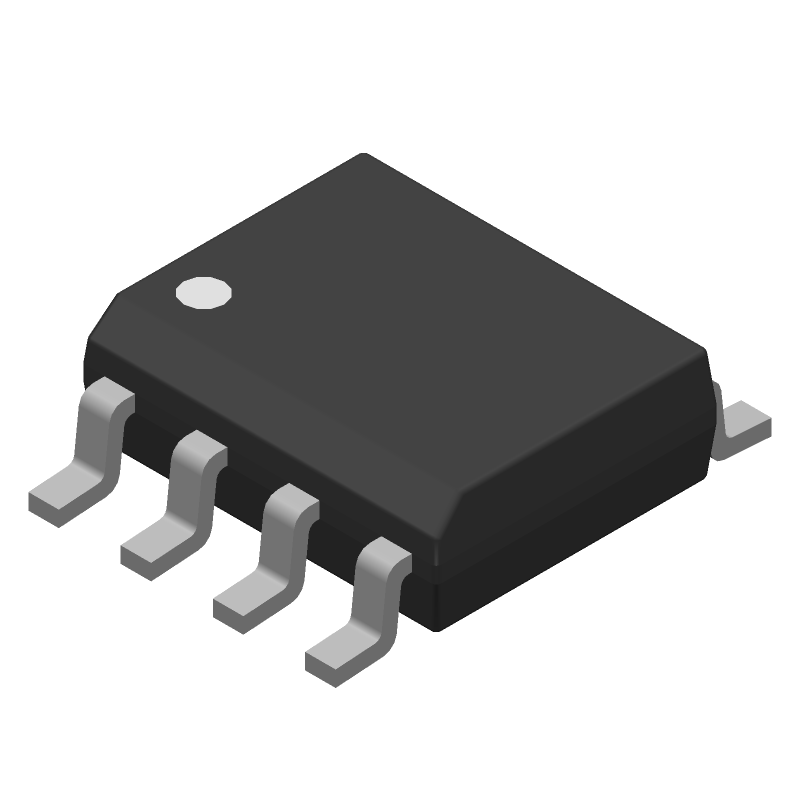

MAX5055BASA+T Analog Devices Inc 4A, 20ns, Dual MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 8-SOIC_N-150_MIL
Package Description 0.150 INCH, MS-012AA, SOIC-8
Pin Count 8
Manufacturer Package Code 8-SOIC_N-150_MIL
Reach Compliance Code compliant
Date Of Intro 2004-08-03
Samacsys Manufacturer Analog Devices
High Side Driver NO
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Peak Current Limit-Nom 4 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max 15 V
Supply Voltage-Min 4 V
Supply Voltage-Nom 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Turn-off Time 0.07 µs
Turn-on Time 0.07 µs
Width 3.9 mm
