±15kV ESD-Protected, 1µA, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutdown Plus, 16-SSOP-5.3_MM, 16 Pins, -40 to 125C

Part Details for MAX3226EAAE+ by Analog Devices Inc

Results Overview of MAX3226EAAE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Financial Technology (Fintech) Telecommunications Communication and Networking

MAX3226EAAE+ Information

MAX3226EAAE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX3226EAAE+

Part # Distributor Description Stock Price Buy
DISTI # 26AM2469
Newark Txrx, Rs232, 250Kbps, 125Degc, Ssop-16, Ic Type:Rs232 Transceiver, No. Of Receivers:1Receivers, N... o. Of Transmitters:1, Communication Mode:-, Data Rate Max:250Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices MAX3226EAAE+ more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2
  • 1 $7.6600
  • 10 $6.9200
  • 25 $6.7500
  • 50 $6.2400
  • 152 $5.7300
  • 304 $5.4700
$5.4700 / $7.6600 Buy Now
DISTI # 700-MAX3226EAAE+
Mouser Electronics RS-232 Interface IC 15kV ESD-Protected, 1 A, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutd... own Plus more RoHS: Compliant 252
  • 1 $8.8400
  • 10 $6.8700
  • 76 $5.7000
  • 228 $5.5200
  • 532 $5.4000
  • 1,064 $5.1600
$5.1600 / $8.8400 Buy Now
Analog Devices Inc ±15kV ESD-Protected, 1µA, 1Mbp Package Multiple: 1 4042
  • 1 $10.3700
  • 10 $7.0600
  • 1,000 $3.8500
$3.8500 / $10.3700 Buy Now

Part Details for MAX3226EAAE+

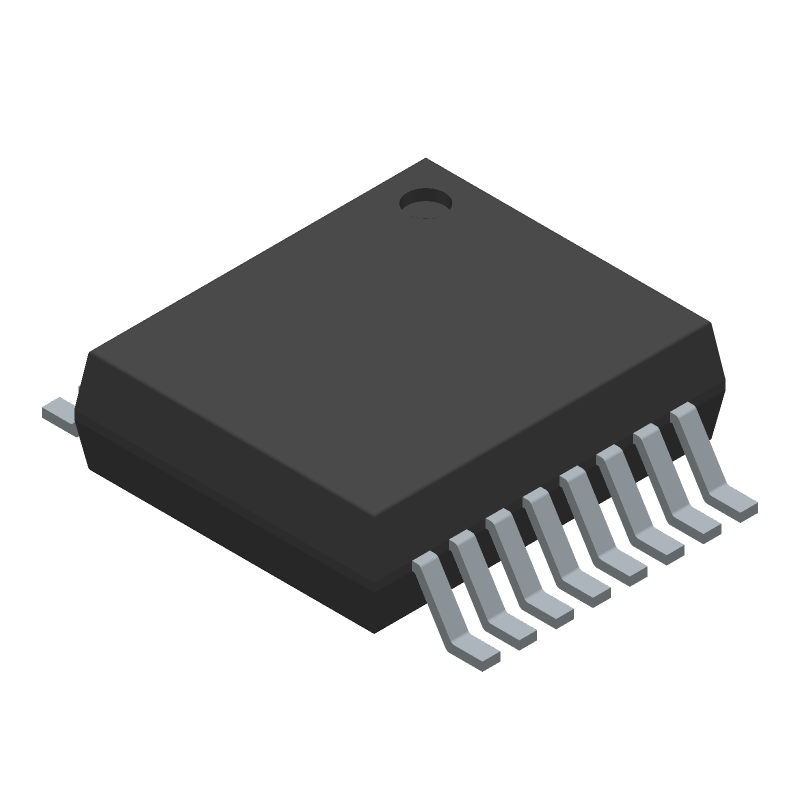

MAX3226EAAE+ CAD Models

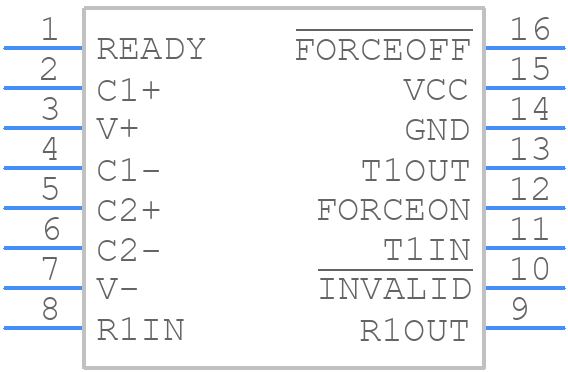

  • Part Symbol

    Part Symbol

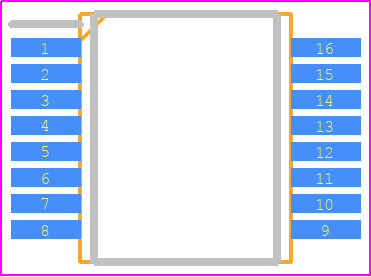

  • Footprint
