Drivers And Interfaces / Line Driver or Receivers / MAX3222EUP+T
Datasheets
MAX3222EUP+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C

Part Details for MAX3222EUP+T by Analog Devices Inc

Results Overview of MAX3222EUP+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

MAX3222EUP+T Information

MAX3222EUP+T by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX3222EUP+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX3222EUPT
Mouser Electronics RS-232 Interface IC 3.0V to 5.5V, Low-Power, up to 1Mbps, Tr RoHS: Compliant 618
  • 1 $8.5300
  • 10 $6.6200
  • 25 $6.0700
  • 100 $5.2100
  • 250 $4.8100
  • 2,500 $4.7500
$4.7500 / $8.5300 Buy Now
Analog Devices Inc 3.0V to 5.5V, Low-Power, up to Min Qty: 1 Package Multiple: 1 596
  • 1 $10.0700
  • 10 $6.8410
  • 25 $5.9992
  • 100 $5.0471
  • 250 $4.6250
  • 1,000 $3.7000
  • 2,500 $4.6250
$3.7000 / $10.0700 Buy Now

Part Details for MAX3222EUP+T

MAX3222EUP+T CAD Models

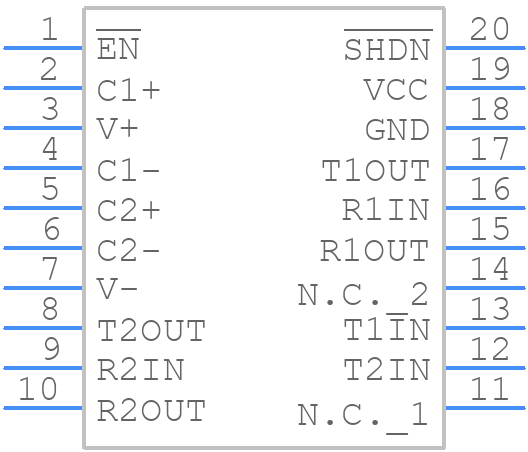

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX3222EUP+T Part Data Attributes

Parametric Data
MAX3222EUP+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX3222EUP+T Analog Devices Inc 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 20-TSSOP_4.4-4.4_MM
Package Description 4.40 MM, 0.65 MM PITCH, MO-153AD, TSSOP-20
Pin Count 20
Manufacturer Package Code 20-TSSOP_4.4-4.4_MM
Reach Compliance Code compliant
Date Of Intro 1996-05-23
Samacsys Manufacturer Analog Devices
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; EIA-562
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 6.5 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 10 V
Output Low Current-Max 0.0016 A
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receiver Number of Bits 2
Seated Height-Max 1.1 mm
Supply Current-Max 1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for MAX3222EUP+T

This table gives cross-reference parts and alternative options found for MAX3222EUP+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3222EUP+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX3222CUP+T Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 4.40 MM, 0.65 MM PITCH, MO-153AD, TSSOP-20 MAX3222EUP+T vs MAX3222CUP+T
MAX3222CUP Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 4.40 MM, 0.65 MM PITCH, MO-153AD, TSSOP-20 MAX3222EUP+T vs MAX3222CUP
MAX3222EUP-T Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, 4.40 MM, 0.65 MM PITCH, MO-153AD, TSSOP-20 MAX3222EUP+T vs MAX3222EUP-T
MAX3222EUP Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 4.40 MM, 0.65 MM PITCH, MO-153AD, TSSOP-20 MAX3222EUP+T vs MAX3222EUP
Part Number Manufacturer Composite Price Description Compare
ICL3223IVZ-T Intersil Corporation Check for Price 1µA Supply-Current, +3V to +5.5V, 250kbps, RS-232 Transmitters/Receivers; SSOP20, TSSOP20; Temp Range: See Datasheet MAX3222EUP+T vs ICL3223IVZ-T
MAX3223CAP Rochester Electronics LLC Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 MAX3222EUP+T vs MAX3223CAP
MAX3232EEAI Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, PDSO28, 0.200 INCH, 0.65 MM PITCH, SSOP-28 MAX3222EUP+T vs MAX3232EEAI
MAX3223CAP Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 MAX3222EUP+T vs MAX3223CAP
MAX3223CUP-T Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 MAX3222EUP+T vs MAX3223CUP-T
MAX3223EUP+ Analog Devices Inc $2.9973 +3V to +5.5V RS-232 Transceivers with AutoShutdown, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C MAX3222EUP+T vs MAX3223EUP+
MAX3223EUP-T Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 MAX3222EUP+T vs MAX3223EUP-T
MAX3223CAP+G65 Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 MAX3222EUP+T vs MAX3223CAP+G65
MAX13223EEUP+ Analog Devices Inc $5.3075 ±70V Fault-Protected, 3.0V to 5.5V, 2Tx/2Rx RS-232 Transceiver, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C MAX3222EUP+T vs MAX13223EEUP+
MAX3223EAP+ Analog Devices Inc $4.6256 +3V to +5.5V RS-232 Transceivers with AutoShutdown, 20-SSOP-5.3_MM, 20 Pins, -40 to 85C MAX3222EUP+T vs MAX3223EAP+

MAX3222EUP+T Related Parts

MAX3222EUP+T Frequently Asked Questions (FAQ)

  • The recommended layout and placement for the MAX3222EUP+T involves keeping the device close to the UART interface, using short traces, and avoiding vias under the device. It's also important to keep the VCC and GND pins as close as possible to reduce noise and ensure proper operation.

  • The MAX3222EUP+T has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and storing the device in an ESD-safe environment.

  • The maximum cable length supported by the MAX3222EUP+T depends on the baud rate and the quality of the cable. As a general rule, the maximum cable length is around 100 feet at 9600bps, but this can be extended to several hundred feet at lower baud rates.

  • Yes, the MAX3222EUP+T can be used in a multi-point RS-485 network, but it's important to ensure that only one device is transmitting at a time to avoid data corruption. This can be achieved using a master-slave architecture or by implementing a token-passing protocol.

  • The RS-485 bus should be terminated with a 120Ω resistor at each end of the bus to prevent signal reflections and ensure reliable data transmission. The termination resistor should be placed as close as possible to the MAX3222EUP+T device.
