MAX15019BASA+T by:

125V/3A, High-Speed, Half-Bridge MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C

Part Details for MAX15019BASA+T by Analog Devices Inc

Overview of MAX15019BASA+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for MAX15019BASA+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX15019BASAT
Mouser Electronics Gate Drivers 125V/3A, High-Speed, Half-Bridge MOSFET Drivers RoHS: Compliant 0
  • 2,500 $6.5400
$6.5400 Order Now
Analog Devices Inc 125V/3A, High-Speed, Half-Brid Min Qty: 2500 Package Multiple: 1 0
  • 1,000 $4.7900
  • 2,500 $6.2105
$4.7900 / $6.2105 Buy Now
DISTI # 3920385
Farnell HALF BRIDGE MOSFET DRIVER, 3A, 12.6V RoHS: Compliant Min Qty: 2500 Lead time: 11 Weeks, 1 Days Container: Reel 0
  • 2,500 $6.2765
$6.2765 Buy Now

Part Details for MAX15019BASA+T

MAX15019BASA+T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

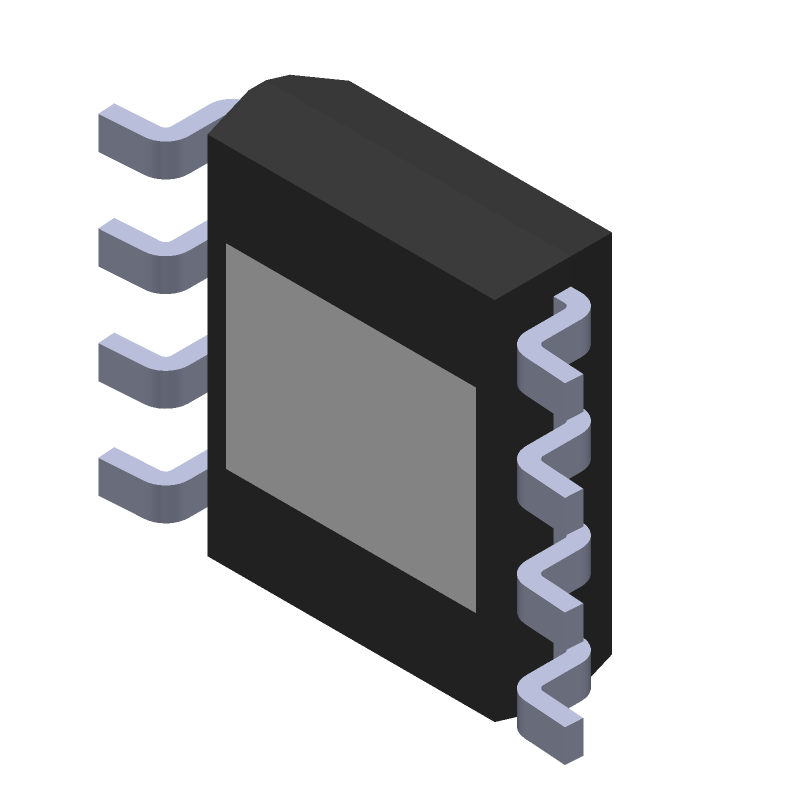

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX15019BASA+T Part Data Attributes:

Parametric Data
MAX15019BASA+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX15019BASA+T Analog Devices Inc 125V/3A, High-Speed, Half-Bridge MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code 8-SOIC_N-150_MIL
Pin Count 8
Manufacturer Package Code 8-SOIC_N-150_MIL
Date Of Intro 2008-06-09
Samacsys Manufacturer Analog Devices
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
JESD-609 Code e3
Moisture Sensitivity Level 1
Peak Reflow Temperature (Cel) 260
Terminal Finish Matte Tin (Sn)
Time@Peak Reflow Temperature-Max (s) 30
