Power Circuits / Voltage References / LT6654BHS6-1.25#TRMPBF
Datasheets
LT6654BHS6-1.25#TRMPBF by:
Analog Devices Inc
Analog Devices Inc
Linear Technology
Not Found

Precision Wide Supply High Output Drive Low Noise Reference

Part Details for LT6654BHS6-1.25#TRMPBF by Analog Devices Inc

Results Overview of LT6654BHS6-1.25#TRMPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LT6654BHS6-1.25#TRMPBF Information

LT6654BHS6-1.25#TRMPBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT6654BHS6-1.25#TRMPBF

Part # Distributor Description Stock Price Buy
DISTI # 51AK9038
Newark Volt Ref, 1.25V, -40 To 125Deg C, Voltage Reference Type:Series, Product Range:Lt6654 Series, Ref... erence Voltage Min:1.249V, Reference Voltage Max:1.251V, Initial Accuracy:0.1%, Temperature Coefficient:20Ppm/°C, No. Of Pins:6Pins Rohs Compliant: Yes |Analog Devices LT6654BHS6-1.25#TRMPBF more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 428
  • 1 $6.1100
  • 10 $3.4900
  • 25 $3.2900
  • 50 $3.0800
  • 100 $2.8800
  • 250 $2.5800
  • 500 $2.3800
  • 1,000 $2.3500
$2.3500 / $6.1100 Buy Now
DISTI # LT6654BHS6-1.25#TRMPBFCT-ND
DigiKey IC VREF SERIES 0.1% TSOT23-6 Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2829
In Stock
  • 1 $6.1200
  • 10 $4.0330
  • 25 $3.4892
  • 100 $2.8738
  • 250 $2.5717
  • 500 $2.3859
  • 1,000 $2.3500
$2.3500 / $6.1200 Buy Now
DISTI # 584-6654BHS61.25TMPF
Mouser Electronics Voltage References Prec Wide S Hi Out Drv L N Ref RoHS: Compliant 461
  • 1 $4.6300
  • 10 $3.5200
  • 25 $3.2500
  • 100 $2.8100
  • 250 $2.6800
  • 500 $2.5200
  • 1,000 $2.4500
  • 2,500 $2.4300
$2.4300 / $4.6300 Buy Now
DISTI # V72:2272_06435390
Arrow Electronics V-Ref Precision 1.25V 10mA 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks Date Code: 2349 Container: Cut Strips Americas - 220
  • 1 $4.5720
  • 10 $3.4940
  • 25 $3.2220
  • 100 $2.4110
$2.4110 / $4.5720 Buy Now
Analog Devices Inc Prec Wide S Hi Out Drv L N Ref Package Multiple: 500 5583
  • 1 $6.1200
  • 10 $4.0330
  • 25 $3.4892
  • 100 $2.8738
  • 250 $2.5717
  • 500 $2.3859
  • 1,000 $2.3500
$2.3500 / $6.1200 Buy Now
DISTI # 46217404
Verical V-Ref Precision 1.25V 10mA 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 5000
  • 500 $2.3648
$2.3648 Buy Now
DISTI # 83688120
Verical V-Ref Precision 1.25V 10mA 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2349 Americas - 220
  • 3 $4.5720
  • 10 $3.4940
  • 25 $3.2220
  • 100 $2.4110
$2.4110 / $4.5720 Buy Now
DISTI # LT6654BHS61.25T
Richardson RFPD VOLTAGE REFERENCE RoHS: Compliant Min Qty: 500 0
  • 500 $2.5900
  • 1,000 $2.5200
  • 5,000 $2.4300
$2.4300 / $2.5900 Buy Now
Win Source Electronics IC VREF SERIES 0.1% TSOT23-6 3300
  • 2 $59.3490
  • 4 $48.6960
  • 5 $47.1750
  • 7 $45.6525
  • 9 $44.1315
  • 12 $39.5655
$39.5655 / $59.3490 Buy Now

Part Details for LT6654BHS6-1.25#TRMPBF

LT6654BHS6-1.25#TRMPBF CAD Models

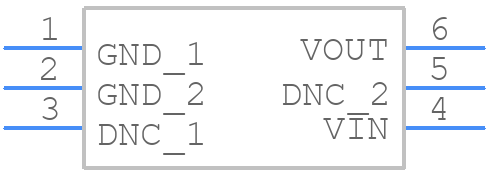

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

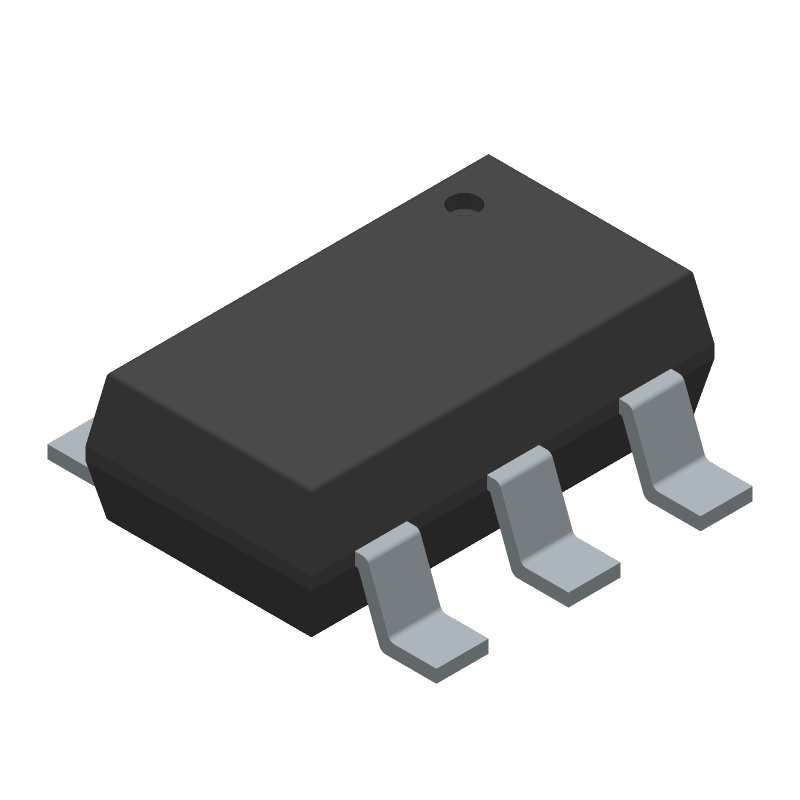

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT6654BHS6-1.25#TRMPBF Part Data Attributes

Parametric Data
LT6654BHS6-1.25#TRMPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT6654BHS6-1.25#TRMPBF Analog Devices Inc Precision Wide Supply High Output Drive Low Noise Reference
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description TSOT-23, 6 PIN
Pin Count 6
Manufacturer Package Code 05-08-1636
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Length 2.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Voltage-Max 1.25538 V
Output Voltage-Min 1.24463 V
Output Voltage-Nom 1.25 V
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSOP6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 36 V
Supply Voltage-Min (Vsup) 2.4 V
Surface Mount YES
Technology BIPOLAR
Temp Coef of Voltage-Max 20 ppm/°C
Temperature Grade MILITARY
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Trim/Adjustable Output NO
Voltage Tolerance-Max 0.43%
Width 1.625 mm

Alternate Parts for LT6654BHS6-1.25#TRMPBF

This table gives cross-reference parts and alternative options found for LT6654BHS6-1.25#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6654BHS6-1.25#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT6654BHS6-1.25#TRMPBF Linear Technology Check for Price LT6654 - Precision Wide Supply High Output Drive Low Noise Reference; Package: SOT; Pins: 6; Temperature Range: -40°C to 125°C LT6654BHS6-1.25#TRMPBF vs LT6654BHS6-1.25#TRMPBF
Part Number Manufacturer Composite Price Description Compare
MAX6037AAUK12+T Analog Devices Inc $0.9674 Low-Power, Fixed and Adjustable Reference with Shutdown in SOT23, 5-SOT_23-N/A, 5 Pins, -40 to 125C LT6654BHS6-1.25#TRMPBF vs MAX6037AAUK12+T
MAX6161AESA+T Analog Devices Inc Check for Price Precision, Micropower, Low-Dropout, High-Output-Current, SO-8 Voltage References, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C LT6654BHS6-1.25#TRMPBF vs MAX6161AESA+T
MAX6190AESA+ Analog Devices Inc Check for Price Precision, Micropower, Low-Dropout Voltage References, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C LT6654BHS6-1.25#TRMPBF vs MAX6190AESA+
MAX6190BESA+ Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BICMOS, PDSO8, ROHS COMPLIANT, SOP-8 LT6654BHS6-1.25#TRMPBF vs MAX6190BESA+
MAX6037BAUK12+T Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BICMOS, PDSO5, MO-178AA, SOT-23, 5 PIN LT6654BHS6-1.25#TRMPBF vs MAX6037BAUK12+T
MAX6161BESA+T Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BICMOS, PDSO8, 0.150 INCH, MS-012A, SOIC-8 LT6654BHS6-1.25#TRMPBF vs MAX6161BESA+T
MAX6161AESA Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BICMOS, PDSO8, 0.150 INCH, MS-012AA, SOIC-8 LT6654BHS6-1.25#TRMPBF vs MAX6161AESA
MAX6190CESA Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BIPolar, PDSO8, 0.150 INCH, MS-012A, SOIC-8 LT6654BHS6-1.25#TRMPBF vs MAX6190CESA
MAX6037BAUK12+ Analog Devices Inc Check for Price Low-Power, Fixed and Adjustable Reference with Shutdown in SOT23, 5-SOT_23-N/A, 5 Pins, -40 to 125C LT6654BHS6-1.25#TRMPBF vs MAX6037BAUK12+
MAX6190AESA-T Maxim Integrated Products Check for Price Three Terminal Voltage Reference, 1 Output, 1.25V, BIPolar, PDSO8, 0.150 INCH, MS-012A, SOIC-8 LT6654BHS6-1.25#TRMPBF vs MAX6190AESA-T

LT6654BHS6-1.25#TRMPBF Related Parts

LT6654BHS6-1.25#TRMPBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LT6654BHS6-1.25 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.

  • To ensure stability, make sure to follow the recommended capacitor values and types, keep the output capacitor ESR low, and avoid using capacitors with high ESL. Also, ensure the device is properly decoupled and the input voltage is well-regulated.

  • The LT6654BHS6-1.25 can deliver up to 20mA of output current, but this may vary depending on the input voltage, output voltage, and temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.

  • The LT6654BHS6-1.25 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to consider the device's thermal characteristics, power dissipation, and potential thermal shutdown when operating in high-temperature environments.

  • To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify the device is properly decoupled, and the PCB layout is correct. Use an oscilloscope to check for noise, oscillations, or other anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
