Drivers And Interfaces / Line Driver or Receivers / DS90LV804TSQX
Datasheets
DS90LV804TSQX by:
Texas Instruments
National Semiconductor Corporation
Texas Instruments
Not Found

4-Channel 800 Mbps LVDS Buffer/Repeater 32-WQFN -40 to 85

Part Details for DS90LV804TSQX by Texas Instruments

Results Overview of DS90LV804TSQX by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage Healthcare Medical Imaging

DS90LV804TSQX Information

DS90LV804TSQX by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DS90LV804TSQX/NOPB Texas Instruments 4-Channel 800 Mbps LVDS Buffer/Repeater 32-WQFN -40 to 85

Price & Stock for DS90LV804TSQX

Part # Distributor Description Stock Price Buy
Win Source Electronics IC REDRIVER LVDS 4CH 32WQFN 15400
  • 11 $4.8516
  • 26 $3.9808
  • 39 $3.8564
  • 54 $3.7320
  • 70 $3.6076
  • 93 $3.2344
$3.2344 / $4.8516 Buy Now

Part Details for DS90LV804TSQX

DS90LV804TSQX CAD Models

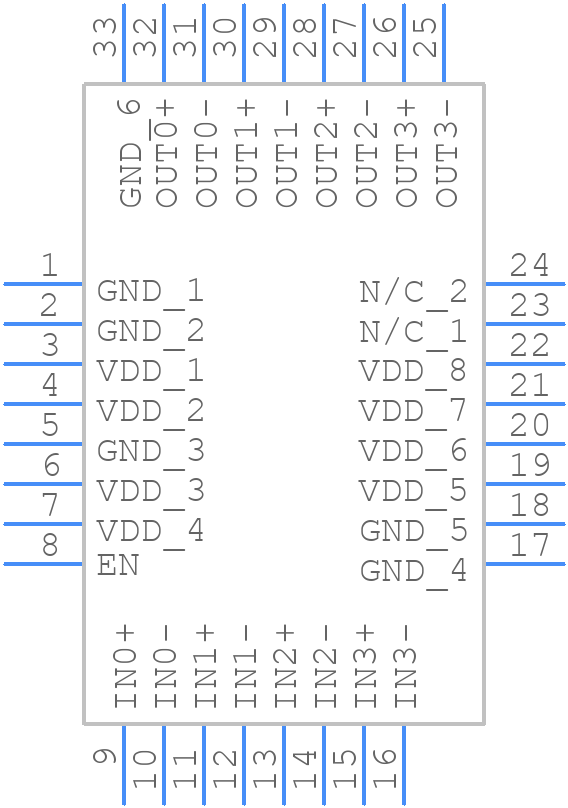

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DS90LV804TSQX Part Data Attributes

Parametric Data
DS90LV804TSQX Texas Instruments
Buy Now Datasheet
Compare Parts:
DS90LV804TSQX Texas Instruments 4-Channel 800 Mbps LVDS Buffer/Repeater 32-WQFN -40 to 85
Select a part to compare:
Pbfree Code No
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFN
Package Description PLASTIC, LLP-32
Pin Count 32
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Driver Number of Bits 4
High Level Input Current-Max 0.00001 A
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type LINE RECEIVER
Interface Standard GENERAL PURPOSE
JESD-30 Code S-PQCC-N32
Length 5 mm
Number of Functions 4
Number of Terminals 32
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 0.25 V
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC32,.2SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Receive Delay-Max 3.2 ns
Receiver Number of Bits 4
Seated Height-Max 0.8 mm
Supply Current-Max 140 mA
Supply Voltage-Max 3.45 V
Supply Voltage-Min 3.15 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transmit Delay-Max 3.2 ns
Width 5 mm

Alternate Parts for DS90LV804TSQX

This table gives cross-reference parts and alternative options found for DS90LV804TSQX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS90LV804TSQX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DS90LV804TSQX/NOPB Texas Instruments $2.4860 4-channel 800-Mbps LVDS buffer/repeater 32-WQFN -40 to 85 DS90LV804TSQX vs DS90LV804TSQX/NOPB
DS90LV804TSQX/NOPB National Semiconductor Corporation Check for Price IC QUAD LINE RECEIVER, PQCC32, GREEN, PLASTIC, LLP-32, Line Driver or Receiver DS90LV804TSQX vs DS90LV804TSQX/NOPB
