High Speed, Dual, 2 A MOSFET Driver, non-inverting A/B input pins

Part Details for ADP3630ARMZ-R7 by Analog Devices Inc

Results Overview of ADP3630ARMZ-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

ADP3630ARMZ-R7 Information

ADP3630ARMZ-R7 by Analog Devices Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for ADP3630ARMZ-R7

Part # Distributor Description Stock Price Buy
DISTI # 4406738
Farnell GATE DRIVER IC, MOSFET, 2CH, MSOP-8 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Cut Tape 1000
  • 1 $3.5000
  • 10 $2.3023
  • 25 $2.1027
  • 100 $1.9031
  • 250 $1.7034
  • 1,000 $1.4772
$1.4772 / $3.5000 Buy Now
DISTI # 4406738RL
Farnell GATE DRIVER IC, MOSFET, 2CH, MSOP-8 RoHS: Compliant Min Qty: 100 Lead time: 11 Weeks, 1 Days Container: Reel 1000
  • 100 $1.9031
  • 250 $1.7034
  • 1,000 $1.4772
$1.4772 / $1.9031 Buy Now
DISTI # ADP3630ARMZ-R7CT-ND
DigiKey IC GATE DRVR LOW-SIDE 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 746
In Stock
  • 1 $3.8000
  • 10 $2.4370
  • 25 $2.0824
  • 100 $1.6807
  • 250 $1.4834
  • 500 $1.3621
  • 1,000 $1.2605
  • 2,000 $1.2125
$1.2125 / $3.8000 Buy Now
DISTI # 584-ADP3630ARMZ-R7
Mouser Electronics Gate Drivers High Speed, Dual,2A Non-Inverting Driver RoHS: Compliant 1184
  • 1 $2.5600
  • 10 $1.9100
  • 25 $1.7500
  • 100 $1.5700
  • 250 $1.4800
  • 500 $1.4100
  • 1,000 $1.4100
  • 2,000 $1.2500
  • 5,000 $1.2400
$1.2400 / $2.5600 Buy Now
Analog Devices Inc High Speed, Dual,2A Non-Invert Min Qty: 1 Package Multiple: 1000 182
  • 1 $3.8000
  • 10 $2.4370
  • 25 $2.0824
  • 100 $1.6807
  • 250 $1.4834
  • 500 $1.3621
  • 1,000 $1.2605
  • 2,000 $1.2125
$1.2125 / $3.8000 Buy Now

Part Details for ADP3630ARMZ-R7

ADP3630ARMZ-R7 CAD Models

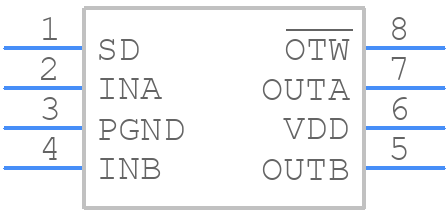

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADP3630ARMZ-R7 Part Data Attributes

Parametric Data
ADP3630ARMZ-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADP3630ARMZ-R7 Analog Devices Inc High Speed, Dual, 2 A MOSFET Driver, non-inverting A/B input pins
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSSOP
Package Description ROHS COMPLIANT, MO-187-AA, MSOP-8
Pin Count 8
Manufacturer Package Code RM-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
High Side Driver YES
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Peak Current Limit-Nom 2 A
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Supply Voltage-Max 18 V
Supply Voltage-Min 9.5 V
Supply Voltage-Nom 12 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Turn-off Time 35 µs
Turn-on Time 30 µs
Width 3 mm

ADP3630ARMZ-R7 Related Parts

ADP3630ARMZ-R7 Frequently Asked Questions (FAQ)

  • A good PCB layout for the ADP3630ARMZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.

  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.

  • The ADP3630ARMZ-R7 is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.

  • Yes, the ADP3630ARMZ-R7 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.

  • To troubleshoot issues with the ADP3630ARMZ-R7, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage ripple and noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.
