High-Speed, 2-Channel RS232/V.28 Interface Devices

Part Details for ADM1385ARSZ-REEL7 by Analog Devices Inc

Results Overview of ADM1385ARSZ-REEL7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

ADM1385ARSZ-REEL7 Information

ADM1385ARSZ-REEL7 by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for ADM1385ARSZ-REEL7

Part # Distributor Description Stock Price Buy
DISTI # 60AK5079
Newark Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of... Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:460Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM1385ARSZ-REEL7 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 501
  • 1 $6.5400
  • 10 $4.3200
  • 25 $4.1000
  • 50 $3.8700
  • 100 $3.6500
  • 250 $3.3300
  • 500 $3.1200
  • 1,000 $2.8800
$2.8800 / $6.5400 Buy Now
DISTI # ADM1385ARSZ-REEL7CT-ND
DigiKey IC TRANSCEIVER FULL 2/2 20SSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3817
In Stock
  • 1 $5.4200
  • 10 $4.1420
  • 25 $3.8224
  • 100 $3.4710
  • 250 $3.3034
  • 500 $2.8000
$2.8000 / $5.4200 Buy Now
DISTI # 584-ADM1385ARSZ-R7
Mouser Electronics RS-232 Interface IC LOW POWER, 3V, RS-232 I.C. 1298
  • 1 $6.9500
  • 10 $4.6200
  • 25 $4.0100
  • 100 $3.3300
  • 250 $2.9900
  • 500 $2.8000
$2.8000 / $6.9500 Buy Now
Analog Devices Inc LOW POWER, 3V, RS-232 I.C. Min Qty: 1 Package Multiple: 500 2764
  • 1 $6.9500
  • 10 $4.6180
  • 25 $4.0092
  • 100 $3.3201
  • 250 $2.9819
  • 500 $2.8000
  • 1,000 $2.2100
$2.2100 / $6.9500 Buy Now
DISTI # 35211438
Verical Dual Transmitter/Receiver RS-232 20-Pin SSOP T/R Min Qty: 500 Package Multiple: 500 Americas - 2000
  • 500 $3.2000
$3.2000 Buy Now
DISTI # ADM1385ARSZ-REEL7
TME IC: interface, transceiver, full duplex,RS232, 460kbps, SSOP20 Min Qty: 1 0
  • 1 $12.6000
  • 5 $11.3000
  • 25 $10.0000
  • 100 $9.0000
  • 500 $8.4800
$8.4800 / $12.6000 RFQ
Vyrian Interface ICs 562
RFQ
Win Source Electronics Low Power, 3.3 V, RS-232 Line Drivers/Receivers | IC TXRX RS-232 3.3V HS 20SSOP 8600
  • 11 $4.7523
  • 26 $3.8994
  • 40 $3.7775
  • 55 $3.6557
  • 71 $3.5338
  • 95 $3.1682
$3.1682 / $4.7523 Buy Now

Part Details for ADM1385ARSZ-REEL7

ADM1385ARSZ-REEL7 CAD Models

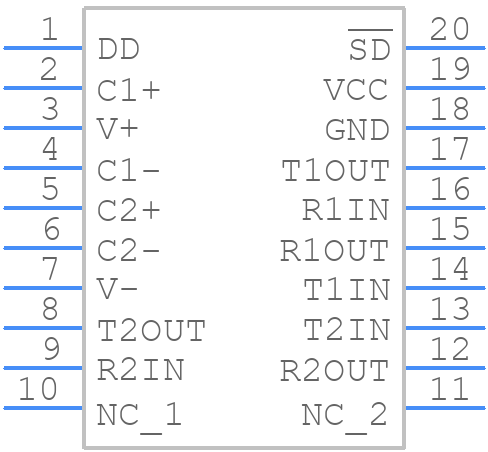

  • Part Symbol

    Part Symbol

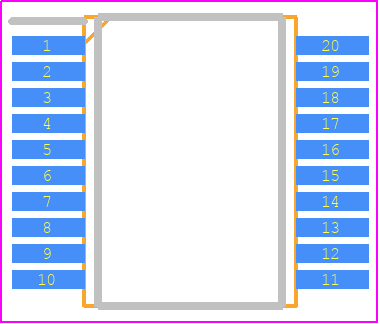

  • Footprint

    footprint

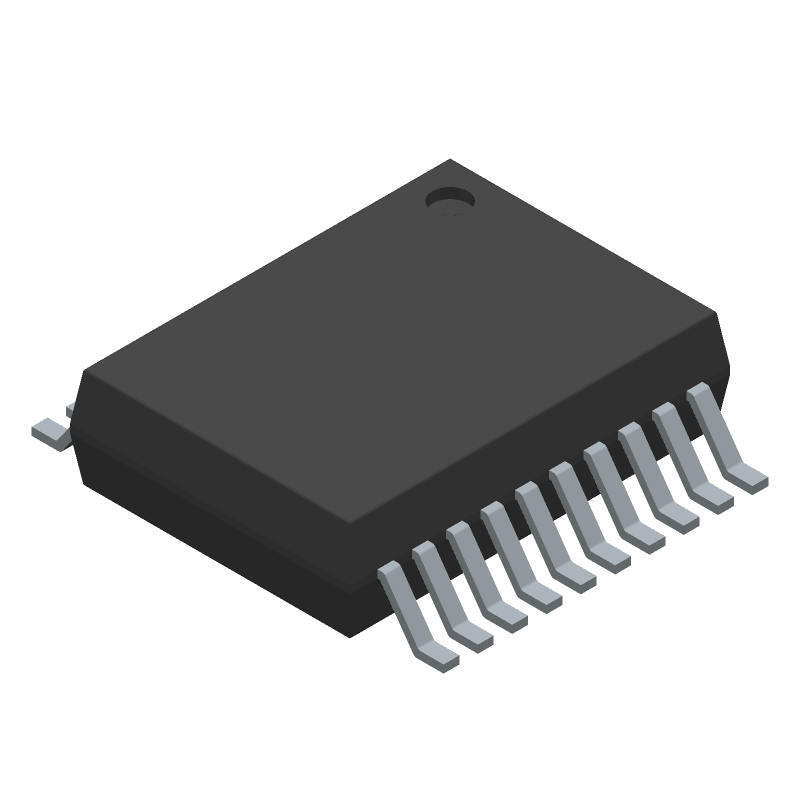

  • 3D Model
