SS310 by:

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN

Part Details for SS310 by Taiwan Semiconductor

Overview of SS310 by Taiwan Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for SS310

Part # Distributor Description Stock Price Buy
DISTI # 99AC4449
Newark Schottky Rectifier, 3A, 100V, Do-214Ab, Repetitive Reverse Voltage Vrrm Max:100V, Forward Current If(Av):3A, Diode Configuration:Single, Diode Case Style:Do-214Ab, No. Of Pins:2Pins, Forward Voltage Vf Max:850Mv, Forward Surge Rohs Compliant: Yes |Taiwan Semiconductor SS310 Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 6335
  • 1 $0.2770
$0.2770 Buy Now
DISTI # 86AK8774
Newark Schottky Rectifier, 100V, 3A, Do-214Ab Rohs Compliant: Yes |Taiwan Semiconductor SS310 Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 3,000 $0.1710
  • 6,000 $0.1510
  • 12,000 $0.1370
  • 18,000 $0.1270
  • 30,000 $0.1180
$0.1180 / $0.1710 Buy Now
DISTI # 1801-SS310CT-ND
DigiKey DIODE SCHOTTKY 100V 3A DO214AB Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5833
In Stock
  • 1 $0.4400
  • 10 $0.3440
  • 100 $0.2062
  • 500 $0.1909
  • 1,000 $0.1298
  • 3,000 $0.1195
  • 6,000 $0.1145
  • 9,000 $0.1031
  • 30,000 $0.1016
  • 75,000 $0.0954
$0.0954 / $0.4400 Buy Now
DISTI # SS310
Avnet Americas Diode Schottky 100V 3A 2-Pin DO-214AB T/R - Tape and Reel (Alt: SS310) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.0653
  • 6,000 $0.0635
  • 12,000 $0.0626
  • 18,000 $0.0617
  • 24,000 $0.0599
$0.0599 / $0.0653 Buy Now
DISTI # 821-SS310
Mouser Electronics Schottky Diodes & Rectifiers 3A, 100V, Schottky Rectifier RoHS: Compliant 6447
  • 1 $0.4300
  • 10 $0.3440
  • 100 $0.2070
  • 500 $0.1910
  • 1,000 $0.1300
  • 3,000 $0.1140
  • 9,000 $0.1030
  • 24,000 $0.1010
  • 45,000 $0.0950
$0.0950 / $0.4300 Buy Now
Future Electronics 3A, 100V, Schottky Rectifier RoHS: Non Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Container: Reel 0
Reel
  • 3,000 $0.1010
  • 6,000 $0.0985
  • 12,000 $0.0961
  • 15,000 $0.0953
  • 45,000 $0.0905
$0.0905 / $0.1010 Buy Now
DISTI # SS310-TSC
TME Diode: Schottky rectifying, SMD, 100V, 3A, SMC, reel,tape Min Qty: 5 3025
  • 5 $0.1650
  • 25 $0.1290
  • 100 $0.1150
  • 500 $0.1030
  • 3,000 $0.0960
  • 9,000 $0.0920
$0.0920 / $0.1650 Buy Now
DISTI # SS310
Avnet Asia Diode Schottky 100V 3A 2-Pin DO-214AB T/R (Alt: SS310) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days 0
  • 3,000 $0.0995
  • 6,000 $0.0982
  • 9,000 $0.0969
  • 15,000 $0.0957
  • 30,000 $0.0933
  • 75,000 $0.0911
  • 150,000 $0.0889
$0.0889 / $0.0995 Buy Now
DISTI # SS310
EBV Elektronik Diode Schottky 100V 3A 2-Pin DO-214AB T/R (Alt: SS310) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

Part Details for SS310

SS310 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

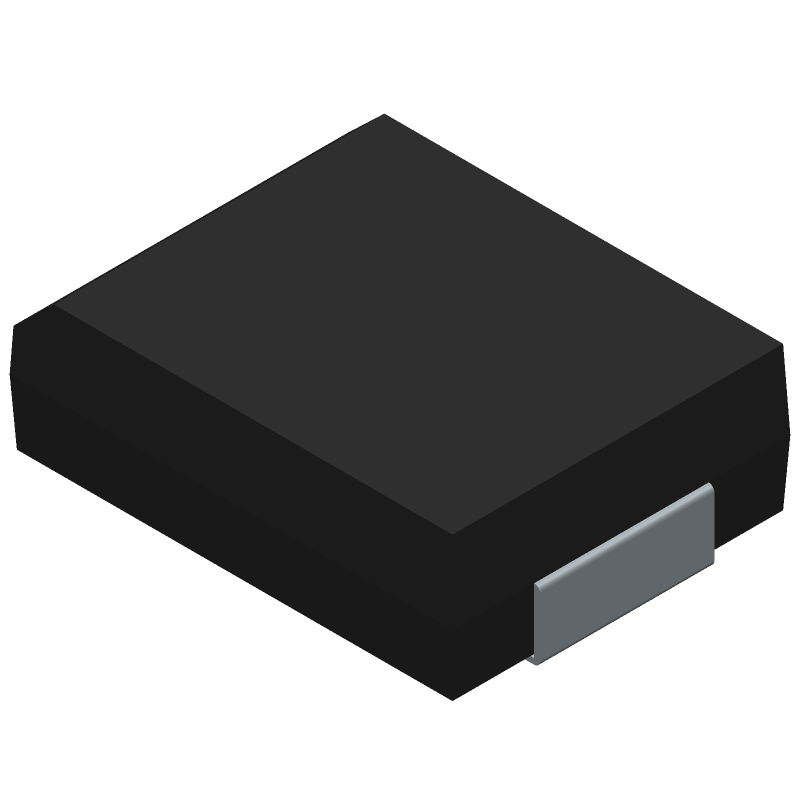

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SS310 Part Data Attributes:

Parametric Data
SS310 Taiwan Semiconductor
Buy Now Datasheet
Compare Parts:
SS310 Taiwan Semiconductor Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIWAN SEMICONDUCTOR CO LTD
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 8 Weeks
Samacsys Manufacturer Taiwan Semiconductor
Additional Feature LOW POWER LOSS
Application EFFICIENCY
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.79 V
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 70 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 3 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 100 V
Surface Mount YES
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SS310

This table gives cross-reference parts and alternative options found for SS310. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SS310, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
SS310R6 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310R6
SS310HR6 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310HR6
SS310HR7G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310HR7G
SS310 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Fairchild Semiconductor Corporation SS310 vs SS310
SS310 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AC, SMAJ, 2 PIN Micro Commercial Components SS310 vs SS310
SS310R6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310R6G
B3100Q-13-F Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMC, 2 PIN Diodes Incorporated SS310 vs B3100Q-13-F
SS310M6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310M6G
SS310HR6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310HR6G
SS310G Rectifier Diode, Taiwan Semiconductor SS310 vs SS310G
Part Number Description Manufacturer Compare
B3100-7 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, PLASTIC, SMC, 2 PIN Diodes Incorporated SS310 vs B3100-7
SS310R6 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310R6
B3100 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, PLASTIC, SMC, 2 PIN WEITRON INTERNATIONAL CO., LTD. SS310 vs B3100
SS310 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AC, SMAJ, 2 PIN Micro Commercial Components SS310 vs SS310
SS310R6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310R6G
SS310HM6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310HM6G
SS310HR6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310HR6G
SS310 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN Fairchild Semiconductor Corporation SS310 vs SS310
SS310M6G Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN Taiwan Semiconductor SS310 vs SS310M6G
B3100CE-13 Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMC, 2 PIN Diodes Incorporated SS310 vs B3100CE-13
