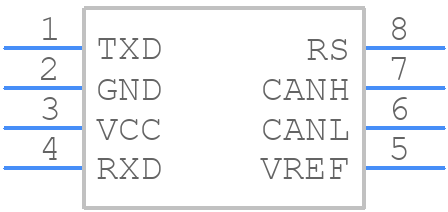

Part Symbol
-
Footprint
-

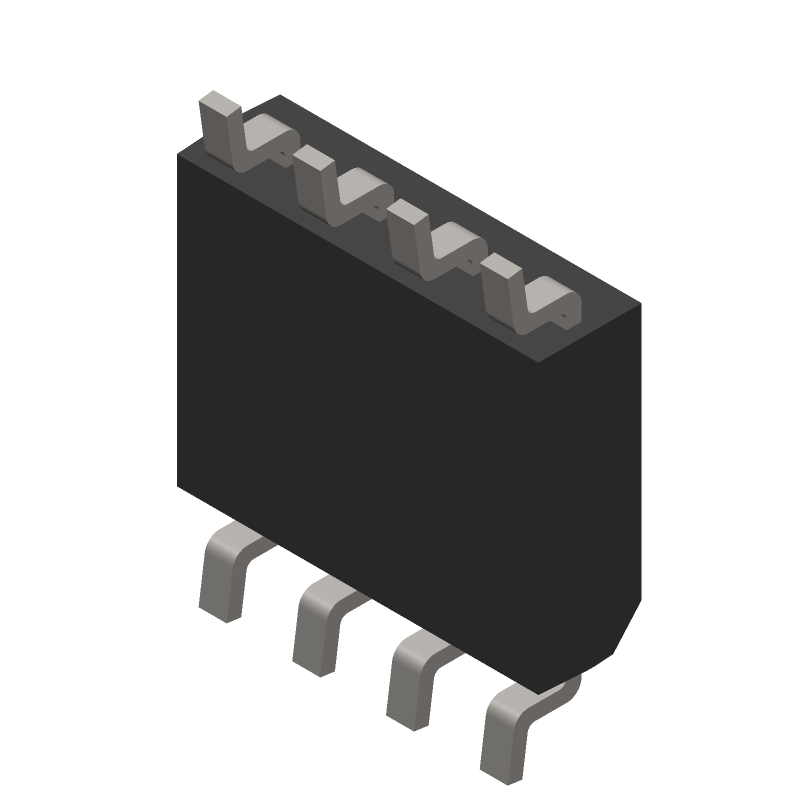

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCA82C251T/YM,118 by NXP Semiconductors
Overview of PCA82C251T/YM,118 by NXP Semiconductors
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (9 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for PCA82C251T/YM,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61T7718
|
Newark | Can Transceiver, 1Mbps, 1/1, 5.5V, 8-Soic, Ic Interface Type:Can, No. Of Tx Buffers:1, No. Of Rx Buffers:1, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Interface Case Style:Soic, No. Of Pins:8Pins, Product Range:- Rohs Compliant: Yes |Nxp PCA82C251T/YM,118 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 173315 |
|
$1.6100 / $1.9000 | Buy Now |
|
DISTI #
99R2931
|
Newark | Can Bus, Transceiver, Serial, 1, 1, 4.5 V, 5.5 V, Soic Rohs Compliant: Yes |Nxp PCA82C251T/YM,118 Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.2900 / $1.7300 | Buy Now |
|
DISTI #
568-8673-1-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SO Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
32052 In Stock |
|
$1.3277 / $2.7500 | Buy Now |
|
DISTI #
PCA82C251T/YM,118
|
Avnet Americas | CAN 1MBd Standby 5V 8-Pin SO T/R - Tape and Reel (Alt: PCA82C251T/YM,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$1.2529 / $1.4378 | Buy Now |
|
DISTI #
61T7718
|
Avnet Americas | CAN 1MBd Standby 5V 8-Pin SO T/R - Product that comes on tape, but is not reeled (Alt: 61T7718) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack | 15150 Partner Stock |
|
$2.0600 / $2.7800 | Buy Now |
|
DISTI #
771-PCA82C251T/YM118
|
Mouser Electronics | CAN Interface IC CAN Xceive 275uA 5V RoHS: Compliant | 321059 |
|
$1.3200 / $2.6200 | Buy Now |
|
|
Future Electronics | PCA82C251 Series 5.5V 1 MBd SMT CAN transceiver for 24V System - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel | 110000Reel |
|
$1.3400 | Buy Now |
|
|
Future Electronics | PCA82C251 Series 5.5V 1 MBd SMT CAN transceiver for 24V System - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel | 0Reel |
|
$1.3400 | Buy Now |
|
DISTI #
79933672
|
Verical | CAN 1MBd Standby 5V Automotive 8-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2412 | Americas - 27500 |
|
$1.3035 / $1.3311 | Buy Now |
|
DISTI #
62300218
|
Verical | CAN 1MBd Standby 5V Automotive 8-Pin SO T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 2225 | Americas - 3669 |
|
$1.4750 / $2.1125 | Buy Now |
Part Details for PCA82C251T/YM,118
PCA82C251T/YM,118 CAD Models
PCA82C251T/YM,118 Part Data Attributes:
|
|
PCA82C251T/YM,118
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
PCA82C251T/YM,118
NXP Semiconductors
PCA82C251 - CAN transceiver for 24 V systems SOIC 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3.90 MM, ROHS COMPLIANT, PLASTIC, MS-012, SOT96-1, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT96-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 17 Weeks, 3 Days | |
| Samacsys Manufacturer | NXP | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for PCA82C251T/YM,118
This table gives cross-reference parts and alternative options found for PCA82C251T/YM,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCA82C251T/YM,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| MCP2551T-I/SN | DATACOM, INTERFACE CIRCUIT, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOIC-8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551T-I/SN |
| 935288885118 | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface | NXP Semiconductors | PCA82C251T/YM,118 vs 935288885118 |
| MCP2551-I/SN | DATACOM, INTERFACE CIRCUIT, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOIC-8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551-I/SN |
| MCP2551-I/SNVAO | Interface Circuit, PDSO8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551-I/SNVAO |
| MCP2551T-I/SNG | DATACOM, INTERFACE CIRCUIT, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOIC-8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551T-I/SNG |
| MCP2551-E/SNVAO | Interface Circuit, PDSO8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551-E/SNVAO |
| 935288885112 | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface | NXP Semiconductors | PCA82C251T/YM,118 vs 935288885112 |
| MCP2551T-I/SNVAO | Interface Circuit, PDSO8 | Microchip Technology Inc | PCA82C251T/YM,118 vs MCP2551T-I/SNVAO |
| PCA82C251T/YM,112 | PCA82C251 - CAN transceiver for 24 V systems SOIC 8-Pin | NXP Semiconductors | PCA82C251T/YM,118 vs PCA82C251T/YM,112 |
