Drivers And Interfaces MOSFET Drivers MAX17601ASA+

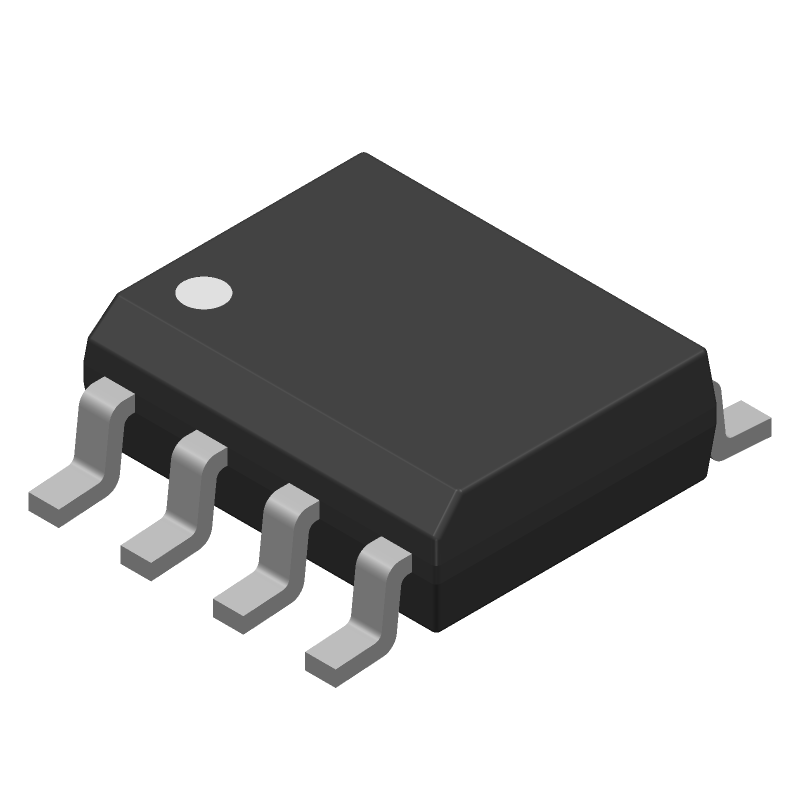

MAX17601ASA+
Description: 4A Sink/Source Current, 12ns, Dual MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C

Overview of MAX17601ASA+ by Analog Devices Inc

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

Price & Stock for MAX17601ASA+ by Analog Devices Inc

Part # Manufacturer Description Stock Price Buy
DISTI # 700-MAX17601ASA+
Mouser Electronics Gate Drivers 4A Sink/Source Current, 12ns, Dual MOSFE RoHS: Compliant 2132
  • 1 $2.8500
  • 10 $1.9400
  • 100 $1.5800
  • 200 $1.4100
  • 500 $1.3000
  • 1,000 $1.2100
  • 2,000 $1.1700
$1.1700 / $2.8500 Buy Now
Analog Devices Inc 4A Sink/Source Current, 12ns, Package Multiple: 1 24904
  • 1 $3.3900
  • 10 $2.2190
  • 25 $1.9120
  • 100 $1.5668
  • 500 $1.2964
  • 1,000 $1.2113
  • 2,500 $1.1204
  • 5,000 $1.0651
$1.0651 / $3.3900 Buy Now

CAD Models for MAX17601ASA+ by Analog Devices Inc
You need to Sign In or Sign Up to download CAD models.

  • Part Symbol
    Part Symbol
  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for MAX17601ASA+ by Analog Devices Inc
Parametric Data

MAX17601ASA+
Analog Devices Inc
Buy Now
-
-
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
ANALOG DEVICES INC
Part Package Code
8-SOIC_N-150_MIL
Package Description
SOP-8
Pin Count
8
Manufacturer Package Code
8-SOIC_N-150_MIL
Reach Compliance Code
compliant
Date Of Intro
2012-01-20
Samacsys Manufacturer
Analog Devices
High Side Driver
YES
Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code
R-PDSO-G8
JESD-609 Code
e3
Length
4.9 mm
Moisture Sensitivity Level
1
Number of Functions
2
Number of Terminals
8
Operating Temperature-Max
125 °C
Operating Temperature-Min
-40 °C
Output Peak Current Limit-Nom
4 A
Package Body Material
PLASTIC/EPOXY
Package Code
SOP
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE
Peak Reflow Temperature (Cel)
260
Seated Height-Max
1.75 mm
Supply Voltage-Max
14 V
Supply Voltage-Min
4 V
Supply Voltage-Nom
12 V
Surface Mount
YES
Technology
BICMOS
Temperature Grade
AUTOMOTIVE
Terminal Finish
Matte Tin (Sn)
Terminal Form
GULL WING
Terminal Pitch
1.27 mm
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
30
Width
3.9 mm
Want to compare parts?
  1. MAX17601ASA+
    Analog Devices Inc
    4A Sink/Source Current, 12ns, Dual MOSFET Drivers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C
    VS

Alternate Parts for MAX17601ASA+
