LT1054IP
Texas Instruments
Description: 3.5 V to 15 VIN, 100-mA output current switched-capacitor voltage converters with regulator 8-PDIP -40 to 85

Overview of LT1054IP by Texas Instruments

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Automotive

Price & Stock for LT1054IP by Texas Instruments

Part # Manufacturer Description Stock Price Buy
DISTI # 33AH4329
Newark Dc-Dc Conv, Switched-Capacitor, Dip-8, Output Type:Fixed, Input Voltage Min:3.5V, Input Voltage Max:15V, Dc/Dc Converter Ic Case:Dip, No. Of Pins:8Pins, Output Current:100Ma, Fixed Output Voltage Nom.:-5V, Adjustable Output Voltagerohs Compliant: Yes |TEXAS INSTRUMENTS LT1054IP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $3.0300
  • 10 $2.8000
  • 25 $2.6200
  • 50 $2.5000
  • 100 $2.3500
  • 250 $2.2400
  • 500 $2.2000
$2.2000 / $3.0300 Buy Now
DISTI # 296-17596-5-ND
DigiKey IC REG CHARG PUMP INV 100MA 8DIP Min Qty: 1 Lead time: 12 Weeks Container: Tube 7668
In Stock
  • 1 $2.6600
  • 10 $1.9360
  • 50 $1.6612
$1.6612 / $2.6600 Buy Now
DISTI # 595-LT1054IP
Mouser Electronics Switching Voltage Regulators Switched-Capacitor Voltage Converter RoHS: Compliant 20212
  • 1 $2.5000
  • 10 $2.1200
  • 100 $1.8200
  • 250 $1.7400
  • 500 $1.6600
$1.6600 / $2.5000 Buy Now
DISTI # 80016583
Verical Charge Pump INV/STPUP -5V 100mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2316 Americas - 180
  • 4 $2.4820
$2.4820 Buy Now
Rochester Electronics LT1054 Switched-Capacitor Voltage Converters With Regulator RoHS: Compliant Status: Active Min Qty: 1 4
  • 1 $1.9400
  • 25 $1.9000
  • 100 $1.8200
  • 500 $1.7400
  • 1,000 $1.6500
$1.6500 / $1.9400 Buy Now
DISTI # LT1054IP
TME PMIC, DC/DC converter, Uin: 3.5÷15VDC, 100mA, DIP8, Ch: 1, -40÷85°C Min Qty: 1 34
  • 1 $3.5700
  • 3 $3.3500
  • 10 $2.8600
  • 50 $2.2900
$2.2900 / $3.5700 Buy Now
DISTI # C1S746204810219
Chip1Stop Other Power Management ICs RoHS: Compliant pbFree: Yes 185
  • 1 $2.4820
  • 10 $2.0900
  • 100 $1.7800
$1.7800 / $2.4820 Buy Now

CAD Models for LT1054IP by Texas Instruments
You need to Sign In or Sign Up to download CAD models.

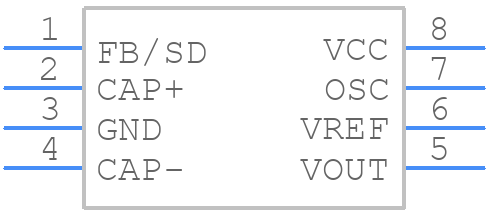

  • Part Symbol
    Part Symbol
  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for LT1054IP by Texas Instruments
Parametric Data

LT1054IP
Texas Instruments
Buy Now
-
-
Pbfree Code
Yes
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
TEXAS INSTRUMENTS INC
Part Package Code
DIP
Package Description
DIP-8
Pin Count
8
Reach Compliance Code
compliant
ECCN Code
EAR99
HTS Code
8542.39.00.01
Samacsys Manufacturer
Texas Instruments
Analog IC - Other Type
SWITCHED CAPACITOR REGULATOR
Input Voltage-Max
15 V
Input Voltage-Min
3.5 V
Input Voltage-Nom
7 V
JESD-30 Code
R-PDIP-T8
JESD-609 Code
e4
Length
9.81 mm
Number of Functions
1
Number of Outputs
1
Number of Terminals
8
Operating Temperature-Max
85 °C
Operating Temperature-Min
-40 °C
Output Current-Max
0.1 A
Output Voltage-Max
-15 V
Output Voltage-Min
-1.25 V
Output Voltage-Nom
-5 V
Package Body Material
PLASTIC/EPOXY
Package Code
DIP
Package Equivalence Code
DIP8,.3
Package Shape
RECTANGULAR
Package Style
IN-LINE
Qualification Status
Not Qualified
Seated Height-Max
5.08 mm
Supply Current-Max (Isup)
4.5 mA
Surface Mount
NO
Switcher Configuration
DOUBLER INVERTER
Switching Frequency-Max
100 kHz
Technology
BIPOLAR
Temperature Grade
INDUSTRIAL
Terminal Finish
NICKEL PALLADIUM GOLD
Terminal Form
THROUGH-HOLE
Terminal Pitch
2.54 mm
Terminal Position
DUAL
Width
7.62 mm
