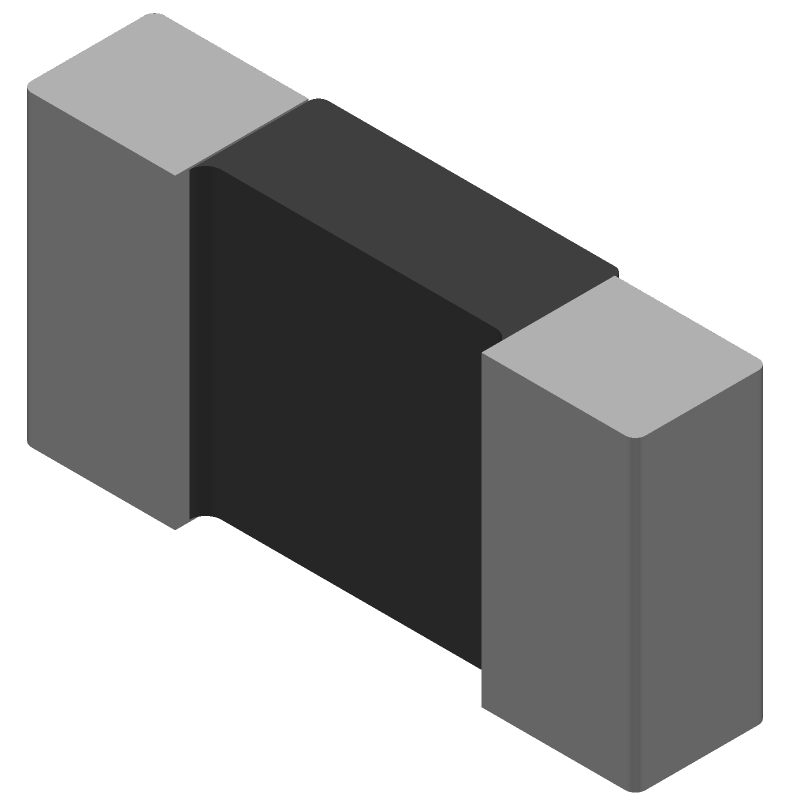

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL0603R0400FEK by Vishay Intertechnologies
Results Overview of WSL0603R0400FEK by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL0603R0400FEK Information
WSL0603R0400FEK by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL0603R0400FEK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL0603R0400FEK
|
Avnet Americas | WSL-0603 .04 1% EK e3 - Bulk (Alt: WSL0603R0400FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4313 / $0.4520 | Buy Now |
|
DISTI #
71-WSL0603R0400FEK
|
Mouser Electronics | Current Sense Resistors - SMD WSL-0603 .04 1% EK e3 RoHS: Compliant | 0 |
|
$0.4300 | Order Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks | 0 |
|
$0.4730 / $0.5140 | Buy Now |
|
DISTI #
WSL0603R0400FEK
|
Avnet Abacus | WSL0603 04 1 EK e3 (Alt: WSL0603R0400FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSL0603R0400FEK
WSL0603R0400FEK CAD Models
WSL0603R0400FEK Part Data Attributes
|
|
WSL0603R0400FEK
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL0603R0400FEK
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 0.1W, 0.04ohm, 0.0632V, 1% +/-Tol, 110ppm/Cel, Surface Mount, 0603, CHIP
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.406 mm | |
| Package Length | 1.52 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.76 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.04 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 110 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.0632 V |
