W2F11A4718AT1F by: Kyocera AVX Components

Feed Through Capacitor, 1 Function(s), 100V, 0.3A, EIA STD PACKAGE SIZE 0805, 3 PIN

Part Details for W2F11A4718AT1F by Kyocera AVX Components

Results Overview of W2F11A4718AT1F by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

W2F11A4718AT1F Information

W2F11A4718AT1F by Kyocera AVX Components is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.

A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.

Price & Stock for W2F11A4718AT1F

Part # Distributor Description Stock Price Buy
DISTI # 52R6876
Newark Multilayer Ceramic Capacitor, W2F Series, 470 Pf, +50%, -20%, C0G/Np0, 100 V Rohs Compliant: Yes |Ky... ocera Avx W2F11A4718AT1F more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 456
  • 1 $0.4200
  • 10 $0.2820
  • 25 $0.2500
  • 50 $0.2170
  • 100 $0.1850
  • 250 $0.1700
  • 500 $0.1550
$0.1550 / $0.4200 Buy Now
DISTI # 66AH7472
Newark Cap, 470Pf, 100V, C0G, 0805 Rohs Compliant: Yes |Kyocera Avx W2F11A4718AT1F RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1,000 $0.1310
  • 2,000 $0.1220
  • 4,000 $0.1160
  • 6,000 $0.1120
  • 10,000 $0.1110
$0.1110 / $0.1310 Buy Now
DISTI # 478-2233-1-ND
DigiKey CAP FEEDTHRU 470PF 100V 0805 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4881
In Stock
  • 1 $0.4600
  • 10 $0.2780
  • 100 $0.1859
  • 1,000 $0.1406
  • 2,000 $0.1194
  • 3,000 $0.1156
  • 5,000 $0.1149
  • 7,000 $0.1145
  • 10,000 $0.1110
  • 25,000 $0.1008
  • 50,000 $0.0992
  • 100,000 $0.0894
$0.0894 / $0.4600 Buy Now
DISTI # W2F11A4718AT1F
Avnet Americas Cap Ceramic 470pF 100V C0G -20% to 50% SMD 0805 125?C Embossed T/R - Tape and Reel (Alt: W2F11A4718A... T1F) more RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.0908
  • 2,000 $0.0894
  • 4,000 $0.0880
  • 6,000 $0.0865
  • 8,000 $0.0851
$0.0851 / $0.0908 Buy Now
DISTI # 581-W2F11A4718AT1F
Mouser Electronics Feed Through Capacitors 100V 470pF NP0 0805 RoHS: Compliant 6997
  • 1 $0.4700
  • 10 $0.2840
  • 100 $0.1900
  • 500 $0.1770
  • 1,000 $0.1390
  • 2,000 $0.1140
  • 10,000 $0.1110
  • 25,000 $0.1000
  • 50,000 $0.0990
$0.0990 / $0.4700 Buy Now
DISTI # V79:2366_26387764
Arrow Electronics Cap Feed Through 470pF 100VDC C0G -20% to 50% Pad Flat 0805 125°C Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Date Code: 1707 Americas - 1
  • 1 $0.1452
$0.1452 Buy Now
DISTI # 70195616
RS Capacitor, Ceramic, 470 pF, 100 V, 300 mA, +50%, -20%, 0805, NP0 < 0.6 Ohms Min Qty: 3000 Package Multiple: 1 Container: Bulk 0
  • 3,000 $0.1550
  • 150,000 $0.1510
$0.1510 / $0.1550 RFQ
Quest Components   253
  • 1 $0.7440
  • 18 $0.3348
  • 150 $0.2232
$0.2232 / $0.7440 Buy Now
DISTI # W2F11A4718AT1F
TTI Feed Through Capacitors 100V 470pF NP0 0805 RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 103000
In Stock
  • 1,000 $0.1380
  • 2,000 $0.1130
  • 3,000 $0.1110
  • 5,000 $0.1080
  • 10,000 $0.1060
  • 25,000 $0.0990
$0.0990 / $0.1380 Buy Now
DISTI # W2F11A4718AT1F
Avnet Abacus Cap Ceramic 470pF 100V C0G 20 to 50 SMD 0805 125C Embossed TR - Tape and Reel (Alt: W2F11A4718AT1F) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for W2F11A4718AT1F

W2F11A4718AT1F CAD Models

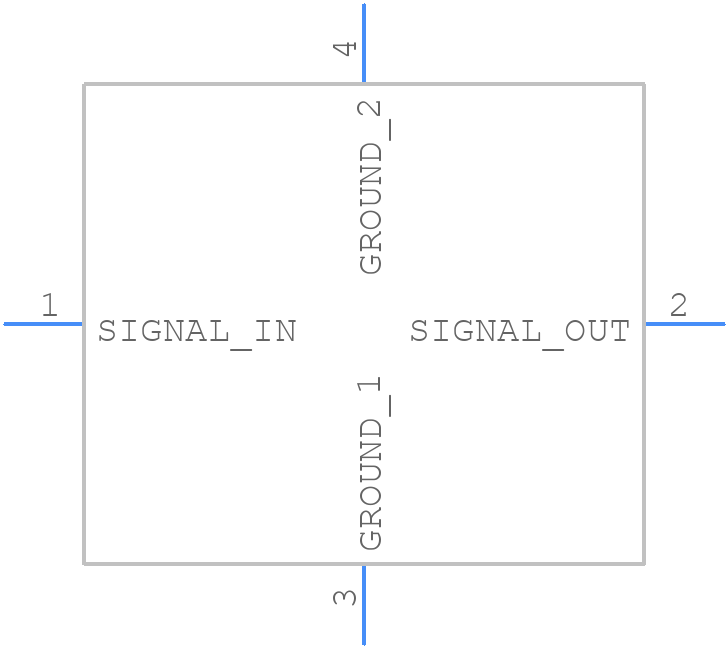

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

W2F11A4718AT1F Part Data Attributes

Parametric Data
W2F11A4718AT1F Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
W2F11A4718AT1F Kyocera AVX Components Feed Through Capacitor, 1 Function(s), 100V, 0.3A, EIA STD PACKAGE SIZE 0805, 3 PIN
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 18 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature PLATED TERMINATION
Capacitance 470 µF
DC Resistance-Max 0.6 Ω
Filter Type FEED THROUGH CAPACITOR
Height 1.14 mm
Insulation Resistance-Min 1000 MΩ
JESD-609 Code e3
Length 2.01 mm
Mounting Type SURFACE MOUNT
Number of Functions 1
Number of Terminals 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Packing Method TAPE AND REEL
Rated Current 0.3 A
Rated Voltage 100 V
Terminal Finish TIN OVER NICKEL
Width 1.25 mm

W2F11A4718AT1F Related Parts
