Power Circuits / Power Supply Modules / VQB75W-Q24-S12
Datasheets
VQB75W-Q24-S12 by:
CUI Inc
Bel Fuse
CUI Inc
V-Infinity LLC
Not Found

12 Vdc, 6.25 A, 75 W, 9~36 Vdc Input Range

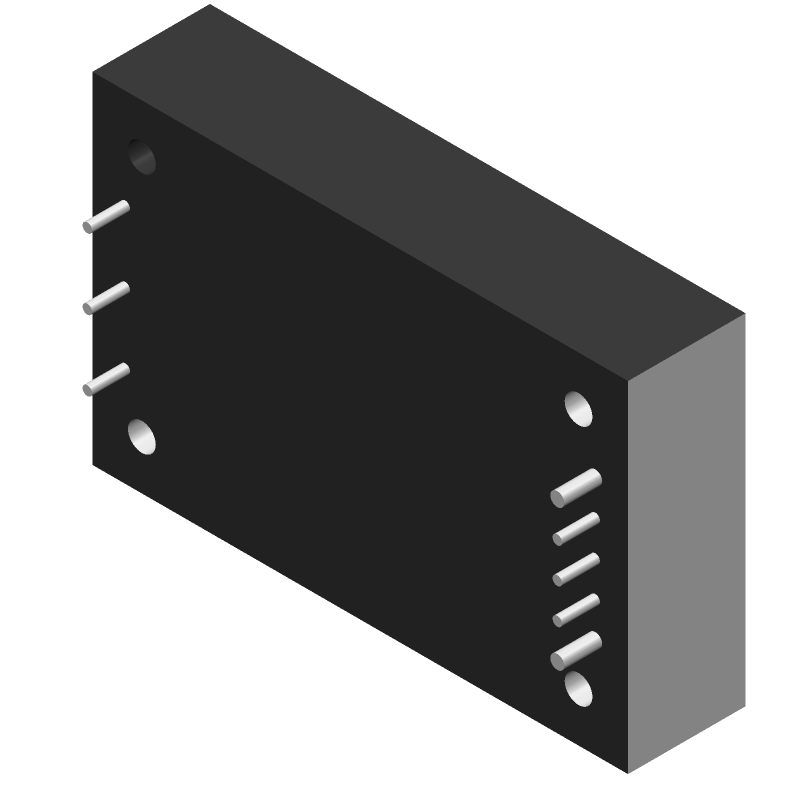

Part Details for VQB75W-Q24-S12 by CUI Inc

Results Overview of VQB75W-Q24-S12 by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

VQB75W-Q24-S12 Information

VQB75W-Q24-S12 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for VQB75W-Q24-S12

Part # Distributor Description Stock Price Buy
DISTI # VQB75W-Q24-S12-ND
DigiKey DC DC CONVERTER 12V 75W Min Qty: 15 Lead time: 29 Weeks Container: Tray Temporarily Out of Stock
  • 15 $136.9893
$136.9893 Buy Now
DISTI # 490-VQB75W-Q24-S12
Mouser Electronics Isolated DC/DC Converters - Through Hole dc-dc isolated, 75 W, 9-36 Vdc input, 12 Vdc, 6.25 A, singl... e output, DIP more 0
  • 15 $136.9900
  • 30 $136.9800
$136.9800 / $136.9900 Order Now
Onlinecomponents.com 75 W, 4:1 Input Range, Single Regulated Output, 1/4 Brick, 1500 Vdc Isolation, Dc-Dc Converter - 12 ... Vdc, 6.25 A, 75 W, 9~36 Vdc Input Range more RoHS: Compliant 0
  • 4 $228.9100
  • 8 $140.8700
  • 12 $111.5200
  • 15 $109.2900
$109.2900 / $228.9100 Buy Now
DISTI # 000000000006368033
Sager Isolated DC/DC Converters - Through Hole dc-dc isolated, 75 W, 9-36 Vdc input, 12 Vdc, 6.25 A, singl... e output, DIP more Min Qty: 1 0
  • 1 $156.5200
  • 10 $146.7300
  • 20 $140.1600
  • 100 $134.1600
$134.1600 / $156.5200 Buy Now

Part Details for VQB75W-Q24-S12

VQB75W-Q24-S12 Part Data Attributes

Parametric Data
VQB75W-Q24-S12 CUI Inc
Buy Now Datasheet
Compare Parts:
VQB75W-Q24-S12 CUI Inc 12 Vdc, 6.25 A, 75 W, 9~36 Vdc Input Range
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CUI INC
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Analog IC - Other Type AC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 36 V
Input Voltage-Min 9 V
Input Voltage-Nom 24 V
Length 57.9 mm
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Output Current-Max 6.25 A
Output Voltage-Max 13.2 V
Output Voltage-Min 10.8 V
Output Voltage-Nom 12 V
Package Body Material METAL
Package Equivalence Code DIP8/10,1.9,150
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Surface Mount NO
Temperature Grade INDUSTRIAL
Terminal Form PIN/PEG
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 75 W
Width 36.8 mm

Alternate Parts for VQB75W-Q24-S12

This table gives cross-reference parts and alternative options found for VQB75W-Q24-S12. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VQB75W-Q24-S12, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HBS075YH-A1H Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-A1H
HBS075YH-A91H Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-A91H
HBS075YH-AN9 Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-AN9
HBS075YH-ANT3H Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-ANT3H
HBS075YH-ANT Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-ANT
LPD150-024-12-PM-075 Natel Engineering Company Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs LPD150-024-12-PM-075
VI-LC11-IX Vicor Corporation Check for Price DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-10 VQB75W-Q24-S12 vs VI-LC11-IX
HBS075YH-A2H Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-A2H
HBS075YH-ANT2H Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-ANT2H
HBS075YH-ANT82V Bel Power Solutions Check for Price DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid VQB75W-Q24-S12 vs HBS075YH-ANT82V

VQB75W-Q24-S12 Related Parts

VQB75W-Q24-S12 Frequently Asked Questions (FAQ)

  • The operating temperature range for the VQB75W-Q24-S12 is -40°C to +85°C, with a storage temperature range of -40°C to +125°C.

  • Yes, the VQB75W-Q24-S12 is compliant with UL60950-1, EN60950-1, and IEC60950-1 safety standards.

  • The maximum capacitance tolerance for the VQB75W-Q24-S12 is ±10%.

  • Yes, the VQB75W-Q24-S12 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 1.5 mm amplitude.

  • The recommended soldering temperature is 260°C, with a maximum soldering time of 5 seconds.
