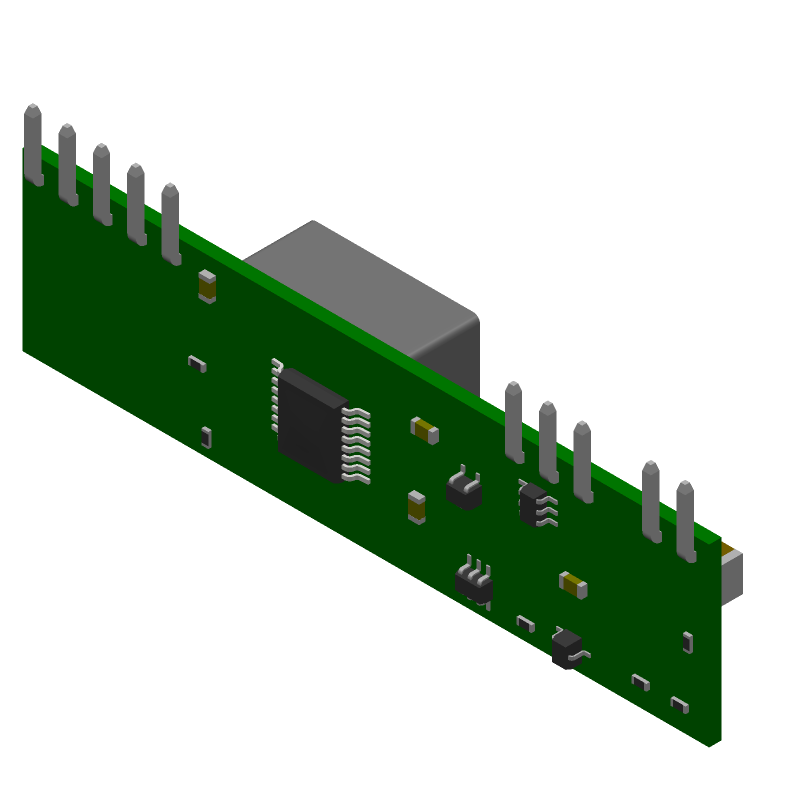

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VPOL16A-12-SIP by CUI Inc
Results Overview of VPOL16A-12-SIP by CUI Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VPOL16A-12-SIP Information
VPOL16A-12-SIP by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PTV05020WAH | Texas Instruments | 18-A, 5-V Input, Non-Isolated Wide-Adjust SIP Module 12-SIP MODULE -40 to 85 | |
| PTV12010LAH | Texas Instruments | 0.8 to 1.8-V 8-A, 12-V Input Non-Isolated Wide-Adjust SIP Module 8-SIP MODULE -40 to 85 | |
| PTV12010LAD | Texas Instruments | 0.8 to 1.8-V 8-A, 12-V Input Non-Isolated Wide-Adjust SIP Module 8-SIP MODULE -40 to 85 |
Price & Stock for VPOL16A-12-SIP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
490-VPOL16A-12-SIP
|
Mouser Electronics | Non-Isolated DC/DC Converters dc-dc non-isolated, 16 A, 9-14 Vdc input, 0.75-5 Vdc output, SIP RoHS: Compliant | 0 |
|
$28.6200 | Order Now |
|
|
Onlinecomponents.com | 16 A Output Current, 9~14 Vdc Input, SIP, Non-Isolated, Dc-Dc Converter RoHS: Compliant |
308 Partner Stock |
|
$27.3600 / $81.2600 | Buy Now |
|
DISTI #
000000000006368017
|
Sager | Non-Isolated DC/DC Converters dc-dc non-isolated, 16 A, 9-14 Vdc input, 0.75-5 Vdc output, SIP Min Qty: 1 | 0 |
|
$30.0000 / $35.0000 | Buy Now |
|
|
Master Electronics | 16 A Output Current, 9~14 Vdc Input, SIP, Non-Isolated, Dc-Dc Converter RoHS: Compliant |
308 Partner Stock |
|
$27.3600 / $81.2600 | Buy Now |
Part Details for VPOL16A-12-SIP
VPOL16A-12-SIP CAD Models
VPOL16A-12-SIP Part Data Attributes
|
|
VPOL16A-12-SIP
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
VPOL16A-12-SIP
CUI Inc
16 A Output Current, 9~14 Vdc Input, SIP, Non-Isolated, Dc-Dc Converter
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | SIP-11/10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2018-06-13 | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | WD-MAX | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 24 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XSMA-T10 | |
| Length | 50.8 mm | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Output Voltage-Max | 5 V | |
| Output Voltage-Min | 0.75 V | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Seated Height-Max | 13.25 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Total Power Output-Max | 80 W | |
| Trim/Adjustable Output | YES | |
| Width | 8.3 mm |
