Power Circuits / Power Supply Modules / VAWQ6-Q48-S3R3H
Datasheets

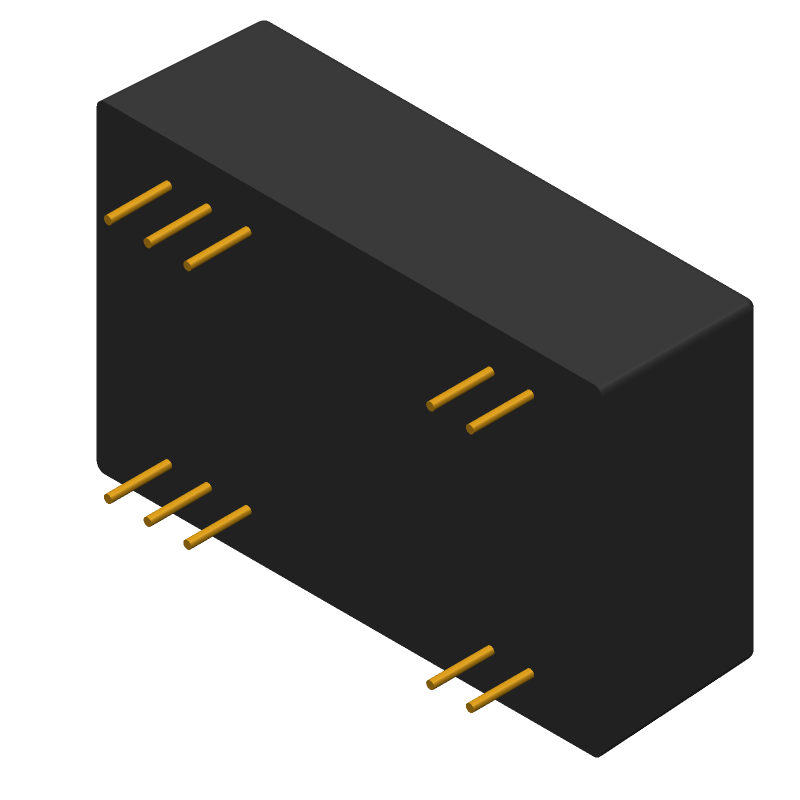

VAWQ6-Q48-S3R3H by:
CUI Inc
Bel Fuse
CUI Inc
V-Infinity LLC
Not Found

3.3 Vdc, 1 A, 3.3 W, 18~72 Vdc Input Range

Part Details for VAWQ6-Q48-S3R3H by CUI Inc

Results Overview of VAWQ6-Q48-S3R3H by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications

VAWQ6-Q48-S3R3H Information

VAWQ6-Q48-S3R3H by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for VAWQ6-Q48-S3R3H

Part # Distributor Description Stock Price Buy
DISTI # 93AJ4690
Newark Dc Dc Converter 3.3V 6W |Cui VAWQ6-Q48-S3R3H RoHS: Not Compliant Min Qty: 6 Package Multiple: 1 Date Code: 0 Container: Bulk 179
  • 5 $29.1800
  • 10 $28.4400
  • 25 $28.3800
  • 50 $28.3800
  • 100 $28.3700
  • 250 $28.3700
$28.3700 / $29.1800 Buy Now
DISTI # 2266-VAWQ6-Q48-S3R3H-ND
DigiKey DC DC CONVERTER 3.3V 6W Min Qty: 1 Lead time: 29 Weeks Container: Bulk MARKETPLACE PRODUCT 179
In Stock
  • 3 $26.5900
  • 15 $26.1100
  • 21 $24.6300
$24.6300 / $26.5900 Buy Now
DISTI # 102-1847-ND
DigiKey DC DC CONVERTER 3.3V 6W Min Qty: 1 Lead time: 29 Weeks Container: Tube 9
In Stock
  • 1 $29.7900
  • 5 $28.6820
$28.6820 / $29.7900 Buy Now
DISTI # 490-VAWQ6-Q48-S3R3H
Mouser Electronics Isolated DC/DC Converters - Through Hole dc-dc isolated, 3.3 W, 18-72 Vdc input, 3.3 Vdc, 1 A, singl... e output, DIP, 3 kVdc isolation more 0
  • 1 $29.7700
  • 5 $28.0600
  • 10 $27.3500
  • 20 $27.2900
  • 200 $27.2800
$27.2800 / $29.7700 Order Now
Onlinecomponents.com 6 W, 4:1 Input Range, Single/Dual Regulated Output, 24 Pin DIP, 3000 Vdc Isolation, Dc-Dc Converter ... - 3.3 Vdc, 1 A, 3.3 W, 18~72 Vdc Input Range more RoHS: Compliant 179 Partner Stock
  • 1 $30.6500
  • 5 $28.6700
  • 30 $25.7700
  • 50 $25.3800
  • 100 $24.3600
  • 250 $23.7000
  • 500 $23.3500
$23.3500 / $30.6500 Buy Now
DISTI # 000000000006366608
Sager Isolated DC/DC Converters - Through Hole dc-dc isolated, 3.3 W, 18-72 Vdc input, 3.3 Vdc, 1 A, singl... e output, DIP, 3 kVdc isolation more Min Qty: 1 0
  • 1 $29.0500
  • 10 $27.2300
  • 20 $26.0100
  • 100 $24.9000
$24.9000 / $29.0500 Buy Now
Master Electronics 6 W, 4:1 Input Range, Single/Dual Regulated Output, 24 Pin DIP, 3000 Vdc Isolation, Dc-Dc Converter ... - 3.3 Vdc, 1 A, 3.3 W, 18~72 Vdc Input Range more RoHS: Compliant 179 Partner Stock
  • 1 $30.6500
  • 5 $28.6700
  • 30 $25.7700
  • 50 $25.3800
  • 100 $24.3600
  • 250 $23.7000
  • 500 $23.3500
$23.3500 / $30.6500 Buy Now

Part Details for VAWQ6-Q48-S3R3H

VAWQ6-Q48-S3R3H Part Data Attributes

Parametric Data
VAWQ6-Q48-S3R3H CUI Inc
Buy Now Datasheet
Compare Parts:
VAWQ6-Q48-S3R3H CUI Inc 3.3 Vdc, 1 A, 3.3 W, 18~72 Vdc Input Range
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CUI INC
Part Package Code DIP
Pin Count 24/14
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output) 70%
Input Voltage-Max 72 V
Input Voltage-Min 18 V
Input Voltage-Nom 48 V
JESD-30 Code R-PDIP-P10
Length 31.8 mm
Line Regulation-Max 0.5%
Load Regulation-Max 0.5%
Number of Functions 1
Number of Outputs 1
Number of Terminals 10
Operating Temperature-Max 71 °C
Operating Temperature-Min -25 °C
Output Current-Max 1 A
Output Voltage-Max 3.366 V
Output Voltage-Min 3.234 V
Output Voltage-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections SHORT CIRCUIT
Ripple Voltage (Main Out) 0.03535 Vrms
Seated Height-Max 10.7 mm
Surface Mount NO
Technology HYBRID
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 3.3 W
Trim/Adjustable Output NO
Width 20.3 mm
