Amplifier Circuits / Operational Amplifiers / TSV635IPT
Datasheets
TSV635IPT by:
STMicroelectronics
Hongxing Electrical Ltd
STMicroelectronics
Not Found

Rail-to-rail input/offset 5V CMOS Op-Amps, micro-power (60uA), GBP=880kHz, quad with standby

Part Details for TSV635IPT by STMicroelectronics

Results Overview of TSV635IPT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TSV635IPT Information

TSV635IPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TSV635IPT

Part # Distributor Description Stock Price Buy
DISTI # 26R7221
Newark Opamp, 880Khz, -40 To 125Deg C, No. Of Channels:4Channels, Gain Bandwidth Product:880Khz, Supply ... Voltage Range:1.5V To 5.5V, Ic Case/Package:Tssop, No. Of Pins:16Pins, Amplifier Type:General Purpose, Input Offset Voltage:3Mv Rohs Compliant: Yes |Stmicroelectronics TSV635IPT more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 276
  • 1 $1.7500
  • 10 $1.2800
  • 25 $1.1700
  • 50 $1.1000
  • 100 $1.0400
  • 250 $0.9760
  • 500 $0.9400
  • 1,000 $0.9090
$0.9090 / $1.7500 Buy Now
DISTI # 497-9003-1-ND
DigiKey IC OPAMP GP 4 CIRCUIT 16TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.7500
  • 10 $1.2820
  • 25 $1.1656
  • 100 $1.0377
  • 250 $0.9768
  • 500 $0.9401
  • 1,000 $0.9098
  • 2,500 $0.8779
  • 5,000 $0.8587
  • 7,500 $0.8491
$0.8491 / $1.7500 Buy Now
DISTI # 26R7221
Avnet Americas OP Amp Quad GP R-R I/O 5.5V 16-Pin TSSOP T/R - Product that comes on tape, but is not reeled (Alt: 2... 6R7221) more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 4 Days Container: Ammo Pack 276 Partner Stock
RFQ
DISTI # TSV635IPT
Avnet Americas OP Amp Quad GP R-R I/O 5.5V 16-Pin TSSOP T/R - Tape and Reel (Alt: TSV635IPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.7982
  • 5,000 $0.7932
  • 10,000 $0.7785
  • 15,000 $0.7644
  • 20,000 $0.7507
$0.7507 / $0.7982 Buy Now
DISTI # 511-TSV635IPT
Mouser Electronics Precision Amplifiers 60uA 880 KHz LV Precision RR RoHS: Compliant 4814
  • 1 $1.4400
  • 10 $1.1600
  • 25 $1.1100
  • 100 $1.0400
  • 250 $0.9910
  • 500 $0.8770
  • 1,000 $0.8390
  • 2,500 $0.8380
$0.8380 / $1.4400 Buy Now
DISTI # V72:2272_06548207
Arrow Electronics Op Amp Quad Low Voltage Amplifier R-R I/O 5.5V 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2431 Container: Cut Strips Americas - 2500
  • 1 $1.1970
  • 10 $1.0114
  • 25 $0.9929
  • 100 $0.9204
  • 250 $0.8838
  • 500 $0.8313
  • 1,000 $0.8087
$0.8087 / $1.1970 Buy Now
STMicroelectronics Rail-to-rail input/offset 5V CMOS Op-Amps, micro-power (60uA), GBP=880kHz, quad with standby RoHS: Compliant Min Qty: 1 4814
  • 1 $1.4100
  • 10 $1.1400
  • 25 $1.0900
  • 100 $1.0200
  • 250 $0.9700
  • 500 $0.8600
$0.8600 / $1.4100 Buy Now
DISTI # 84377418
Verical Op Amp Quad Low Voltage Amplifier R-R I/O 5.5V 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 2431 Americas - 2500
  • 8 $1.1970
  • 10 $1.0114
  • 25 $0.9929
  • 100 $0.9204
  • 250 $0.8838
  • 500 $0.8313
  • 1,000 $0.8087
$0.8087 / $1.1970 Buy Now
Quest Components OPERATIONAL AMPLIFIER, 4 FUNC, 4500UV OFFSET-MAX, CMOS, PDSO16 8000
  • 1 $1.6033
  • 749 $0.7375
  • 1,357 $0.6734
$0.6734 / $1.6033 Buy Now
DISTI # TSV635IPT
TME IC: operational amplifier, 880kHz, Ch: 4, TSSOP16, 1.5÷5.5VDC Min Qty: 1 0
  • 1 $1.7200
  • 10 $1.5200
  • 50 $1.3900
  • 100 $1.2400
  • 250 $1.1700
  • 500 $1.1400
$1.1400 / $1.7200 RFQ
DISTI # TSV635IPT
Avnet Silica OP Amp Quad GP RR IO 55V 16Pin TSSOP TR (Alt: TSV635IPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Silica - 2500
Buy Now
DISTI # TSV635IPT
EBV Elektronik OP Amp Quad GP RR IO 55V 16Pin TSSOP TR (Alt: TSV635IPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Amplifiers 2289
RFQ

Part Details for TSV635IPT

TSV635IPT CAD Models

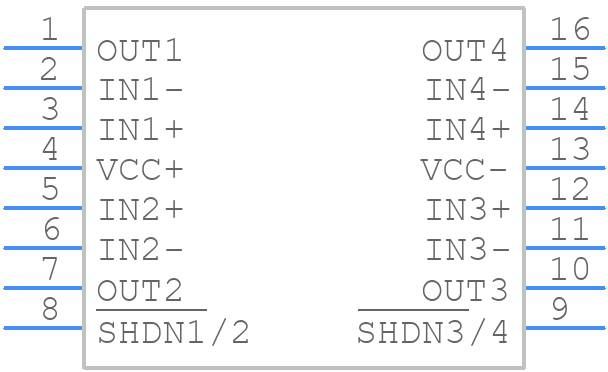

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

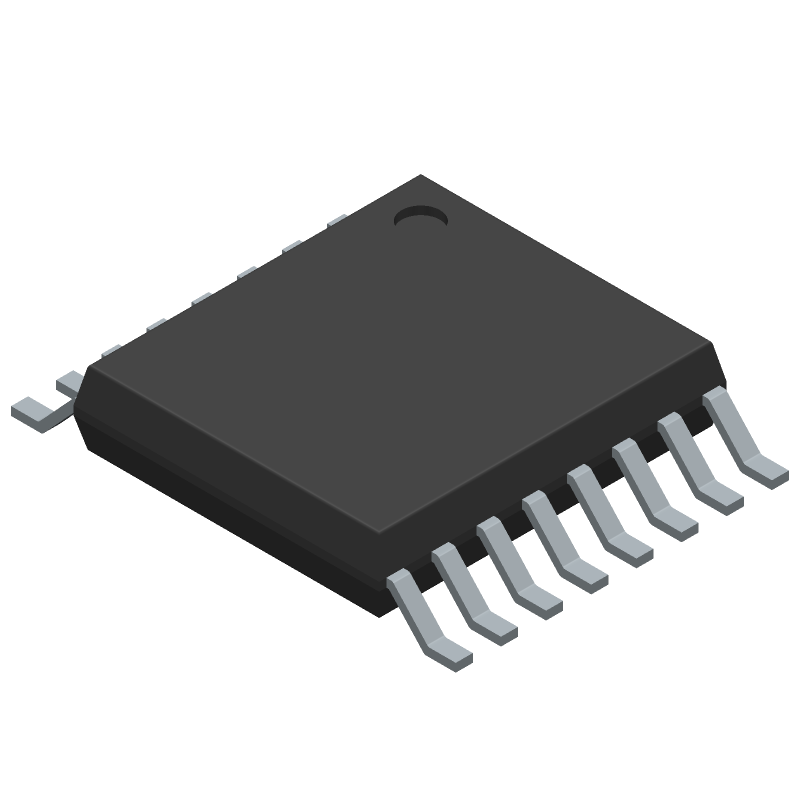

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TSV635IPT Part Data Attributes

Parametric Data
TSV635IPT STMicroelectronics
Buy Now Datasheet
Compare Parts:
TSV635IPT STMicroelectronics Rail-to-rail input/offset 5V CMOS Op-Amps, micro-power (60uA), GBP=880kHz, quad with standby
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code TSSOP
Package Description TSSOP-16
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 32 Weeks, 4 Days
Samacsys Manufacturer STMicroelectronics
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0001 µA
Bias Current-Max (IIB) @25C 0.00001 µA
Common-mode Reject Ratio-Nom 74 dB
Frequency Compensation YES
Input Offset Voltage-Max 4500 µV
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 3
Number of Functions 4
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Nom 0.27 V/us
Supply Current-Max 0.288 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 790
Voltage Gain-Min 10000
Width 4.4 mm

Alternate Parts for TSV635IPT

This table gives cross-reference parts and alternative options found for TSV635IPT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSV635IPT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6409T-H/SL Microchip Technology Inc $1.0190 QUAD OP-AMP, 4500 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO14, 3.90 MM, LEAD FREE, PLASTIC, SOIC-14 TSV635IPT vs MCP6409T-H/SL

TSV635IPT Related Parts

TSV635IPT Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the TSV635IPT is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RthJA) of 125°C/W.

  • To ensure stability, it's recommended to use a gain resistor (RG) between 1kΩ and 10kΩ, and a feedback capacitor (CF) between 10pF and 100pF. Additionally, the layout should be designed to minimize parasitic capacitance and inductance.

  • The recommended operating voltage range for the TSV635IPT is 2.7V to 5.5V, although the device can operate down to 2.2V with reduced performance.

  • To reduce noise and oscillations, use a low-ESR capacitor (e.g., ceramic or film capacitor) for decoupling, keep the layout compact, and use a ground plane to minimize inductance. Additionally, consider adding a noise filter or a ferrite bead in series with the power supply.

  • While the TSV635IPT can be used as a comparator, it's not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current (±20mA). A dedicated comparator IC would be a better choice for most applications.
