Power Circuits / Power Supply Modules / TSP-BFM24
Datasheets

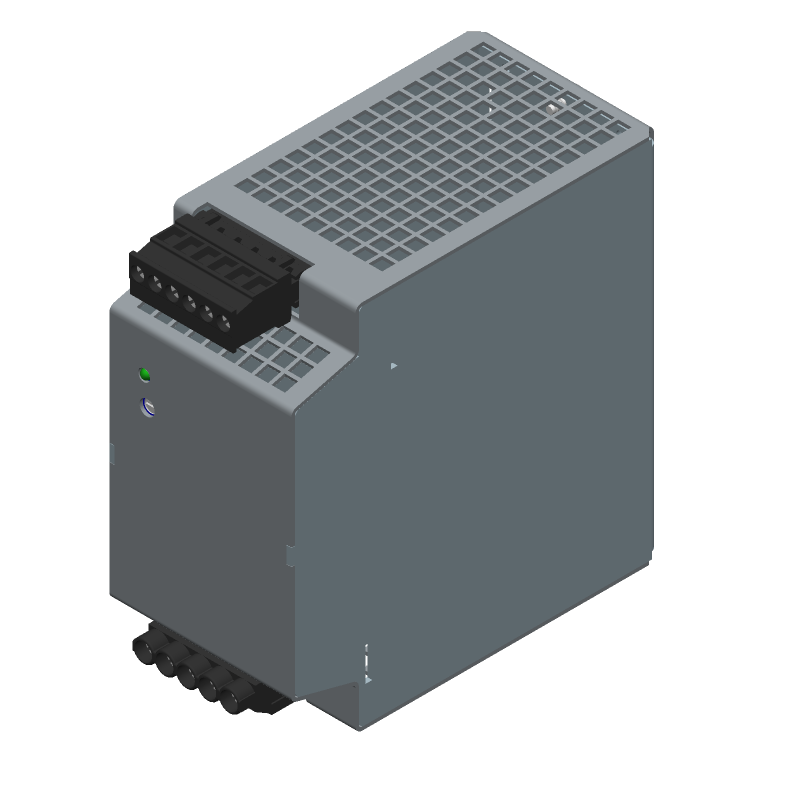

TSP-BFM24 by: Traco Power

Buffer module (up to 600 Watt), for any 24 VDC source, 120Ws buffer energy, compatible with TSP series

Part Details for TSP-BFM24 by Traco Power

Results Overview of TSP-BFM24 by Traco Power

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

TSP-BFM24 Information

TSP-BFM24 by Traco Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TSP-BFM24

Part # Distributor Description Stock Price Buy
DISTI # 13M3315
Newark Ac/Dc Din Rail Power Supply, Industrial, Fixed, 600 W, 24 V, 25 A Rohs Compliant: Yes |Traco Power T... SP-BFM24 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $281.9500
  • 5 $254.3100
  • 10 $246.0200
  • 25 $240.4900
  • 50 $234.9600
$234.9600 / $281.9500 Buy Now
DISTI # 1951-1112-ND
DigiKey BUFFER MOD FOR TSP PWR SUPP Min Qty: 1 Lead time: 20 Weeks Container: Box 1
In Stock
  • 1 $320.8200
  • 10 $304.3250
$304.3250 / $320.8200 Buy Now
DISTI # 495-TSP-BFM24
Mouser Electronics DIN Rail Power Supplies 600W Function Module in a DIN-Rail Mount Metal Case RoHS: Compliant 0
  • 1 $298.9800
  • 10 $288.6700
  • 25 $283.5400
$283.5400 / $298.9800 Order Now
DISTI # 70420678
RS Buffer Module, 24-28VDC, 600W, TPP Series | TRACO Power TSP-BFM24 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 0
  • 1 $273.7100
$273.7100 RFQ
DISTI # 82428189
Verical Power Supply Min Qty: 1 Package Multiple: 1 Date Code: 2321 Americas - 12
  • 1 $393.2044
$393.2044 Buy Now
DISTI # TSP-BFM24
TME Module: buffer, for DIN rail, 600W, 24VDC, 25A, 110x54x110mm, OUT: 1 Min Qty: 1 0
  • 1 $270.9700
  • 5 $249.3600
  • 25 $238.3800
  • 100 $225.8400
$225.8400 / $270.9700 RFQ
DISTI # 000000000005185277
Sager DIN Rail Power Supplies Product Type: AC/DC, Package Style: DIN-rail, Output Power (W): 600, Inpu... t Voltage: 24-28VDC, Output 1 (Vdc): 24-28VDC, Output 2 (Vdc): N/A, Output 3 (Vdc): N/A more Min Qty: 1 11
  • 1 $271.0000
  • 10 $239.2500
  • 25 $232.0100
  • 50 $218.7500
$218.7500 / $271.0000 Buy Now
Neutron USA DIN Rail BUFFER MOD FOR TSP PWR SUPP, 600W 24-28VDC, Capacitor bank 12
  • 1 $750.3900
$750.3900 Buy Now

Part Details for TSP-BFM24

TSP-BFM24 Part Data Attributes

Parametric Data
TSP-BFM24 Traco Power
Buy Now Datasheet
Compare Parts:
TSP-BFM24 Traco Power Buffer module (up to 600 Watt), for any 24 VDC source, 120Ws buffer energy, compatible with TSP series
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TRACO ELECTRONIC AG
Package Description PACKAGE
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Traco Power
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Approvals UL, IEC, EN
Input Voltage-Nom 24 V
JESD-30 Code R-XXMA-X
Length 110 mm
Number of Functions 1
Number of Outputs 1
Operating Temperature-Max 70 °C
Operating Temperature-Min -25 °C
Output Current-Max 25 A
Output Voltage-Max 28 V
Output Voltage-Min 22 V
Output Voltage-Nom 24 V
Package Body Material UNSPECIFIED
Package Code XMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Ripple Voltage (Main Out) 0.0707 Vrms
Screening Level IEC 61010-1
Seated Height-Max 110 mm
Surface Mount NO
Technology HYBRID
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 600 W
Trim/Adjustable Output YES
Width 54 mm

TSP-BFM24 Frequently Asked Questions (FAQ)

  • Traco Power recommends a PCB layout with a large copper area connected to the tab of the device to ensure good thermal conduction. A minimum of 1 square inch of copper area is recommended.

  • To ensure the output voltage is within the specified tolerance, it is recommended to use a minimum load of 10% of the maximum rated output current. Additionally, the input voltage should be within the specified range, and the device should be operated within the recommended temperature range.

  • The maximum capacitance on the output depends on the specific application and the desired level of output voltage ripple. As a general guideline, Traco Power recommends a maximum capacitance of 10uF to 22uF. However, it is recommended to consult with Traco Power's application engineers for specific guidance.

  • Traco Power recommends using external overvoltage protection (OVP) and undervoltage protection (UVP) circuits to protect the device from abnormal input voltage conditions. The OVP and UVP circuits should be designed to disconnect the input voltage from the device in case of an overvoltage or undervoltage condition.

  • The recommended input fuse rating depends on the specific application and the maximum input current. As a general guideline, Traco Power recommends a fuse rating of 1.5 to 2 times the maximum input current. However, it is recommended to consult with Traco Power's application engineers for specific guidance.
