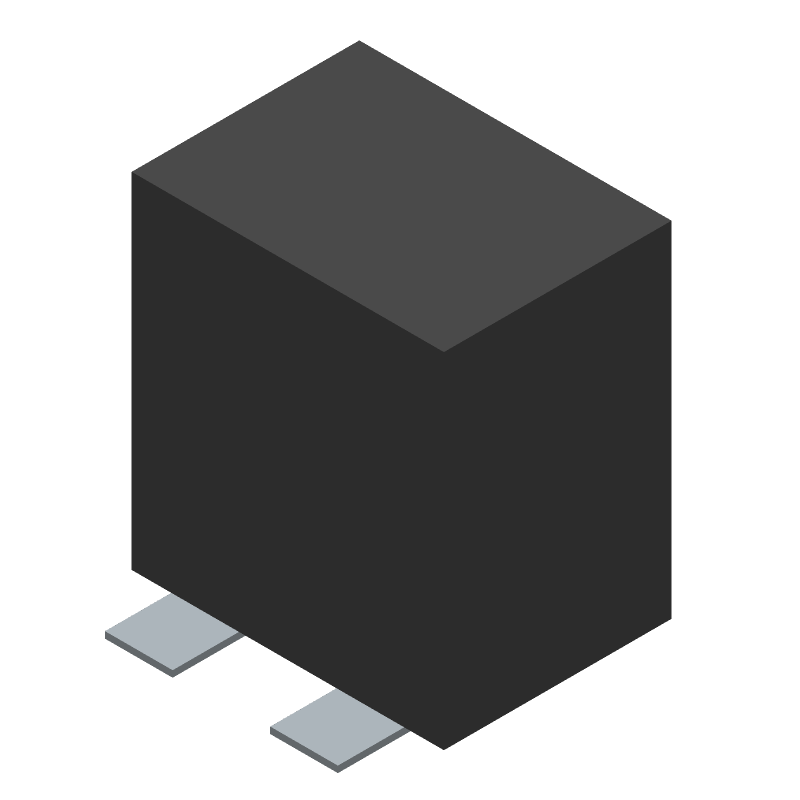

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSM4YL104KR05 by Vishay Intertechnologies
Results Overview of TSM4YL104KR05 by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TSM4YL104KR05 Information
TSM4YL104KR05 by Vishay Intertechnologies is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for TSM4YL104KR05
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05M3598
|
Newark | Trimmer, Pot, 100K, 13Turn, Smd, Track Resistance:100Kohm, No. Of Turns:13Turns, Potentiometer Mo... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 269 |
|
$5.1900 / $9.6900 | Buy Now |
|
DISTI #
TSM4YL104KR05
|
Avnet Americas | TSM4 YL 100K 10% TR e3 - Tape and Reel (Alt: TSM4YL104KR05) RoHS: Compliant Min Qty: 600 Package Multiple: 200 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$3.4619 / $4.2841 | Buy Now |
|
DISTI #
75-TSM4YL104KR05
|
Mouser Electronics | Trimmer Resistors - SMD TSM4YL104KR05 RoHS: Compliant | 174 |
|
$4.9700 / $9.7100 | Buy Now |
|
DISTI #
TSM4YL104KR05
|
Avnet Abacus | TSM4 YL 100K 10 TR e3 - Tape and Reel (Alt: TSM4YL104KR05) RoHS: Compliant Min Qty: 600 Package Multiple: 200 Lead time: 18 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for TSM4YL104KR05
TSM4YL104KR05 CAD Models
TSM4YL104KR05 Part Data Attributes
|
|
TSM4YL104KR05
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TSM4YL104KR05
Vishay Intertechnologies
Trimmer, Cermet, 0.25W, 158V, 10% +/-Tol, 100ppm/Cel, 11 Turn(s), 1419, CHIP
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Actuator Orientation | VERTICAL | |
| Actuator Type | SCREW | |
| Construction | Rectangular | |
| Ganging Number | 1 | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 3 | |
| Number of Turns | 11 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 5.1 mm | |
| Package Length | 4.8 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.5 mm | |
| Packing Method | TR, 7 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 85 °C | |
| Resistance | 100000 Ω | |
| Resistance Law | LINEAR | |
| Resistor Type | TRIMMER | |
| Rotational Angle | 3960 deg | |
| Size Code | 1914 | |
| Surface Mount | YES | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | L BEND | |
| Tolerance | 10% | |
| Working Voltage | 158 V |
