TS9511IYLT by: STMicroelectronics

Precision rail-to-rail input/output 3 MHz single operational amplifier

Part Details for TS9511IYLT by STMicroelectronics

Results Overview of TS9511IYLT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TS9511IYLT Information

TS9511IYLT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TS9511IYLT

Part # Distributor Description Stock Price Buy
DISTI # 497-11020-1-ND
DigiKey IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2566
In Stock
  • 1 $1.4000
  • 10 $1.0200
  • 25 $0.9252
  • 100 $0.8204
  • 250 $0.7704
  • 500 $0.7403
  • 1,000 $0.7155
  • 3,000 $0.6849
  • 6,000 $0.6699
  • 9,000 $0.6624
  • 15,000 $0.6541
$0.6541 / $1.4000 Buy Now
DISTI # 511-TS9511IYLT
Mouser Electronics Precision Amplifiers Precision rail-to-rail input/output 3 MHz single operational amplifier RoHS: Compliant 0
  • 3,000 $0.6840
  • 6,000 $0.6690
$0.6690 / $0.6840 Order Now
STMicroelectronics Precision rail-to-rail input/output 3 MHz single operational amplifier RoHS: Compliant Min Qty: 1 0
  • 1 $2.3800
  • 10 $1.5200
  • 100 $1.0400
  • 250 $0.9200
  • 500 $0.8400
$0.8400 / $2.3800 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks 0
  • 3,000 $0.6310
$0.6310 Buy Now
DISTI # TS9511IYLT
TME IC: operational amplifier, 3MHz, Ch: 1, SOT23-5, 2.7÷12VDC Min Qty: 1 0
  • 1 $0.9000
  • 5 $0.8100
  • 25 $0.7200
  • 100 $0.6500
  • 500 $0.6100
$0.6100 / $0.9000 RFQ
DISTI # TS9511IYLT
Avnet Silica OP Amp Single GP RR IO 12V 5Pin SOT23 TR (Alt: TS9511IYLT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now

Part Details for TS9511IYLT

TS9511IYLT CAD Models

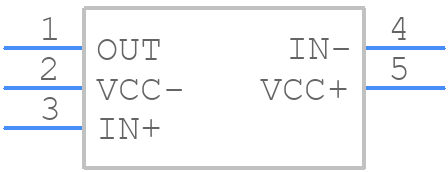

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

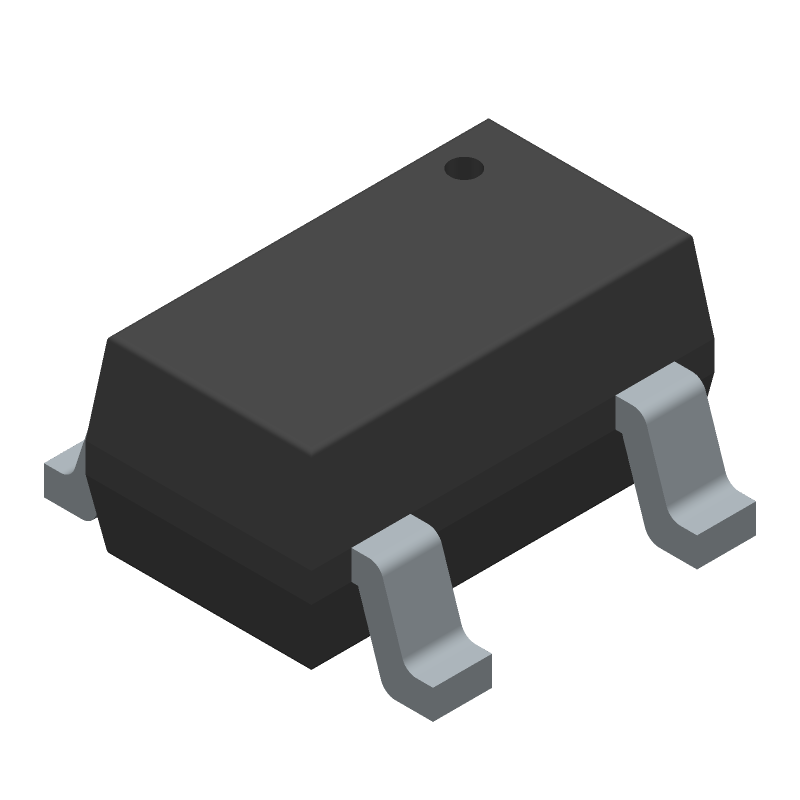

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TS9511IYLT Part Data Attributes

Parametric Data
TS9511IYLT STMicroelectronics
Buy Now Datasheet
Compare Parts:
TS9511IYLT STMicroelectronics Precision rail-to-rail input/output 3 MHz single operational amplifier
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOT-23
Package Description ROHS COMPLIANT, SOT-23, 5 PIN
Pin Count 5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 20 Weeks
Samacsys Manufacturer STMicroelectronics
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.15 µA
Bias Current-Max (IIB) @25C 0.07 µA
Common-mode Reject Ratio-Min 55 dB
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.08 µA
Input Offset Voltage-Max 1500 µV
JESD-30 Code R-PDSO-G5
JESD-609 Code e4
Length 2.9 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Slew Rate-Nom 1 V/us
Supply Current-Max 1.2 mA
Supply Voltage Limit-Max 14 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 3000
Voltage Gain-Min 1778.27941
Wideband NO
Width 1.6 mm

Alternate Parts for TS9511IYLT

This table gives cross-reference parts and alternative options found for TS9511IYLT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TS9511IYLT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TS9511ILT STMicroelectronics Check for Price Precision rail-to-rail input/output 3 MHz single operational amplifier TS9511IYLT vs TS9511ILT
TS507CLT STMicroelectronics $0.4802 High precision single supply rail to rail op-amp TS9511IYLT vs TS507CLT
AD8601WDRTZ-REEL7 Rochester Electronics LLC Check for Price OP-AMP, 7000 uV OFFSET-MAX, 8.2 MHz BAND WIDTH, PDSO5, ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN TS9511IYLT vs AD8601WDRTZ-REEL7
ADA4891-1ARJZ-R7 Analog Devices Inc $1.2686 Low Cost CMOS, High Speed, Rail-to-Rail Amplifier (Single) TS9511IYLT vs ADA4891-1ARJZ-R7
TS507ILT STMicroelectronics $0.6630 High precision single supply rail to rail op-amp TS9511IYLT vs TS507ILT
TLV2731IDBV Texas Instruments Check for Price OP-AMP, 3000uV OFFSET-MAX, 1.9MHz BAND WIDTH, PDSO5, PLASTIC, SOT-23, 5 PIN TS9511IYLT vs TLV2731IDBV
MCP6H81-E/MNY Microchip Technology Inc Check for Price OP-AMP TS9511IYLT vs MCP6H81-E/MNY
TS507IYLT STMicroelectronics $1.1913 High precision single supply rail to rail op-amp TS9511IYLT vs TS507IYLT
ADA4891-1ARJZ-RL Analog Devices Inc Check for Price Low Cost CMOS, High Speed, Rail-to-Rail Amplifier (Single) TS9511IYLT vs ADA4891-1ARJZ-RL
ADA4891-1ARJZ-R7 Rochester Electronics LLC Check for Price OP-AMP, 10000 uV OFFSET-MAX, PDSO5, ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN TS9511IYLT vs ADA4891-1ARJZ-R7

TS9511IYLT Related Parts

TS9511IYLT Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the TS9511IYLT is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.

  • To ensure proper power supply and decoupling, follow these guidelines: use a stable voltage source, add a 10uF ceramic capacitor between VCC and GND, and place a 100nF ceramic capacitor between VCC and GND close to the device. Additionally, use a low-ESR capacitor for the output capacitor (COUT).

  • The TS9511IYLT can deliver up to 1A of output current, but it's essential to consider the device's thermal limitations and ensure proper heat sinking to avoid overheating.

  • To configure the TS9511IYLT for a specific output voltage, use the FB (Feedback) pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for the desired output voltage.

  • The EN pin is used to enable or disable the TS9511IYLT. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in your design.
