Amplifier Circuits / Comparators / TS861AIDT
Datasheets
TS861AIDT by:
STMicroelectronics
Hongxing Electrical Ltd
STMicroelectronics
Not Found

Rail-to-rail micropower BiCMOS comparator

Part Details for TS861AIDT by STMicroelectronics

Results Overview of TS861AIDT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Healthcare Electronic Manufacturing

TS861AIDT Information

TS861AIDT by STMicroelectronics is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TS861AIDT

Part # Distributor Description Stock Price Buy
DISTI # 497-8130-1-ND
DigiKey IC COMPARATOR 1 GEN PUR 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.3000
  • 2,500 $0.6060
  • 5,000 $0.5918
  • 7,500 $0.5847
  • 12,500 $0.5768
$0.5768 / $1.3000 Buy Now
DISTI # TS861AIDT
Avnet Americas Comparator Single R-R I/P 10V 8-Pin SO N T/R - Tape and Reel (Alt: TS861AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.4595
  • 5,000 $0.4566
  • 10,000 $0.4481
  • 15,000 $0.4400
  • 20,000 $0.4369
$0.4369 / $0.4595 Buy Now
DISTI # 511-TS861AIDT
Mouser Electronics Analog Comparators Rail-to-rail micropower BiCMOS comparator RoHS: Compliant 2710
  • 1 $1.3700
  • 10 $1.3100
  • 25 $1.2200
  • 100 $1.0100
  • 250 $0.8730
  • 500 $0.8280
  • 1,000 $0.5900
  • 2,500 $0.5600
  • 7,500 $0.5590
$0.5590 / $1.3700 Buy Now
STMicroelectronics Rail-to-rail micropower BiCMOS comparator RoHS: Compliant Min Qty: 1 2710
  • 1 $1.3100
  • 10 $1.2800
  • 25 $1.2000
  • 100 $0.9900
  • 250 $0.8600
  • 500 $0.8100
$0.8100 / $1.3100 Buy Now
Rochester Electronics TS861 - Single Rail To Rail 3V Micro Power Comp RoHS: Compliant Status: Active Min Qty: 1 24755
  • 1 $0.7185
  • 25 $0.7041
  • 100 $0.6754
  • 500 $0.6467
  • 1,000 $0.6107
$0.6107 / $0.7185 Buy Now
DISTI # TS861AIDT
TME IC: comparator, low-power, Cmp: 1, 2.7÷10V, SMT, SO8, reel,tape Min Qty: 1 4
  • 1 $0.6600
  • 5 $0.5580
  • 25 $0.4740
$0.4740 / $0.6600 Buy Now
DISTI # TS861AIDT
IBS Electronics COMPARATOR SINGLE R-R I/P 10V AUTOMOTIVE 8-PIN SO N T/R Min Qty: 2500 Package Multiple: 1 0
  • 2,500 $0.6384
  • 5,000 $0.6251
  • 7,500 $0.6185
$0.6185 / $0.6384 Buy Now
DISTI # TS861AIDT
Avnet Silica Comparator Single RR IP 10V 8Pin SO N TR (Alt: TS861AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # TS861AIDT
EBV Elektronik Comparator Single RR IP 10V 8Pin SO N TR (Alt: TS861AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Amplifiers 9810
RFQ

Part Details for TS861AIDT

TS861AIDT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

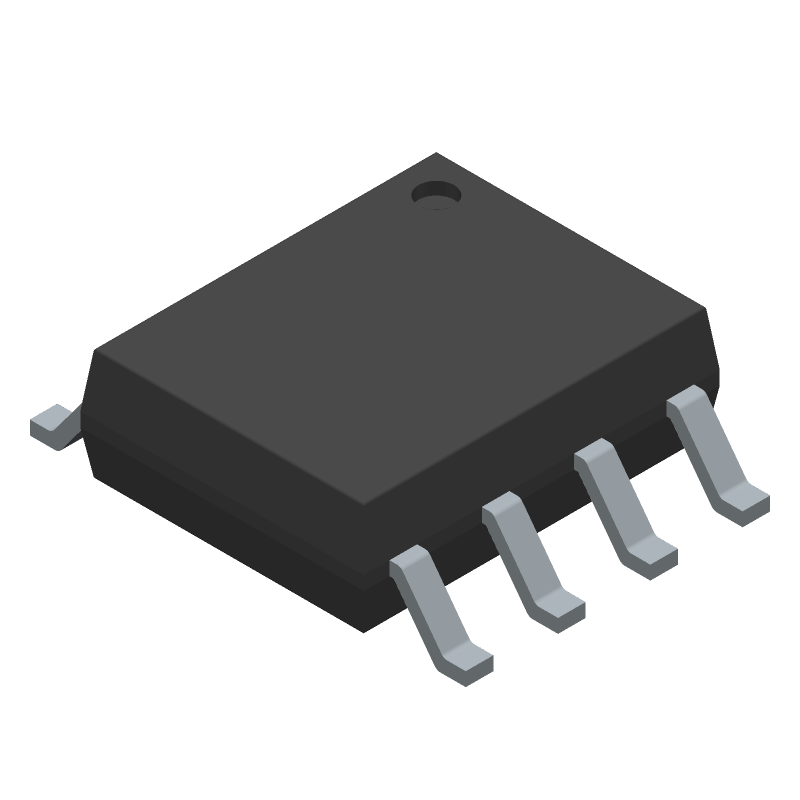

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TS861AIDT Part Data Attributes

Parametric Data
TS861AIDT STMicroelectronics
Buy Now Datasheet
Compare Parts:
TS861AIDT STMicroelectronics Rail-to-rail micropower BiCMOS comparator
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description ROHS COMPLIANT, SOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer STMicroelectronics
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) 0.0006 µA
Bias Current-Max (IIB) @25C 0.0003 µA
Input Offset Voltage-Max 10000 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Type PUSH-PULL
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Response Time-Nom 2000 ns
Seated Height-Max 1.75 mm
Supply Current-Max 0.016 mA
Supply Voltage Limit-Max 12 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm

Alternate Parts for TS861AIDT

This table gives cross-reference parts and alternative options found for TS861AIDT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TS861AIDT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TS861AID STMicroelectronics Check for Price Rail-to-rail micropower BiCMOS comparator TS861AIDT vs TS861AID
TS861ID STMicroelectronics Check for Price Rail-to-rail micropower BiCMOS comparator TS861AIDT vs TS861ID
TS861IDT STMicroelectronics $0.1528 Rail-to-rail micropower BiCMOS comparator TS861AIDT vs TS861IDT

TS861AIDT Related Parts

TS861AIDT Frequently Asked Questions (FAQ)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.

  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or fans, to keep the device temperature within the recommended range.

  • The recommended input capacitance for the TS861AIDT is 10nF to 100nF, depending on the specific application and noise requirements. A larger input capacitance can help filter out high-frequency noise, but may also increase the startup time and affect the device's stability.

  • To troubleshoot issues with the TS861AIDT's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly decoupled and that there are no noise or oscillation issues.

  • Yes, the TS861AIDT can be used in a switching regulator application, but it's essential to ensure that the device is properly configured and decoupled to handle the high-frequency switching noise. Additionally, consider using a suitable output capacitor and inductor to filter out the switching noise and ensure stable operation.
