TPS61240YFFT by: Texas Instruments

2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter 6-DSBGA -40 to 125

Part Details for TPS61240YFFT by Texas Instruments

Results Overview of TPS61240YFFT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

TPS61240YFFT Information

TPS61240YFFT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TPS61240YFFT

Part # Distributor Description Stock Price Buy
DISTI # 296-24487-1-ND
DigiKey IC REG BOOST 5V 500MA 6DSBGA Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 406
In Stock
  • 1 $1.3300
  • 10 $0.9690
  • 25 $0.8780
  • 100 $0.7777
  • 250 $0.7300
  • 500 $0.7012
  • 750 $0.6868
  • 1,250 $0.6708
  • 1,750 $0.6614
  • 2,500 $0.6525
  • 6,250 $0.6331
  • 12,500 $0.6214
$0.6214 / $1.3300 Buy Now
DISTI # 595-TPS61240YFFT
Mouser Electronics Switching Voltage Regulators 5V 400mA 4MHz Step Up DC/DC Converter A 595-TPS61240YFFR RoHS: Compliant 657
  • 1 $1.3300
  • 10 $0.9690
  • 25 $0.8780
  • 100 $0.7780
  • 250 $0.7300
  • 500 $0.7290
  • 1,000 $0.6520
  • 4,000 $0.6330
  • 8,000 $0.6210
$0.6210 / $1.3300 Buy Now
Rochester Electronics TPS61240 5V, 400mA, 4MHz Step-Up DC/DC Converter RoHS: Compliant Status: Active Min Qty: 1 48
  • 100 $0.7876
  • 500 $0.7088
  • 1,000 $0.6537
  • 10,000 $0.5828
  • 100,000 $0.4883
$0.4883 / $0.7876 Buy Now
Vyrian Other Function Semiconductors 29687
RFQ

Part Details for TPS61240YFFT

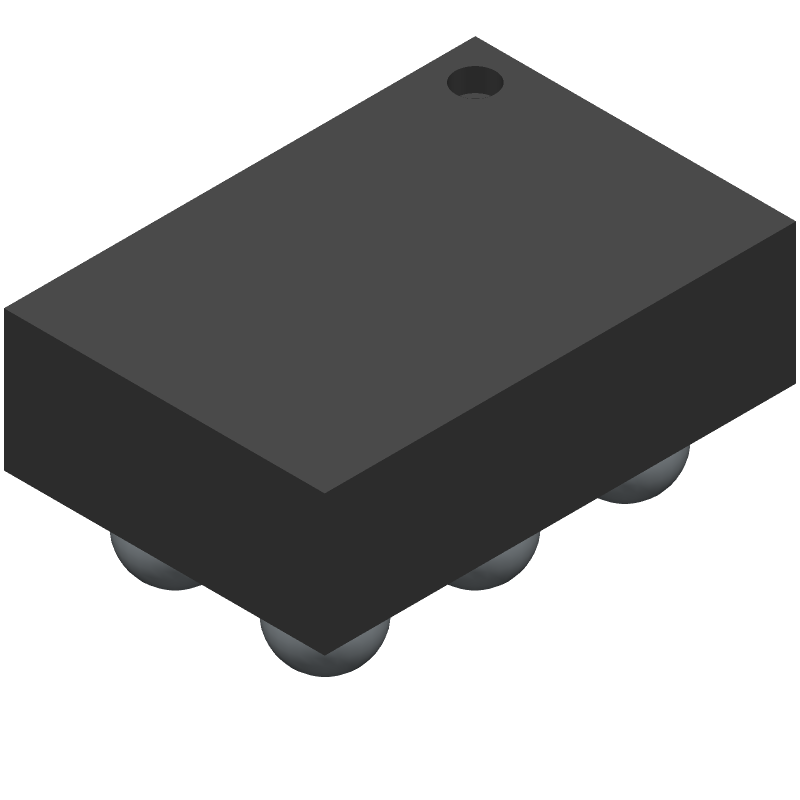

TPS61240YFFT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPS61240YFFT Part Data Attributes

Parametric Data
TPS61240YFFT Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS61240YFFT Texas Instruments 2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter 6-DSBGA -40 to 125
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code BGA
Pin Count 6
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature ALSO HAS PFM CONTROL TECHNIQUE
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 5.5 V
Input Voltage-Min 2.3 V
Input Voltage-Nom 3.6 V
JESD-30 Code R-XBGA-B6
JESD-609 Code e1
Length 1.505 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.45 A
Output Voltage-Max 5 V
Output Voltage-Min 5 V
Output Voltage-Nom 5 V
Package Body Material UNSPECIFIED
Package Code VFBGA
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.625 mm
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 3500 kHz
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 0.4 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 1.105 mm

Alternate Parts for TPS61240YFFT

This table gives cross-reference parts and alternative options found for TPS61240YFFT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS61240YFFT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TPS61240YFFR Texas Instruments $1.3543 2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter 6-DSBGA -40 to 125 TPS61240YFFT vs TPS61240YFFR
TPS61241YFF Texas Instruments Check for Price 0.45A SWITCHING REGULATOR, 3500kHz SWITCHING FREQ-MAX, BGA6, 0.40 MM PITCH, DSBGA-6 TPS61240YFFT vs TPS61241YFF
TPS61240YFF Texas Instruments Check for Price 0.45A SWITCHING REGULATOR, 3500kHz SWITCHING FREQ-MAX, BGA6, 0.40 MM PITCH, DSBGA-6 TPS61240YFFT vs TPS61240YFF
TPS61242YFF Texas Instruments Check for Price IC SWITCHING REGULATOR, Switching Regulator or Controller TPS61240YFFT vs TPS61242YFF
TPS61242YFFT Texas Instruments Check for Price IC SWITCHING REGULATOR, Switching Regulator or Controller TPS61240YFFT vs TPS61242YFFT
TPS61241YFFR Texas Instruments $0.6000 5V, 500mA, 4MHz Step-Up DC/DC Converter 6-DSBGA -40 to 125 TPS61240YFFT vs TPS61241YFFR

TPS61240YFFT Related Parts
