Switches / DIP Switches / TDP02H0SBD1
Datasheets
TDP02H0SBD1 by:
C&K
C&K
Littelfuse Inc
Not Found

PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part Details for TDP02H0SBD1 by C&K

Results Overview of TDP02H0SBD1 by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TDP02H0SBD1 Information

TDP02H0SBD1 by C&K is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for TDP02H0SBD1

Part # Distributor Description Stock Price Buy
DISTI # 35AH7166
Newark Tdp02H0Sbd1 |C&k Components TDP02H0SBD1 RoHS: Not Compliant Min Qty: 1250 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $1.8800
$1.8800 Buy Now
DISTI # CKN9419-ND
DigiKey SWITCH PIANO DIP SPST 0.025A 24V Min Qty: 1 Lead time: 55 Weeks Container: Tube 72
In Stock
  • 1 $2.3600
  • 10 $1.9820
  • 25 $1.8388
  • 125 $1.6078
  • 250 $1.5195
  • 500 $1.4388
  • 1,000 $1.3659
  • 2,500 $1.2813
  • 5,000 $1.2258
$1.2258 / $2.3600 Buy Now
DISTI # 611-TDP02H0SBD1
Mouser Electronics DIP Switches / SIP Switches DIP SWITCH, SPST RoHS: Compliant 548
  • 1 $1.6400
  • 10 $1.4300
  • 25 $1.3500
$1.3500 / $1.6400 Buy Now
Bristol Electronics   11
RFQ
Quest Components   8
  • 1 $3.1500
  • 4 $2.6250
$2.6250 / $3.1500 Buy Now
DISTI # 000000000003026623
Sager DIP Switches / SIP Switches DIP SWITCH, SPST Min Qty: 1250 0
  • 1,250 $1.5100
  • 1,875 $1.4500
$1.4500 / $1.5100 Buy Now

Part Details for TDP02H0SBD1

TDP02H0SBD1 CAD Models

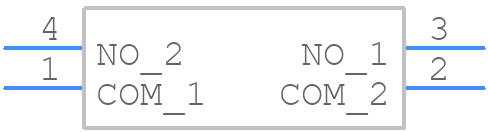

  • Part Symbol

    Part Symbol

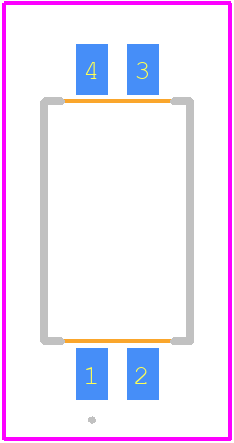

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TDP02H0SBD1 Part Data Attributes

Parametric Data
TDP02H0SBD1 C&K
Buy Now Datasheet
Compare Parts:
TDP02H0SBD1 C&K PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Factory Lead Time 48 Weeks
Samacsys Manufacturer C & K COMPONENTS
Actuator Material POLYAMIDE6T
Actuator Type SLIDE TYPE
Body Breadth 6 mm
Body Height 4.4 mm
Body Length or Diameter 3.67 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Contact Current(DC)-Max 0.025 A
Contact (DC) Max Rating R Load 0.025A@24VDC
Contact Function OFF-ON
Contact Resistance 0.1 mΩ
Contact Voltage(DC)-Max 24 V
Dielectric Withstand Volts 300VAC V
Electrical Life 1000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Housing Material GLASS FILLED POLYPHENYLENE SULFIDE
Insulation Resistance 100000000 Ω
JESD-609 Code e4
Mounting Feature SURFACE MOUNT-RIGHT ANGLE
Number of Switch Sections 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method TUBE
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type PIANO DIP SWITCH
Terminal Finish GOLD OVER NICKEL
Terminal Material COPPER ALLOY
Termination Type SOLDER

Alternate Parts for TDP02H0SBD1

This table gives cross-reference parts and alternative options found for TDP02H0SBD1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TDP02H0SBD1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LDJ-06-B Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-06-B
194-9MS-P CTS Corporation Check for Price Piano Dip Switch, 9 Switches, SPST, 0.05A, 24VDC, Solder Terminal, Through Hole-straight TDP02H0SBD1 vs 194-9MS-P
LDJ-09 Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-09
LDJR-04-L-T-TR Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJR-04-L-T-TR
LDJ-09-L-TR Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-09-L-TR
LDJ-01-T-TR Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 2 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-01-T-TR
DPL-03-T Salecom Electronics Co Ltd Check for Price Piano Dip Switch, 3 Switches, SPST, Off-on, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight TDP02H0SBD1 vs DPL-03-T
LDJ-09-L-T-TR Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-09-L-T-TR
LDJ-12-T-TR Lamb Industries Check for Price DIP Switch, SPST, Off-on, Horizontal, 0.025A, 24VDC, 24 PCB Hole Cnt, Solder Terminal, Surface Mount-straight TDP02H0SBD1 vs LDJ-12-T-TR
DPL-05U Salecom Electronics Co Ltd Check for Price Piano Dip Switch, 5 Switches, SPST, Off-on, 0.025A, 24VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight TDP02H0SBD1 vs DPL-05U

TDP02H0SBD1 Related Parts

TDP02H0SBD1 Frequently Asked Questions (FAQ)

  • C&K provides a recommended PCB layout in their application notes, which includes a suggested land pattern and spacing to ensure proper switch operation and minimize electrical noise.

  • The TDP02H0SBD1 is a mechanical switch, and debouncing is typically handled by the system's firmware or software. A common debouncing technique is to use a timer to ignore switch transitions within a certain time window (e.g., 10-20 ms).

  • The datasheet specifies a maximum current rating of 100 mA at 12 VDC. However, it's essential to consider the switch's power rating and the system's requirements to ensure safe and reliable operation.

  • While the TDP02H0SBD1 is a rugged switch, it's still important to consider the environmental conditions in which it will operate. C&K provides guidance on vibration and shock testing in their application notes, and it's recommended to consult with their engineers for specific requirements.

  • C&K recommends using a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using harsh chemicals, solvents, or excessive moisture, which can damage the switch or compromise its performance.
