Logic / Gates / TC74AC04F
Datasheets
TC74AC04F by:
Toshiba America Electronic Components
Honest Han
Toshiba America Electronic Components
Not Found

IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-14, Gate

Part Details for TC74AC04F by Toshiba America Electronic Components

Results Overview of TC74AC04F by Toshiba America Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Telecommunications Communication and Networking Automotive

TC74AC04F Information

TC74AC04F by Toshiba America Electronic Components is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for TC74AC04F

Part # Distributor Description Stock Price Buy
Bristol Electronics   1655
RFQ
Quest Components AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14 1324
  • 1 $0.9750
  • 14 $0.4388
  • 115 $0.2925
$0.2925 / $0.9750 Buy Now
Quest Components AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14 417
  • 1 $0.2925
  • 42 $0.1950
  • 257 $0.1560
$0.1560 / $0.2925 Buy Now

Part Details for TC74AC04F

TC74AC04F CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

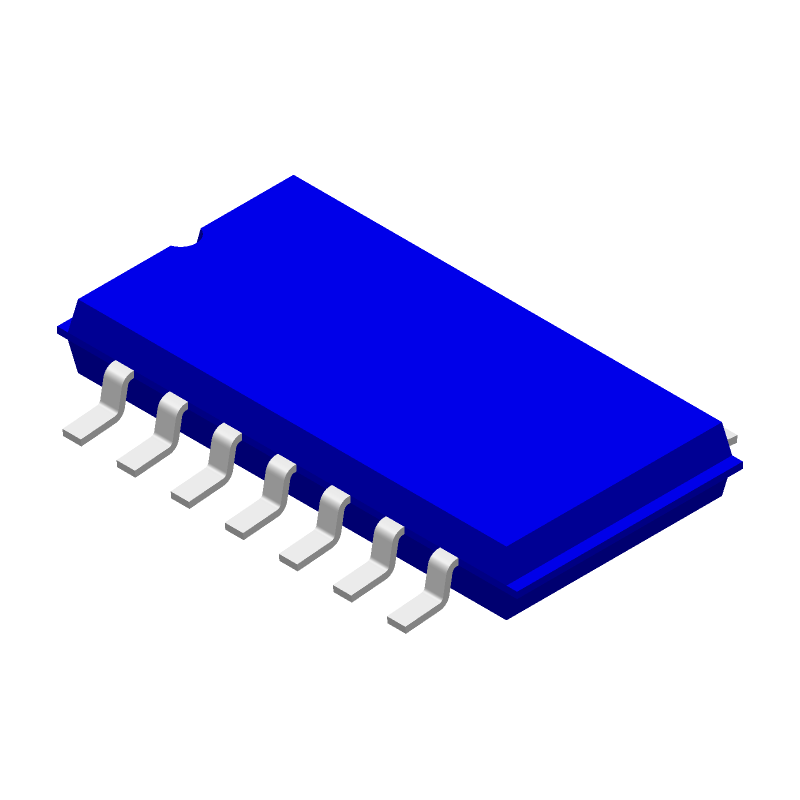

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TC74AC04F Part Data Attributes

Parametric Data
TC74AC04F Toshiba America Electronic Components
Buy Now Datasheet
Compare Parts:
TC74AC04F Toshiba America Electronic Components IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-14, Gate
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TOSHIBA CORP
Part Package Code SOIC
Package Description SOP-14
Pin Count 14
Reach Compliance Code unknown
HTS Code 8542.39.00.01
Samacsys Manufacturer Toshiba
Family AC
JESD-30 Code R-PDSO-G14
Length 10.3 mm
Load Capacitance (CL) 50 pF
Logic IC Type INVERTER
Max I(ol) 0.012 A
Number of Functions 6
Number of Inputs 1
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Prop. Delay@Nom-Sup 11.2 ns
Propagation Delay (tpd) 11.2 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.9 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 5.3 mm

Alternate Parts for TC74AC04F

This table gives cross-reference parts and alternative options found for TC74AC04F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC74AC04F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HD74AC04FP-EL Hitachi Ltd Check for Price Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, FP-14DA TC74AC04F vs HD74AC04FP-EL
74AC04SJQR Texas Instruments Check for Price AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14 TC74AC04F vs 74AC04SJQR
Part Number Manufacturer Composite Price Description Compare
TC74AC04F(ELP) Toshiba America Electronic Components Check for Price IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate TC74AC04F vs TC74AC04F(ELP)
74AC04SJQR National Semiconductor Corporation Check for Price IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14, Gate TC74AC04F vs 74AC04SJQR
HD74AC04FPVEL Renesas Electronics Corporation Check for Price AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, SOP-14 TC74AC04F vs HD74AC04FPVEL
74AC04SJX Texas Instruments Check for Price IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14, Gate TC74AC04F vs 74AC04SJX
HD74AC04FPEL-E Renesas Electronics Corporation Check for Price AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOP-14 TC74AC04F vs HD74AC04FPEL-E
74AC04SJX National Semiconductor Corporation Check for Price IC AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SOIC-14, Gate TC74AC04F vs 74AC04SJX
