T90S1D12-24 by: TE Connectivity

Power/Signal Relay, SPST, Momentary, 0.036A (Coil), 24VDC (Coil), 900mW (Coil), 30A (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

Part Details for T90S1D12-24 by TE Connectivity

Results Overview of T90S1D12-24 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Electronic Manufacturing Automotive

T90S1D12-24 Information

T90S1D12-24 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for T90S1D12-24

Part # Distributor Description Stock Price Buy
Onlinecomponents.com Power Relay 24VDC 30A SPST-NO(32.26x27.43x20.4)mm THT RoHS: Compliant 2789 In Stock
  • 4 $6.3580
  • 25 $4.8400
  • 50 $4.2710
  • 100 $3.7500
  • 250 $3.3900
$3.3900 / $6.3580 Buy Now
DISTI # 70325344
Verical Power Relay 24VDC 30A SPST-NO(32.26x27.43x20.4)mm THT Min Qty: 8 Package Multiple: 4 Date Code: 1638 Americas - 2788
  • 8 $8.0506
  • 28 $6.0199
  • 52 $5.2200
  • 100 $4.5844
  • 252 $4.0071
$4.0071 / $8.0506 Buy Now
Bristol Electronics   100
RFQ
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 24VDC, 30A, THROUGH HOLE-STRAIGHT MOUNT 160
  • 1 $4.5000
  • 24 $3.0000
  • 84 $2.7750
$2.7750 / $4.5000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 24VDC, 30A, THROUGH HOLE-STRAIGHT MOUNT 80
  • 1 $8.7900
  • 13 $5.8600
  • 44 $5.4205
$5.4205 / $8.7900 Buy Now
Master Electronics Power Relay 24VDC 30A SPST-NO(32.26x27.43x20.4)mm THT RoHS: Compliant 2789 In Stock
  • 4 $6.3580
  • 25 $4.8400
  • 50 $4.2710
  • 100 $3.7500
  • 250 $3.3900
$3.3900 / $6.3580 Buy Now

Part Details for T90S1D12-24

T90S1D12-24 CAD Models

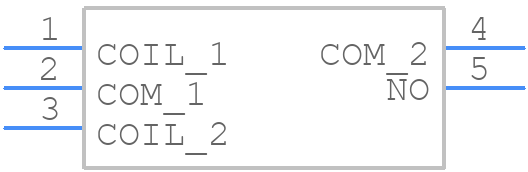

  • Part Symbol

    Part Symbol

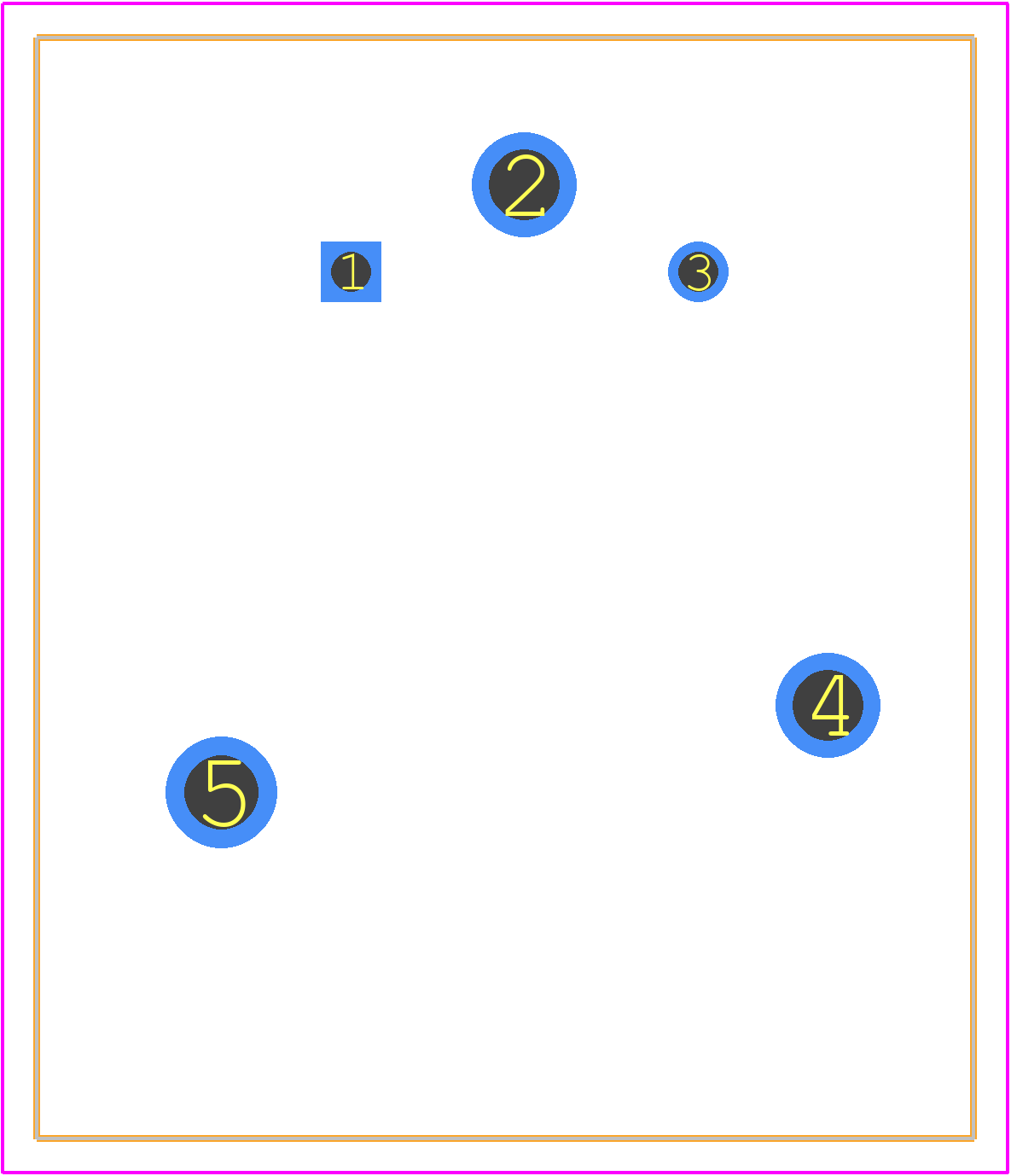

  • Footprint

    footprint

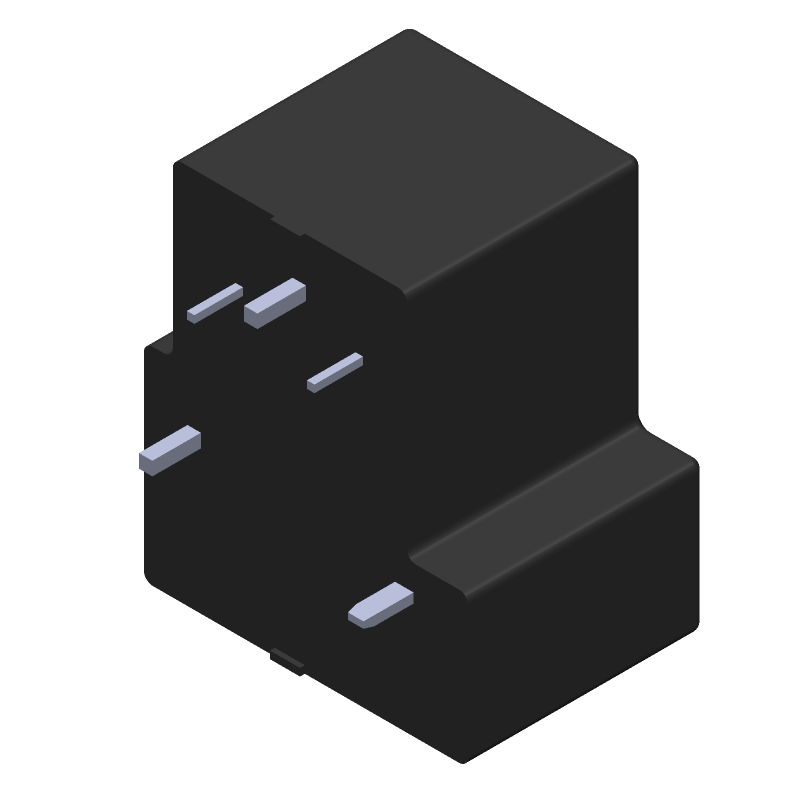

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T90S1D12-24 Part Data Attributes

Parametric Data
T90S1D12-24 TE Connectivity
Buy Now Datasheet
Compare Parts:
T90S1D12-24 TE Connectivity Power/Signal Relay, SPST, Momentary, 0.036A (Coil), 24VDC (Coil), 900mW (Coil), 30A (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Samacsys Manufacturer TE Connectivity
Body Breadth 24.1 mm
Body Height 16.9 mm
Body Length or Diameter 30.5 mm
Coil Current(DC)-Max 0.036 A
Coil Power 900 mW
Coil Resistance 660 Ω
Coil Voltage(DC)-Max 24 V
Coil/Input Supply Type DC
Contact Current(AC)-Max 30 A
Contact Current(DC)-Max 30 A
Contact/Output Supply Type AC/DC
Mounting Feature THROUGH HOLE-STRAIGHT
Operate Time 15 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Physical Dimension 30.5mm x 24.1mm x 16.9mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Function SPST
Relay Type POWER/SIGNAL RELAY
Release Time 15 ms
Surface Mount NO
Termination Type SOLDER

Alternate Parts for T90S1D12-24

This table gives cross-reference parts and alternative options found for T90S1D12-24. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T90S1D12-24, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
7-1393208-0 TE Connectivity Check for Price Power/Signal Relay, SPST, Momentary, 0.036A (Coil), 24VDC (Coil), 900mW (Coil), 30A (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount T90S1D12-24 vs 7-1393208-0
