Microcontrollers and Processors / Microcontrollers / STM8L162R8T6
Datasheets
STM8L162R8T6 by: STMicroelectronics

Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM, AES

Part Details for STM8L162R8T6 by STMicroelectronics

Results Overview of STM8L162R8T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM8L162R8T6 Information

STM8L162R8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM8L162R8T6

Part # Distributor Description Stock Price Buy
DISTI # 497-19225-ND
DigiKey IC MCU 8BIT 64KB FLASH 64LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray Temporarily Out of Stock
  • 1 $3.9100
  • 10 $2.9570
  • 25 $2.7180
  • 160 $2.3862
  • 320 $2.3005
  • 640 $2.2299
  • 1,120 $2.1821
  • 2,560 $2.1240
$2.1240 / $3.9100 Buy Now
DISTI # STM8L162R8T6
Avnet Americas MCU 8-bit STM8L STM8 CISC 64KB Flash 1.8V/2.5V/3.3V 64-Pin LQFP Tray - Trays (Alt: STM8L162R8T6) RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 10 Weeks, 0 Days Container: Tray 0
  • 960 $2.1582
  • 1,920 $2.0587
  • 3,840 $2.0482
  • 5,760 $2.0377
  • 7,680 $2.0273
$2.0273 / $2.1582 Buy Now
DISTI # 511-STM8L162R8T6
Mouser Electronics 8-bit Microcontrollers - MCU STM8L Ultra LP 8-Bit 64-Pin 64kB Flash RoHS: Compliant 1394
  • 1 $3.9200
  • 10 $2.7300
  • 100 $2.4000
  • 250 $2.3100
  • 500 $2.2400
  • 960 $2.0700
$2.0700 / $3.9200 Buy Now
STMicroelectronics Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM, AES RoHS: Compliant Min Qty: 1 1394
  • 1 $3.8400
  • 10 $2.6800
  • 100 $2.3500
  • 250 $2.2600
  • 500 $2.2000
$2.2000 / $3.8400 Buy Now
DISTI # STM8L162R8T6
TME IC: STM8 microcontroller, 16MHz, LQFP64, 1.65÷3.6VDC, D/A 12bit: 2 Min Qty: 1 0
  • 1 $3.4500
  • 5 $3.1900
  • 25 $2.7600
  • 100 $2.4100
$2.4100 / $3.4500 RFQ
DISTI # STM8L162R8T6
Avnet Silica MCU 8bit STM8L STM8 CISC 64KB Flash 18V25V33V 64Pin LQFP Tray (Alt: STM8L162R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 11 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM8L162R8T6
EBV Elektronik MCU 8bit STM8L STM8 CISC 64KB Flash 18V25V33V 64Pin LQFP Tray (Alt: STM8L162R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM8L162R8T6

STM8L162R8T6 CAD Models

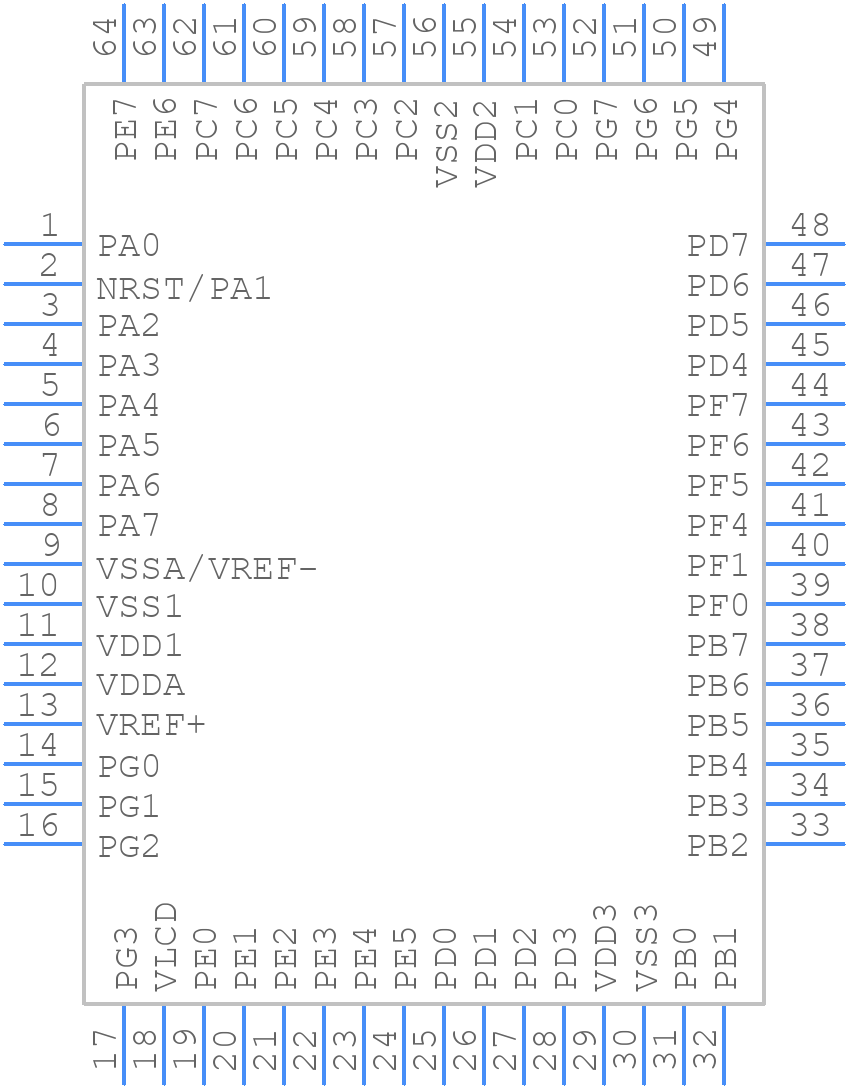

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM8L162R8T6 Part Data Attributes

Parametric Data
STM8L162R8T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM8L162R8T6 STMicroelectronics Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM, AES
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description 10 X 10 MM, LQFP-64
Pin Count 64
Reach Compliance Code compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 10 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family STM8
Clock Frequency-Max 16 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G64
Length 10 mm
Number of I/O Lines 54
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 16 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

STM8L162R8T6 Related Parts

STM8L162R8T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a clock frequency of up to 12 MHz to ensure reliable operation.

  • To configure the watchdog timer to reset the microcontroller, you need to set the WDPG bit in the WCR register to select the watchdog timer period, and then set the SWRST bit in the WCR register to enable the watchdog timer reset.

  • No, the UART peripheral in the STM8L162R8T6 is limited to a maximum baud rate of 115200 bps. Attempting to use a higher baud rate may result in unreliable data transmission.

  • To enable the brown-out reset (BOR) feature, you need to set the BOREN bit in the PDRUNEXT register. This will enable the BOR circuitry to reset the microcontroller if the supply voltage falls below the programmed threshold.

  • The minimum voltage required to program the flash memory is 2.7V. Programming the flash memory at a voltage lower than 2.7V may result in unreliable programming or data corruption.
