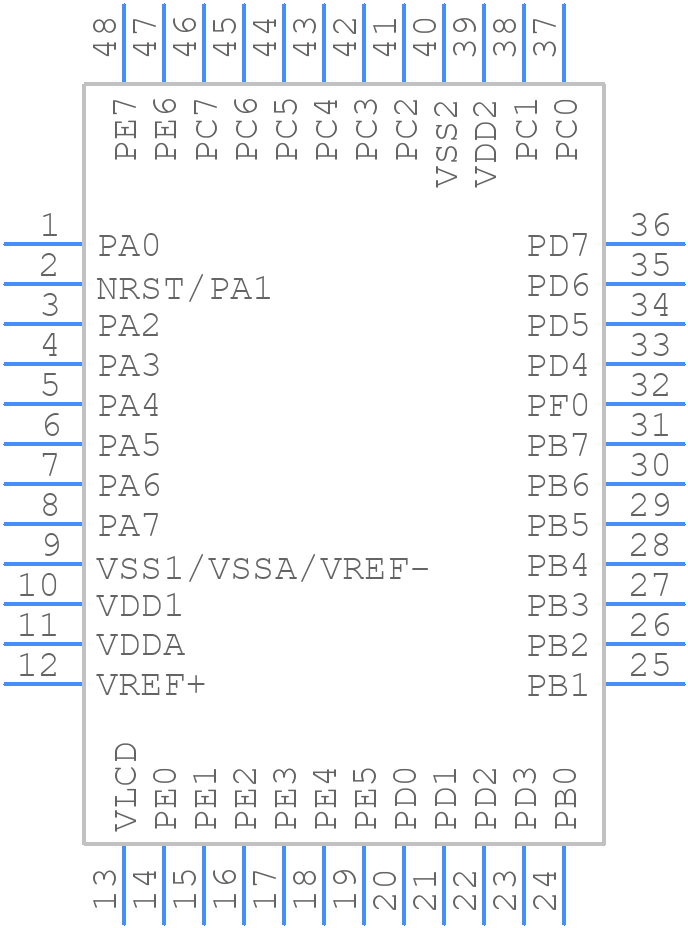

Part Symbol
-
Footprint
-

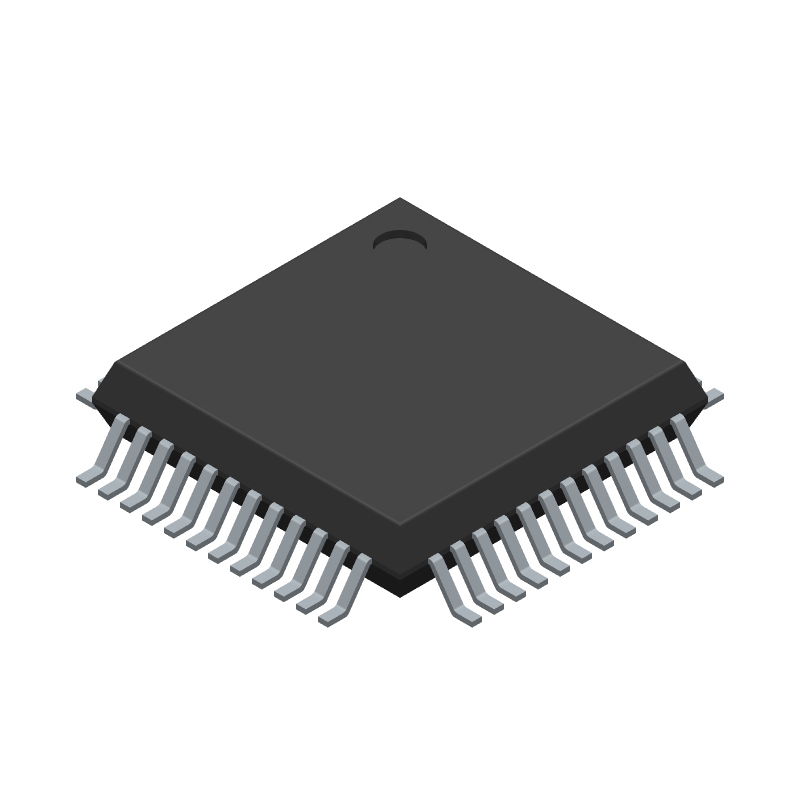

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM8L152C8T6TR by STMicroelectronics
Results Overview of STM8L152C8T6TR by STMicroelectronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Automotive
STM8L152C8T6TR Information
STM8L152C8T6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM8L152C8T6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52Y7797
|
Newark | 8 Bit Microcontroller, Ultra Low Power, Stm8L, 16 Mhz, 64 Kb, 4 Kb, 48, Lqfp Rohs Compliant: Yes |St... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$3.2200 | Buy Now |
|
DISTI #
STM8L152C8T6TR-ND
|
DigiKey | IC MCU 8BIT 64KB FLASH 48LQFP Min Qty: 2400 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.8022 | Buy Now |
|
DISTI #
STM8L152C8T6TR
|
Avnet Americas | STMSTM8L152C8T6TR - Tape and Reel (Alt: STM8L152C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$1.7481 / $1.7841 | Buy Now |
|
DISTI #
511-STM8L152C8T6TR
|
Mouser Electronics | 8-bit Microcontrollers - MCU Ultra-low-power 8-bit MCU 64 Kbytes Flash, 16 MHz CPU, integrated EEPRO... more RoHS: Compliant | 0 |
|
$1.7800 | Order Now |
|
|
STMicroelectronics | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM RoHS: Compliant Min Qty: 1 | 0 |
|
$2.1700 / $3.4500 | Buy Now |
|
|
Bristol Electronics | 2400 |
|
RFQ | ||
|
|
Quest Components | 1920 |
|
$1.6500 / $3.3000 | Buy Now | |
|
DISTI #
STM8L152C8T6TR
|
Avnet Silica | STMSTM8L152C8T6TR (Alt: STM8L152C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM8L152C8T6TR
|
EBV Elektronik | STMSTM8L152C8T6TR (Alt: STM8L152C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 11716 |
|
RFQ |
Part Details for STM8L152C8T6TR
STM8L152C8T6TR CAD Models
STM8L152C8T6TR Part Data Attributes
|
|
STM8L152C8T6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM8L152C8T6TR
STMicroelectronics
Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | LQFP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | STM8 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Number of I/O Lines | 41 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 4096 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 3.67 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for STM8L152C8T6TR
This table gives cross-reference parts and alternative options found for STM8L152C8T6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM8L152C8T6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM8L151C8T3TR | STMicroelectronics | Check for Price | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM | STM8L152C8T6TR vs STM8L151C8T3TR |
| STM8L151C8T7 | STMicroelectronics | $1.8690 | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM | STM8L152C8T6TR vs STM8L151C8T7 |
| STM8L152C8T6 | STMicroelectronics | $2.9233 | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM | STM8L152C8T6TR vs STM8L152C8T6 |
| STM8L151C8T3 | STMicroelectronics | $2.0220 | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM | STM8L152C8T6TR vs STM8L151C8T3 |
| STM8L151C8T6TR | STMicroelectronics | Check for Price | Ultra-low-power 8-bit MCU with 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM | STM8L152C8T6TR vs STM8L151C8T6TR |
STM8L152C8T6TR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM8L152C8T6TR is 16 MHz.
-
The STM8L152C8T6TR has 64 KB of flash memory.
-
The operating voltage range of the STM8L152C8T6TR is 1.8 V to 3.6 V.
-
Yes, the STM8L152C8T6TR has a built-in 16 MHz oscillator.
-
The STM8L152C8T6TR has 39 GPIO pins.
