Microcontrollers and Processors / Microprocessors / STM32MP157AAC3T
Datasheets
STM32MP157AAC3T by: STMicroelectronics

MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, 3D GPU, TFT/MIPI DSI displays, FD-CAN

Part Details for STM32MP157AAC3T by STMicroelectronics

Results Overview of STM32MP157AAC3T by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32MP157AAC3T Information

STM32MP157AAC3T by STMicroelectronics is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32MP157AAC3T

Part # Distributor Description Stock Price Buy
DISTI # 02AH7167
Newark Stm32Mp |Stmicroelectronics STM32MP157AAC3T RoHS: Not Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 497-19098-1-ND
DigiKey IC MPU STM32MP1 650MHZ 361TFBGA Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3504
In Stock
  • 1 $18.3100
  • 10 $14.5750
  • 25 $13.6404
  • 100 $12.6137
  • 250 $12.1244
  • 500 $11.8294
  • 1,800 $9.1302
$9.1302 / $18.3100 Buy Now
DISTI # STM32MP157AAC3T
Avnet Americas - Tape and Reel (Alt: STM32MP157AAC3T) RoHS: Not Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,800 $8.6534
  • 3,600 $8.6092
  • 7,200 $8.5651
  • 10,800 $8.5209
  • 14,400 $8.4768
$8.4768 / $8.6534 Buy Now
DISTI # STM32MP157AAC3T
Avnet Americas - Tape and Reel (Alt: STM32MP157AAC3T) RoHS: Not Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,800 $8.6534
  • 3,600 $8.6092
  • 7,200 $8.5651
  • 10,800 $8.5209
  • 14,400 $8.4768
$8.4768 / $8.6534 Buy Now
DISTI # 511-STM32MP157AAC3T
Mouser Electronics Microprocessors - MPU MPU Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, 3D GPU, T... FT more RoHS: Compliant 0
  • 1,800 $9.1300
$9.1300 Order Now
STMicroelectronics MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, 3D GPU, TFT/MIPI DSI displ... ays, FD-CAN more RoHS: Compliant Min Qty: 1 0
  • 1 $17.9400
  • 10 $14.2900
  • 25 $13.3100
  • 100 $12.1300
  • 250 $11.5600
  • 500 $11.2700
$11.2700 / $17.9400 Buy Now
DISTI # STM32MP157AAC3T
Avnet Silica (Alt: STM32MP157AAC3T) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32MP157AAC3T
EBV Elektronik (Alt: STM32MP157AAC3T) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
LCSC ARM-ASeries TFBGA-361 Microcontrollers (MCU/MPU/SOC) ROHS 1
  • 1 $11.9866
  • 10 $11.4419
  • 30 $10.5005
  • 100 $9.6783
$9.6783 / $11.9866 Buy Now
Vyrian Peripheral ICs 2992
RFQ

Part Details for STM32MP157AAC3T

STM32MP157AAC3T CAD Models

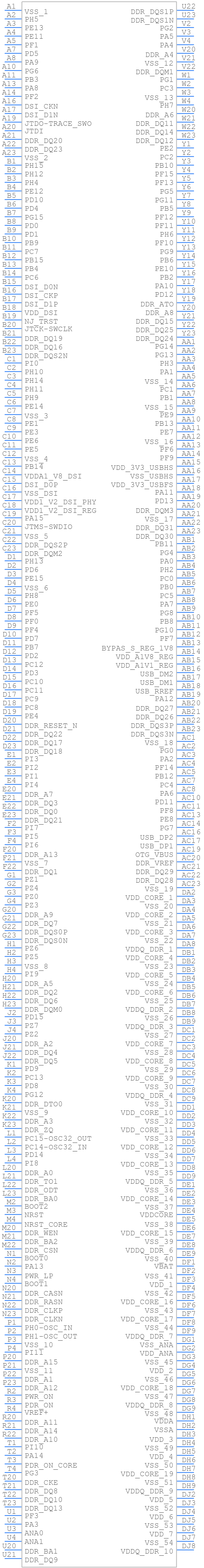

  • Part Symbol

    Part Symbol

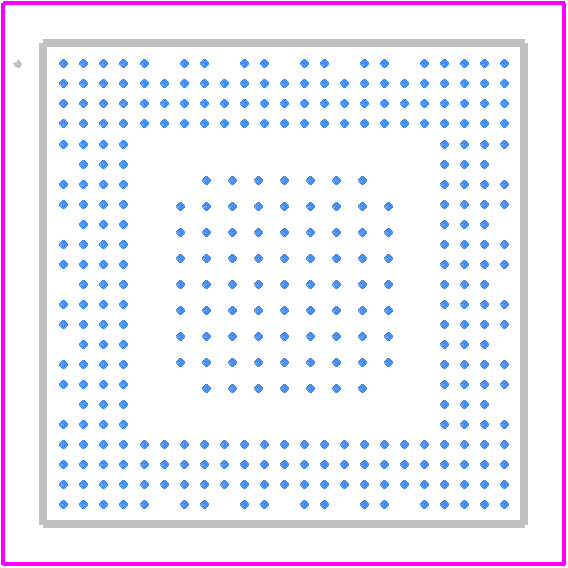

  • Footprint

    footprint

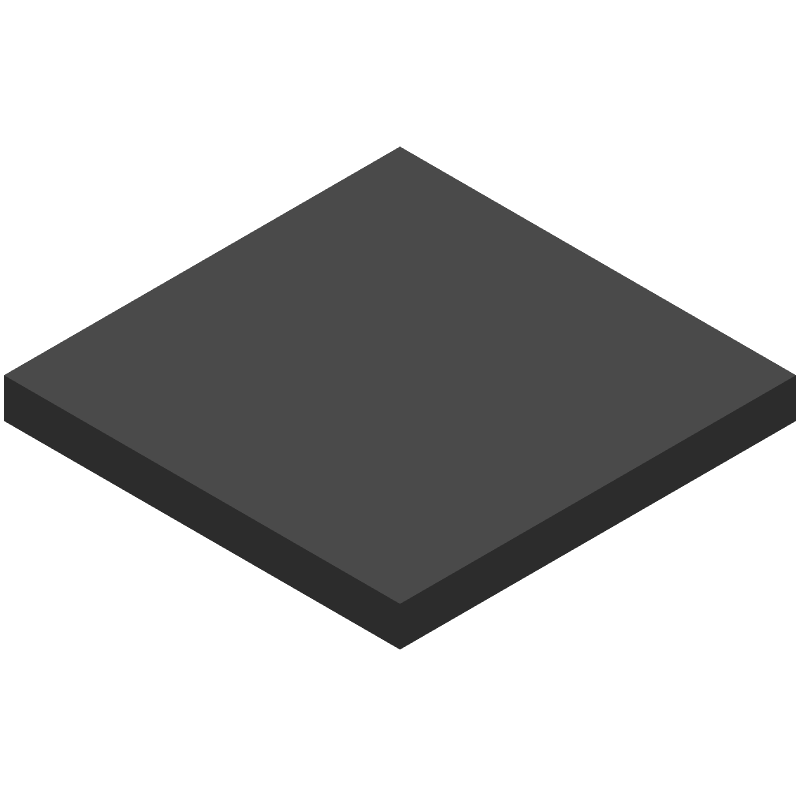

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32MP157AAC3T Part Data Attributes

Parametric Data
STM32MP157AAC3T STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32MP157AAC3T STMicroelectronics MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, 3D GPU, TFT/MIPI DSI displays, FD-CAN
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Address Bus Width 26
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 64 MHz
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B361
Length 12 mm
Low Power Mode YES
Number of DMA Channels 48
Number of Terminals 361
On Chip Data RAM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Shape SQUARE
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (words) 724992
Seated Height-Max 1.2 mm
Speed 650 MHz
Supply Current-Max 1000 mA
Supply Voltage-Max 1.25 V
Supply Voltage-Min 0.85 V
Supply Voltage-Nom 0.9 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form BALL
Terminal Pitch 0.65 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC

STM32MP157AAC3T Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the STM32MP157AAC3T is 650 MHz.

  • The STM32MP157AAC3T has 1 GB of flash memory.

  • The STM32MP157AAC3T has 528 KB of RAM.

  • Yes, the STM32MP157AAC3T supports Linux and is part of the STM32MP1 series, which is a Linux-capable microcontroller family.

  • The power consumption of the STM32MP157AAC3T varies depending on the operating mode, but it can be as low as 20 μA/MHz in low-power mode.
