Microcontrollers and Processors / Microcontrollers / STM32G030K6T6
Datasheets
STM32G030K6T6 by:
STMicroelectronics
Hongxing Electrical Ltd
STMicroelectronics
Not Found

Mainstream Value-Line Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, 2-3.6V

Part Details for STM32G030K6T6 by STMicroelectronics

Results Overview of STM32G030K6T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

STM32G030K6T6 Information

STM32G030K6T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G030K6T6

Part # Distributor Description Stock Price Buy
DISTI # 39AH5637
Newark Mcu, 32Bit, 64Mhz, Lqfp-32 Rohs Compliant: Yes |Stmicroelectronics STM32G030K6T6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1
  • 1 $0.2840
  • 10 $0.2840
  • 100 $0.2840
  • 500 $0.2840
$0.2840 Buy Now
DISTI # 497-19769-ND
DigiKey IC MCU 32BIT 32KB FLASH 32LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray 24646
In Stock
  • 1 $1.3300
  • 10 $0.9720
  • 25 $0.8832
  • 100 $0.7846
  • 250 $0.7377
  • 500 $0.7094
  • 1,500 $0.6966
$0.6966 / $1.3300 Buy Now
DISTI # 39AH5637
Avnet Americas Microcontroller 32-bit ARM Cortex-M0+ RISC 32KB Flash 3.3V 32-Pin LQFP Tray - Bulk (Alt: 39AH5637) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 3 Days Container: Bulk 1 Partner Stock
  • 1 $1.6600
  • 10 $1.3000
  • 100 $1.1200
  • 500 $1.0700
  • 1,000 $1.1700
$1.0700 / $1.6600 Buy Now
DISTI # STM32G030K6T6
Avnet Americas Microcontroller 32-bit ARM Cortex-M0+ RISC 32KB Flash 3.3V 32-Pin LQFP Tray - Trays (Alt: STM32G030K... 6T6) more RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $0.6969
  • 3,000 $0.6799
  • 6,000 $0.6717
  • 9,000 $0.6637
  • 12,000 $0.6559
$0.6559 / $0.6969 Buy Now
DISTI # 511-STM32G030K6T6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Value-Line Arm Cortex-M0+ MCU 32 Kbytes of Flash 8 Kbytes RAM,... 64 MHz more RoHS: Compliant 17509
  • 1 $1.2500
  • 10 $0.9150
  • 25 $0.8320
  • 100 $0.7440
$0.7440 / $1.2500 Buy Now
DISTI # V36:1790_23472755
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks Date Code: 2315 Americas - 19500
  • 1,500 $0.7250
$0.7250 Buy Now
STMicroelectronics Mainstream Value-Line Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2... x USART, timers, ADC, comm. I/F, 2-3.6V more RoHS: Compliant Min Qty: 1 17509
  • 1 $1.2300
  • 10 $0.9000
  • 25 $0.8200
  • 100 $0.7300
  • 250 $0.7300
  • 500 $0.7300
$0.7300 / $1.2300 Buy Now
Future Electronics 32-bit Microcontroller RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Bulk 0
Bulk
  • 1 $0.7650
  • 30 $0.7450
  • 100 $0.7200
  • 200 $0.7100
  • 500 $0.6750
$0.6750 / $0.7650 Buy Now
DISTI # 68494079
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Date Code: 2315 Americas - 19500
  • 1,500 $0.7250
$0.7250 Buy Now
DISTI # 79015409
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 8 Package Multiple: 1 Americas - 11496
  • 8 $1.0903
  • 10 $0.7921
  • 100 $0.6956
$0.6956 / $1.0903 Buy Now
DISTI # 72489294
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 38 Package Multiple: 1 Americas - 747
  • 39 $1.1600
$1.1600 Buy Now
DISTI # STM32G030K6T6
TME IC: STM32 ARM microcontroller, 64MHz, LQFP32, 2÷3.6VDC, -40÷85°C Min Qty: 1 183
  • 1 $1.6500
  • 10 $1.3100
  • 100 $1.1100
  • 150 $1.0700
  • 225 $1.0300
  • 250 $1.0200
  • 1,500 $0.9500
$0.9500 / $1.6500 Buy Now
DISTI # STM32G030K6T6
Avnet Silica Microcontroller 32bit ARM CortexM0 RISC 32KB Flash 33V 32Pin LQFP Tray (Alt: STM32G030K6T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32G030K6T6
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 747
  • 1 $1.1600
  • 10 $0.8190
  • 50 $0.7770
  • 100 $0.7630
  • 500 $0.7500
  • 1,000 $0.7430
  • 6,000 $0.6770
$0.6770 / $1.1600 Buy Now
DISTI # STM32G030K6T6
EBV Elektronik Microcontroller 32bit ARM CortexM0 RISC 32KB Flash 33V 32Pin LQFP Tray (Alt: STM32G030K6T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days EBV - 7250
Buy Now
LCSC ARM-M0 64MHz LQFP-32(7x7) Microcontrollers (MCU/MPU/SOC) ROHS 25772
  • 1 $0.9745
  • 10 $0.8587
  • 30 $0.7491
  • 250 $0.6672
  • 500 $0.6332
  • 1,000 $0.6162
$0.6162 / $0.9745 Buy Now
New Advantage Corporation ARM Based Microcontrollers RoHS: Compliant Min Qty: 1 Package Multiple: 1 2334
  • 1 $1.8000
$1.8000 Buy Now
Vyrian Peripheral ICs 13275
RFQ
Win Source Electronics IC MCU 32BIT 32KB FLASH 32LQFP 45000
  • 75 $0.6673
  • 165 $0.6243
  • 250 $0.6028
  • 360 $0.5597
  • 465 $0.5382
  • 585 $0.5167
$0.5167 / $0.6673 Buy Now

Part Details for STM32G030K6T6

STM32G030K6T6 CAD Models

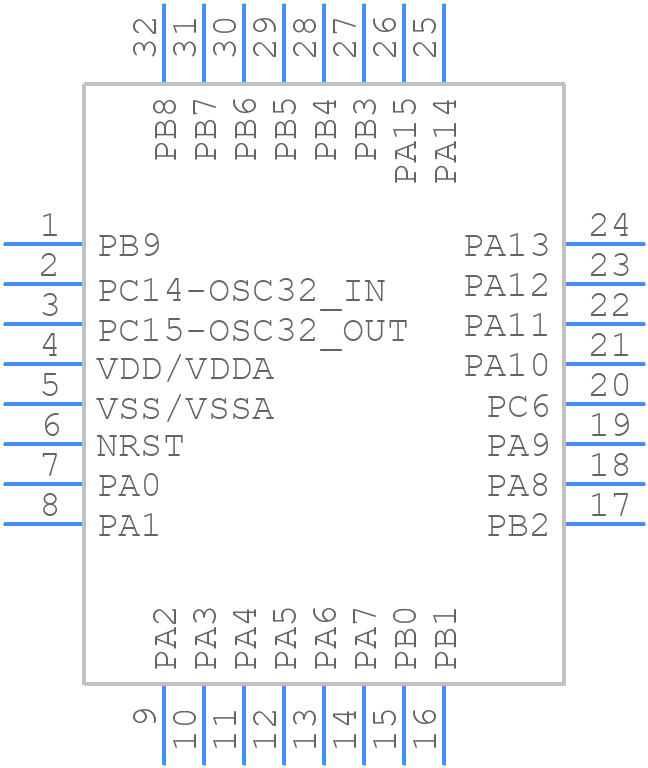

  • Part Symbol

    Part Symbol

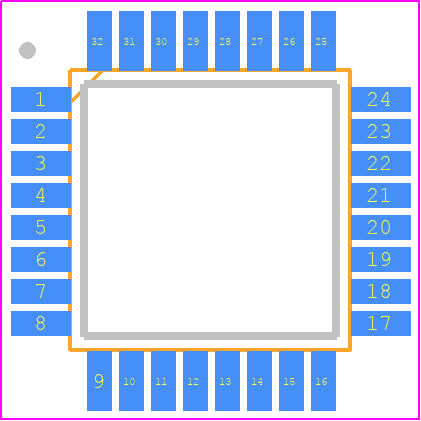

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G030K6T6 Part Data Attributes

Parametric Data
STM32G030K6T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G030K6T6 STMicroelectronics Mainstream Value-Line Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, 2-3.6V
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LQFP-32
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 18 Weeks, 3 Days
Date Of Intro 2019-08-13
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M0
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 5
Number of I/O Lines 29
Number of Serial I/Os 2
Number of Terminals 32
Number of Timers 6
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 8192
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 64 MHz
Supply Current-Max 8.3 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

STM32G030K6T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32G030K6T6 is 64 MHz.

  • The STM32G030K6T6 has 32 KB of flash memory.

  • No, the STM32G030K6T6 is a 3.3V device and should not be operated at 5V.

  • No, the STM32G030K6T6 does not have a built-in USB interface.

  • The STM32G030K6T6 has 2 UARTs.
