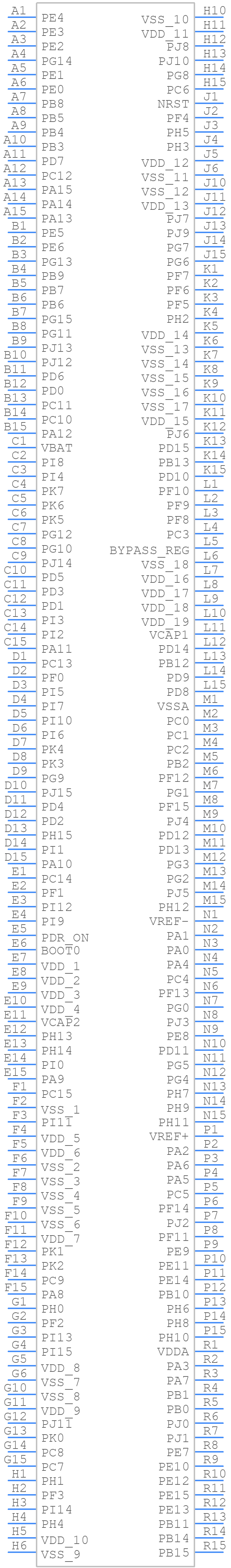

Part Symbol
-

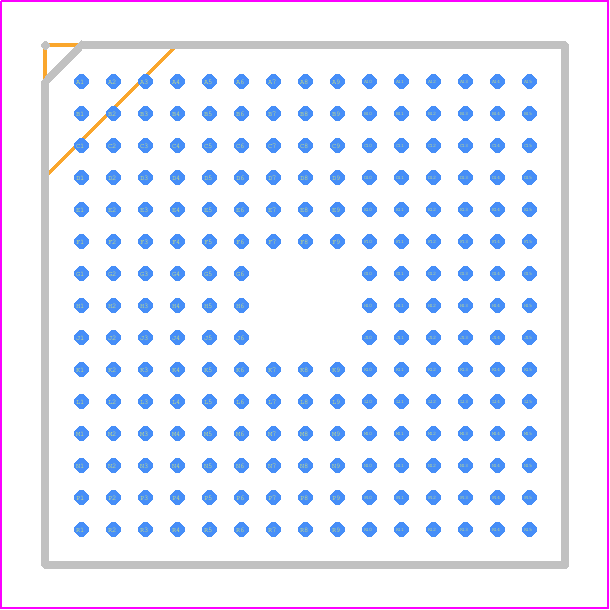

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32F429NIH6J by STMicroelectronics
Overview of STM32F429NIH6J by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 crosses)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
Price & Stock for STM32F429NIH6J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48AC3368
|
Newark | Stm32F |Stmicroelectronics STM32F429NIH6J Min Qty: 960 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$14.4700 | Buy Now |
|
DISTI #
71Y7156
|
Newark | 32 Bit Microcontroller, Arm Cortex-M4, 180 Mhz, 2 Mb, 260 Kb, 216, Tfbga Rohs Compliant: Yes |Stmicroelectronics STM32F429NIH6J Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$18.5300 / $24.8800 | Buy Now |
|
DISTI #
STM32F429NIH6J
|
Avnet Americas | MCU 32-Bit STM32 ARM Cortex M4 RISC 2MB Flash 216-pin UFBGA Tray - Trays (Alt: STM32F429NIH6J) RoHS: Not Compliant Min Qty: 960 Package Multiple: 960 Container: Tray | 0 |
|
RFQ | |
|
DISTI #
STM32F429NIH6J
|
Avnet Americas | MCU 32-Bit STM32 ARM Cortex M4 RISC 2MB Flash 216-pin UFBGA Tray - Trays (Alt: STM32F429NIH6J) RoHS: Not Compliant Min Qty: 960 Package Multiple: 960 Container: Tray | 0 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 2MB FLASH 216TFBGA / ARM® Cortex®-M4 series Microcontroller IC 32-Bit Single-Core 180MHz 2MB (2M x 8) FLASH 216-TFBGA (13x13) | 14750 |
|
$20.7250 / $31.0870 | Buy Now |
Part Details for STM32F429NIH6J
STM32F429NIH6J CAD Models
STM32F429NIH6J Part Data Attributes:
|
|
STM32F429NIH6J
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F429NIH6J
STMicroelectronics
High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, TFT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Manufacturer Package Code | TFBGA 13X13X1.2 216L P 0.8 MM | |
| Reach Compliance Code | unknown | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Clock Frequency-Max | 26 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 168 | |
| Number of Terminals | 216 | |
| PWM Channels | YES | |
| Package Code | TFBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Speed | 180 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 13 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
