Microcontrollers and Processors / Microcontrollers / STM32F302CCT7
Datasheets
STM32F302CCT7 by:
STMicroelectronics
Hongxing Electrical Ltd
STMicroelectronics
Not Found

Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 72 MHz CPU, MPU, 12-bit ADC 5 MSPS, PGA, comparators

Part Details for STM32F302CCT7 by STMicroelectronics

Results Overview of STM32F302CCT7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32F302CCT7 Information

STM32F302CCT7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F302CCT7

Part # Distributor Description Stock Price Buy
DISTI # 497-19167-ND
DigiKey IC MCU 32BIT 256KB FLASH 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray 2358
In Stock
  • 1 $6.0800
  • 10 $4.6890
  • 25 $4.3416
  • 100 $3.9599
  • 250 $3.8068
$3.8068 / $6.0800 Buy Now
DISTI # STM32F302CCT7
Avnet Americas MCU 32-Bit STM32 ARM Cortex M4 RISC 256KB Flash 2.5V/3.3V 48-Pin LQFP Tray - Trays (Alt: STM32F302CC... T7) more RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,500 $3.8070
  • 3,000 $3.7142
  • 6,000 $3.6694
  • 9,000 $3.6257
  • 12,000 $3.5831
$3.5831 / $3.8070 Buy Now
DISTI # 511-STM32F302CCT7
Mouser Electronics ARM Microcontrollers - MCU Mainstream Mixed signals MCUs Arm Cortex-M4 core DSP & FPU, 256 Kbyte... s of Flash more RoHS: Compliant 2652
  • 1 $5.1500
  • 10 $4.4200
  • 25 $3.8100
  • 1,500 $3.8000
$3.8000 / $5.1500 Buy Now
STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 72 MH... z CPU, MPU, 12-bit ADC 5 MSPS, PGA, comparators more RoHS: Compliant Min Qty: 1 2652
  • 1 $5.0500
  • 10 $4.3300
  • 25 $3.7300
  • 100 $3.7300
  • 250 $3.7300
  • 500 $3.7300
$3.7300 / $5.0500 Buy Now
DISTI # STM32F302CCT7
Avnet Silica MCU 32Bit STM32 ARM Cortex M4 RISC 256KB Flash 25V33V 48Pin LQFP Tray (Alt: STM32F302CCT7) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F302CCT7
EBV Elektronik MCU 32Bit STM32 ARM Cortex M4 RISC 256KB Flash 25V33V 48Pin LQFP Tray (Alt: STM32F302CCT7) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Peripheral ICs 2228
RFQ

Part Details for STM32F302CCT7

STM32F302CCT7 CAD Models

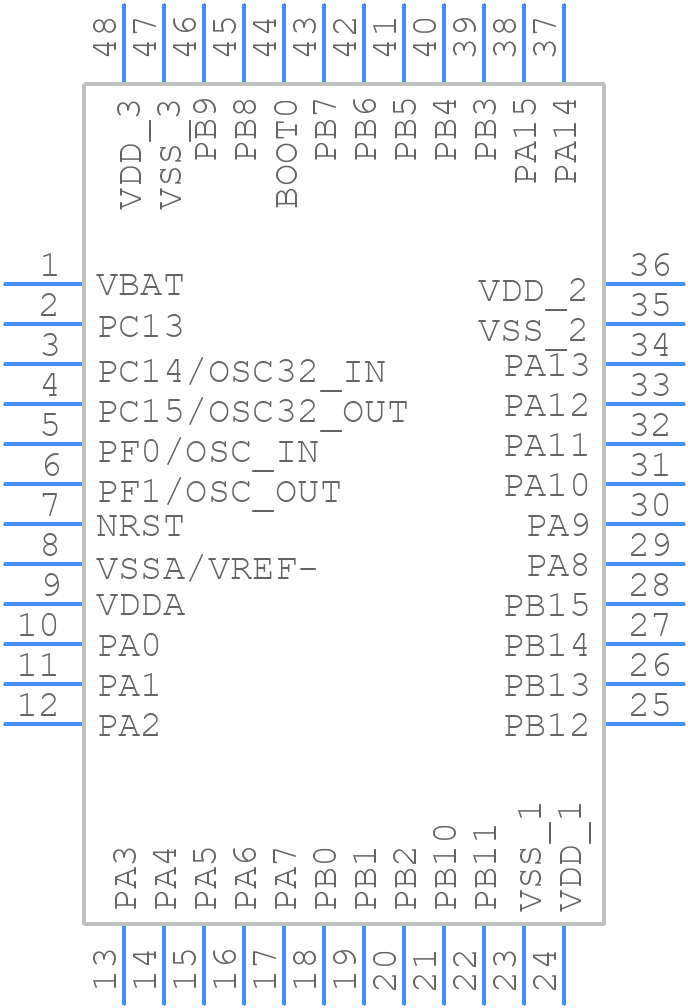

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F302CCT7 Part Data Attributes

Parametric Data
STM32F302CCT7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F302CCT7 STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 72 MHz CPU, MPU, 12-bit ADC 5 MSPS, PGA, comparators
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description 7 X 7 MM, ROHS COMPLIANT, LQFP-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M4F
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G48
JESD-609 Code e3
Length 7 mm
Moisture Sensitivity Level 3
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 32768
ROM (words) 262144
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 72 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F302CCT7

This table gives cross-reference parts and alternative options found for STM32F302CCT7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F302CCT7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F302CCT6 STMicroelectronics $5.6971 Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 72 MHz CPU, MPU, 12-bit ADC 5 MSPS, PGA, comparators STM32F302CCT7 vs STM32F302CCT6
STM32F302CCT7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F302CCT7 vs STM32F302CCT7XXX
STM32F302CCT7TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F302CCT7 vs STM32F302CCT7TR
STM32F302CCT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F302CCT7 vs STM32F302CCT6XXX

STM32F302CCT7 Related Parts

STM32F302CCT7 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F302CCT7 is 72 MHz.

  • The STM32F302CCT7 has 256 KB of flash memory.

  • No, the STM32F302CCT7 is a 3.3V device and should not be operated at 5V. Exceeding the recommended voltage may damage the device.

  • The power consumption of the STM32F302CCT7 depends on the operating mode and frequency. In low-power mode, the current consumption can be as low as 2.5 μA. In run mode, the current consumption is typically around 20-30 mA at 72 MHz.

  • Yes, the STM32F302CCT7 has a built-in USB 2.0 full-speed interface.
