STM32F205RFT6 by: STMicroelectronics

High-performance Arm Cortex-M3 MCU with 768 Kbytes of Flash memory, 120 MHz CPU, ART Accelerator

Part Details for STM32F205RFT6 by STMicroelectronics

Results Overview of STM32F205RFT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32F205RFT6 Information

STM32F205RFT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F205RFT6

Part # Distributor Description Stock Price Buy
DISTI # 497-11156-ND
DigiKey IC MCU 32BIT 768KB FLASH 64LQFP Min Qty: 1 Lead time: 15 Weeks Container: Tray Temporarily Out of Stock
  • 1 $12.2200
  • 10 $9.5970
  • 25 $8.9420
  • 160 $8.0344
  • 320 $7.7998
  • 640 $7.6068
  • 1,120 $7.4761
$7.4761 / $12.2200 Buy Now
DISTI # STM32F205RFT6
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 768KB Flash 2.5V/3.3V 64-Pin LQFP Tray - Trays (Alt: STM32F205R... FT6) more RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 960 $6.8750
  • 1,920 $6.7073
  • 3,840 $6.6265
  • 5,760 $6.5476
  • 7,680 $6.4706
$6.4706 / $6.8750 Buy Now
DISTI # STM32F205RFT6
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 768KB Flash 2.5V/3.3V 64-Pin LQFP Tray - Trays (Alt: STM32F205R... FT6) more RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 960 $6.8750
  • 1,920 $6.7073
  • 3,840 $6.6265
  • 5,760 $6.5476
  • 7,680 $6.4706
$6.4706 / $6.8750 Buy Now
DISTI # 511-STM32F205RFT6
Mouser Electronics ARM Microcontrollers - MCU 32BIT ARM Cortex M3 Connectivity 768kB RoHS: Compliant 183
  • 1 $14.1100
  • 10 $10.7200
  • 25 $10.2800
  • 100 $9.0600
  • 250 $7.6900
  • 500 $7.5200
  • 960 $7.3300
$7.3300 / $14.1100 Buy Now
STMicroelectronics High-performance Arm Cortex-M3 MCU with 768 Kbytes of Flash memory, 120 MHz CPU, ART Accelerator RoHS: Compliant Min Qty: 1 183
  • 1 $13.8300
  • 10 $10.5100
  • 25 $10.0700
  • 50 $10.0700
  • 100 $8.8800
  • 250 $7.5400
  • 500 $7.3700
$7.3700 / $13.8300 Buy Now
DISTI # 68496649
Verical MCU 32-bit ARM Cortex M3 RISC 768KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2320 Americas - 600
  • 1 $6.7403
$6.7403 Buy Now
DISTI # STM32F205RFT6
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 768KB Flash 25V33V 64Pin LQFP Tray (Alt: STM32F205RFT6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F205RFT6
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 768KB Flash 25V33V 64Pin LQFP Tray (Alt: STM32F205RFT6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 16 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Peripheral ICs 617
RFQ

Part Details for STM32F205RFT6

STM32F205RFT6 CAD Models

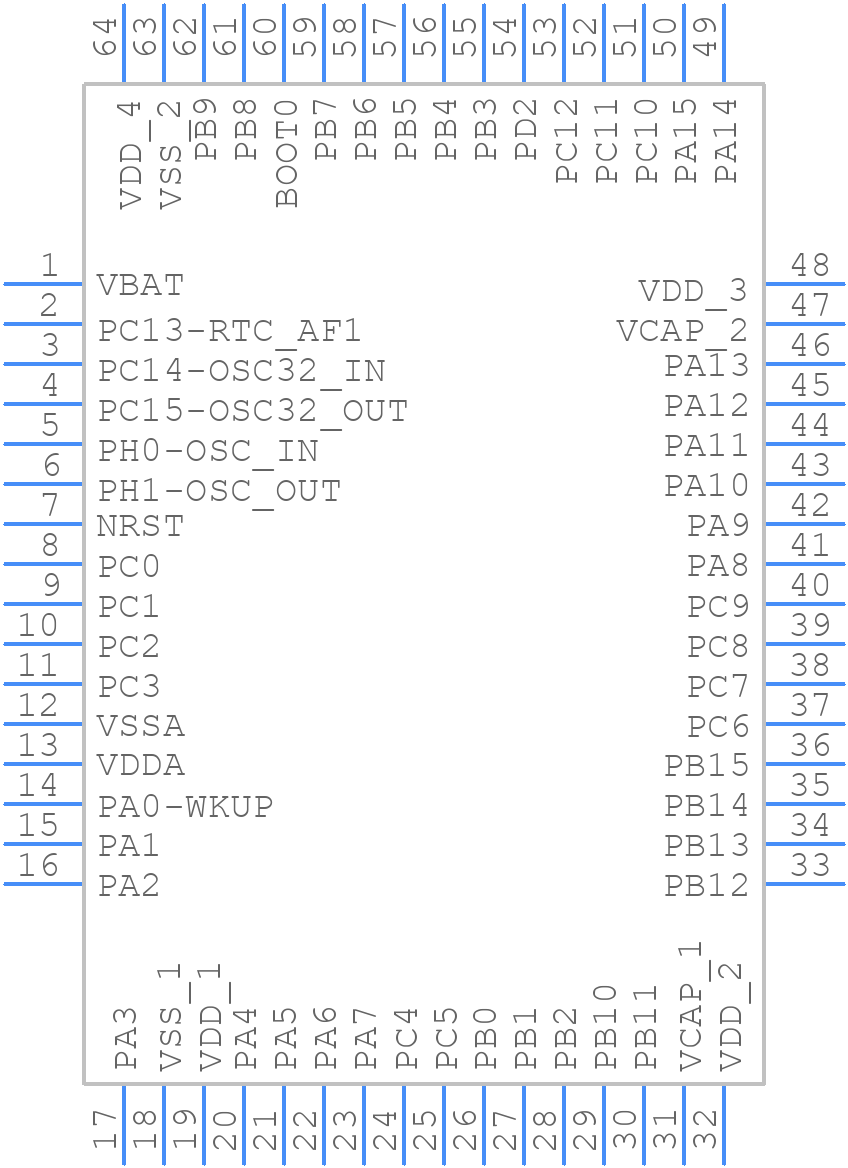

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F205RFT6 Part Data Attributes

Parametric Data
STM32F205RFT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F205RFT6 STMicroelectronics High-performance Arm Cortex-M3 MCU with 768 Kbytes of Flash memory, 120 MHz CPU, ART Accelerator
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-64
Pin Count 64
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 26 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 mm
Moisture Sensitivity Level 3
Number of DMA Channels
Number of I/O Lines 51
Number of Terminals 64
Number of Timers 17
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 131072
ROM (words) 786432
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 120 MHz
Supply Current-Max 81 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F205RFT6

This table gives cross-reference parts and alternative options found for STM32F205RFT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F205RFT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F205RFT6XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,64PIN,PLASTIC STM32F205RFT6 vs STM32F205RFT6XXXTR
STM32F205RFT7XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,64PIN,PLASTIC STM32F205RFT6 vs STM32F205RFT7XXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F205RFT6VXXX STMicroelectronics Check for Price RISC Microcontroller STM32F205RFT6 vs STM32F205RFT6VXXX
STM32F205RFT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 120MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F205RFT6 vs STM32F205RFT6XXX
STM32F205RFT6VTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F205RFT6 vs STM32F205RFT6VTR
STM32F205RFT7TR STMicroelectronics Check for Price 32-BIT, FLASH, 120MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F205RFT6 vs STM32F205RFT7TR
STM32F205RFT6TR STMicroelectronics Check for Price High-performance Arm Cortex-M3 MCU with 768 Kbytes of Flash memory, 120 MHz CPU, ART Accelerator STM32F205RFT6 vs STM32F205RFT6TR
STM32F205RFY7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 120MHz, RISC MICROCONTROLLER, PBGA66, 0.40 MM PITCH, ROHS COMPLIANT, WLCSP-66 STM32F205RFT6 vs STM32F205RFY7XXX
STM32F205RFY7TR STMicroelectronics Check for Price 32-BIT, FLASH, 120MHz, RISC MICROCONTROLLER, PBGA66, 0.40 MM PITCH, ROHS COMPLIANT, WLCSP-66 STM32F205RFT6 vs STM32F205RFY7TR
STM32F205RFY7VTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F205RFT6 vs STM32F205RFY7VTR
STM32F205RFY6VTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F205RFT6 vs STM32F205RFY6VTR
STM32F205RFY6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 120MHz, RISC MICROCONTROLLER, PBGA66, 0.40 MM PITCH, ROHS COMPLIANT, WLCSP-66 STM32F205RFT6 vs STM32F205RFY6XXX

STM32F205RFT6 Related Parts

STM32F205RFT6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F205RFT6 is 120 MHz.

  • You can configure the clock settings using the Clock Control Register (RCC) and the Power Control Register (PWR). Refer to the STM32F205RFT6 datasheet and the STM32F2xx Standard Peripheral Library documentation for more information.

  • The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 selects between the internal flash and system memory, while BOOT1 selects between the internal flash and an external memory device.

  • The DMA controller on the STM32F205RFT6 can be used to transfer data between peripherals and memory without CPU intervention. Refer to the STM32F205RFT6 datasheet and the STM32F2xx Standard Peripheral Library documentation for more information on configuring and using the DMA controller.

  • The STM32F205RFT6 has 128 KB of RAM and 1024 KB of flash memory.
