Microcontrollers and Processors / Microcontrollers / STM32F103VBT6TR
Datasheets
STM32F103VBT6TR by:
STMicroelectronics
Honest Han
STMicroelectronics
Not Found

Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN

Part Details for STM32F103VBT6TR by STMicroelectronics

Results Overview of STM32F103VBT6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

STM32F103VBT6TR Information

STM32F103VBT6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F103VBT6TR

Part # Distributor Description Stock Price Buy
DISTI # 497-17392-1-ND
DigiKey IC MCU 32BIT 128KB FLASH 100LQFP Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 773
In Stock
  • 1 $8.1400
  • 10 $6.3060
  • 25 $5.8484
  • 100 $5.3445
  • 250 $5.1044
  • 500 $4.9597
  • 1,000 $4.8406
  • 2,000 $4.7425
$4.7425 / $8.1400 Buy Now
DISTI # STM32F103VBT6TR
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 100-Pin LQFP T/R - Tape and Reel (Alt: ST... M32F103VBT6TR) more RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,000 $4.3929
  • 2,000 $4.2857
  • 4,000 $4.2341
  • 6,000 $4.1837
  • 8,000 $4.1345
$4.1345 / $4.3929 Buy Now
DISTI # 511-STM32F103VBT6TR
Mouser Electronics ARM Microcontrollers - MCU 32BIT CORTEX M3 128K Flash 20KB RAM RoHS: Compliant 9754
  • 1 $8.1400
  • 10 $6.3000
  • 25 $5.8500
  • 100 $5.3400
  • 250 $5.1000
  • 500 $4.9600
  • 1,000 $4.5600
$4.5600 / $8.1400 Buy Now
STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor co... ntrol, USB and CAN more RoHS: Compliant Min Qty: 1 9754
  • 1 $7.9800
  • 10 $6.1700
  • 25 $5.7300
  • 100 $5.2300
  • 250 $5.0000
  • 500 $4.8600
$4.8600 / $7.9800 Buy Now
DISTI # STM32F103VBT6TR
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 128KB Flash 25V33V 100Pin LQFP TR (Alt: STM32F103VBT6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Silica - 16000
Buy Now
DISTI # STM32F103VBT6TR
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 128KB Flash 25V33V 100Pin LQFP TR (Alt: STM32F103VBT6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days Silica - 1000
Buy Now
DISTI # STM32F103VBT6TR
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 128KB Flash 25V33V 100Pin LQFP TR (Alt: STM32F103VBT6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
LCSC ARM-M3 72MHz LQFP-100(14x14) Microcontrollers (MCU/MPU/SOC) ROHS 4
  • 1 $2.5990
  • 10 $2.4795
  • 30 $2.0916
  • 100 $2.0187
  • 500 $1.9861
  • 1,000 $1.9706
$1.9706 / $2.5990 Buy Now
Vyrian Peripheral ICs 19812
RFQ
Win Source Electronics IC MCU 32BIT 128KB FLASH 100LQFP / Medium-density performance line ARM-based 32-bit MCU with 64 or 1... 28 KB Flash, USB, CAN, 7 timers, 2 ADCs, 9 communication interfaces more 49670
  • 28 $1.8083
  • 60 $1.6917
  • 92 $1.6334
  • 132 $1.5167
  • 172 $1.4584
  • 215 $1.4000
$1.4000 / $1.8083 Buy Now

Part Details for STM32F103VBT6TR

STM32F103VBT6TR CAD Models

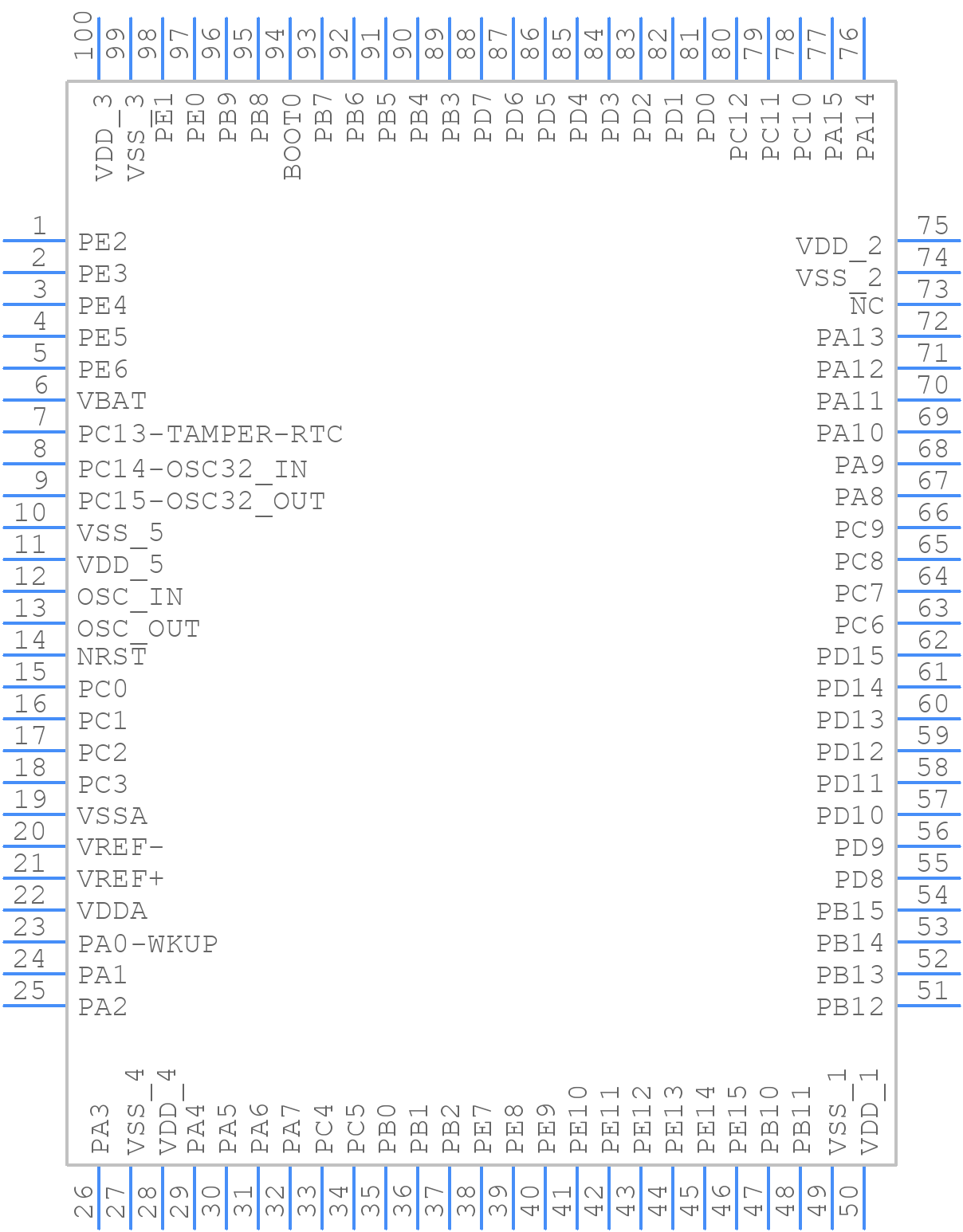

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F103VBT6TR Part Data Attributes

Parametric Data
STM32F103VBT6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F103VBT6TR STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Pin Count 100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width 32
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 72 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width 32
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 mm
Moisture Sensitivity Level 3
Number of I/O Lines 80
Number of Terminals 100
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 20480
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 1.25 MHz
Supply Current-Max 50 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F103VBT6TR

This table gives cross-reference parts and alternative options found for STM32F103VBT6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F103VBT6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F103VBT7XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F103VBT6TR vs STM32F103VBT7XXXTR
STM32F103VBT6XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F103VBT6TR vs STM32F103VBT6XXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F103VBT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 1.25MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F103VBT6TR vs STM32F103VBT6XXX
STM32F103VBT7 STMicroelectronics $3.7971 Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103VBT6TR vs STM32F103VBT7
STM32F103VBT7TR STMicroelectronics Check for Price Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103VBT6TR vs STM32F103VBT7TR
STM32F103VBT6 STMicroelectronics $4.7855 Mainstream Performance line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103VBT6TR vs STM32F103VBT6
STM32F103VCT7 STMicroelectronics Check for Price Mainstream Performance line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103VBT6TR vs STM32F103VCT7
STM32F103VCT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F103VBT6TR vs STM32F103VCT6XXX
STM32F103VCT6TR STMicroelectronics $5.1598 Mainstream Performance line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103VBT6TR vs STM32F103VCT6TR

STM32F103VBT6TR Related Parts

STM32F103VBT6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F103VBT6TR is 72 MHz.

  • The STM32F103VBT6TR has 128 KB of flash memory.

  • Yes, the STM32F103VBT6TR can operate with a power supply voltage range of 2.0V to 3.6V, making it compatible with 3.3V systems.

  • Yes, the STM32F103VBT6TR has a built-in USB 2.0 full-speed device interface.

  • The STM32F103VBT6TR has three USARTs (Universal Synchronous Asynchronous Receiver Transmitters) that can be used as UARTs.
