Microcontrollers and Processors / Microcontrollers / STM32F072CBU7
Datasheets
STM32F072CBU7 by: STMicroelectronics

Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions

Part Details for STM32F072CBU7 by STMicroelectronics

Results Overview of STM32F072CBU7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Healthcare Renewable Energy Automotive Robotics and Drones

STM32F072CBU7 Information

STM32F072CBU7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F072CBU7

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F072CBU7-ND
DigiKey IC MCU 32BIT 128KB FLSH 48UFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Tray 890
In Stock
  • 1 $5.0300
  • 10 $3.8350
  • 25 $3.5360
  • 100 $3.2069
  • 250 $3.0500
  • 500 $2.9554
  • 1,560 $2.8351
  • 3,120 $2.7785
$2.7785 / $5.0300 Buy Now
DISTI # STM32F072CBU7
Avnet Americas MCU 32-Bit GP STM32F 32MHz ARM Cortex M0+ RISC 128kB Flash 48-Pin UFQFPN Tray - Bulk (Alt: STM32F072... CBU7) more RoHS: Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 13 Weeks, 0 Days Container: Bulk 0
  • 1,560 $2.6811
  • 3,120 $2.6399
  • 6,240 $2.5986
  • 9,360 $2.5574
  • 12,480 $2.5264
$2.5264 / $2.6811 Buy Now
DISTI # 511-STM32F072CBU7
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0 USB line MCU 128 Kbytes of Flash 48 MHz CPU, USB... , CAN & more RoHS: Compliant 1225
  • 1 $5.0300
  • 10 $3.8400
  • 25 $3.5400
  • 100 $3.2100
  • 250 $3.0500
  • 500 $2.9600
  • 1,000 $2.7500
  • 2,500 $2.7300
$2.7300 / $5.0300 Buy Now
DISTI # V36:1790_17042572
Arrow Electronics MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V 48-Pin UFQFPN Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2348 Americas - 1359
  • 1 $3.3480
  • 10 $2.4770
  • 25 $2.4720
$2.4720 / $3.3480 Buy Now
STMicroelectronics Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC ... functions more RoHS: Compliant Min Qty: 1 1225
  • 1 $4.9300
  • 10 $3.7600
  • 25 $3.4700
  • 100 $3.1500
  • 250 $2.9900
  • 500 $2.9000
$2.9000 / $4.9300 Buy Now
DISTI # 84438648
Verical MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V 48-Pin UFQFPN Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2348 Americas - 1359
  • 3 $3.3480
  • 10 $2.4770
  • 25 $2.4720
$2.4720 / $3.3480 Buy Now
DISTI # STM32F072CBU7
Avnet Silica MCU 32Bit GP STM32F 32MHz ARM Cortex M0 RISC 128kB Flash 48Pin UFQFPN Tray (Alt: STM32F072CBU7) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F072CBU7
EBV Elektronik MCU 32Bit GP STM32F 32MHz ARM Cortex M0 RISC 128kB Flash 48Pin UFQFPN Tray (Alt: STM32F072CBU7) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days EBV - 1040
Buy Now
Vyrian Peripheral ICs 911
RFQ

Part Details for STM32F072CBU7

STM32F072CBU7 CAD Models

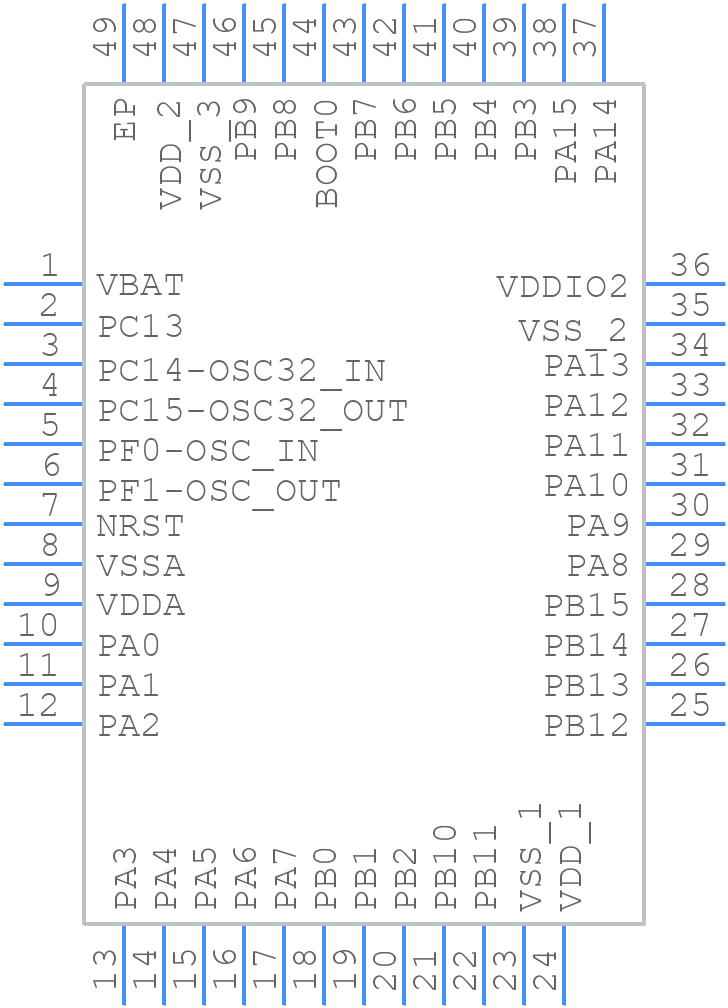

  • Part Symbol

    Part Symbol

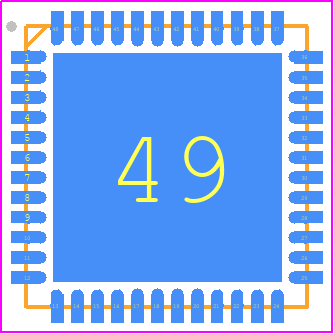

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F072CBU7 Part Data Attributes

Parametric Data
STM32F072CBU7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F072CBU7 STMicroelectronics Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description UFQFPN-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M0
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-XQCC-N48
Length 7 mm
Number of DMA Channels
Number of I/O Lines 37
Number of Terminals 48
Number of Timers 12
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC48,.27SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
RAM (bytes) 16384
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 0.6 mm
Speed 48 MHz
Supply Current-Max 27.9 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F072CBU7

This table gives cross-reference parts and alternative options found for STM32F072CBU7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F072CBU7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F072CBU7XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M0 CPU,CMOS,LLCC,48PIN,PLASTIC STM32F072CBU7 vs STM32F072CBU7XXXTR
STM32F072CBU6XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M0 CPU,CMOS,LLCC,48PIN,PLASTIC STM32F072CBU7 vs STM32F072CBU6XXXTR
STM32F072CBU6TR STMicroelectronics Check for Price Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions STM32F072CBU7 vs STM32F072CBU6TR
Part Number Manufacturer Composite Price Description Compare
STM32F072CBU7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 48MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFQFPN-48 STM32F072CBU7 vs STM32F072CBU7XXX
STM32F071CBU6XXX STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F072CBU7 vs STM32F071CBU6XXX
STM32F072CBT7 STMicroelectronics $3.4374 Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions STM32F072CBU7 vs STM32F072CBT7
STM32F072CBT7TR STMicroelectronics Check for Price 32-BIT, FLASH, 48MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F072CBU7 vs STM32F072CBT7TR
STM32F072CBU7TR STMicroelectronics Check for Price Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions STM32F072CBU7 vs STM32F072CBU7TR
STM32F071CBU6 STMicroelectronics $2.9726 Mainstream Arm Cortex-M0 Access line MCU with 128 Kbytes of Flash memory, 48 MHz CPU and CEC functions STM32F072CBU7 vs STM32F071CBU6
STM32F071CBY6TR STMicroelectronics Check for Price Mainstream Arm Cortex-M0 Access line MCU with 128 Kbytes of Flash memory, 48 MHz CPU and CEC functions STM32F072CBU7 vs STM32F071CBY6TR
STM32F071CBT7XXX STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F072CBU7 vs STM32F071CBT7XXX
STM32F072CBT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 48MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F072CBU7 vs STM32F072CBT6XXX
STM32F072CBY7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 48MHz, RISC MICROCONTROLLER, PBGA49, 3.277 X 3.109 MM, 0.40 MM PITCH, ROHS COMPLIANT, WLCSP-49 STM32F072CBU7 vs STM32F072CBY7XXX

STM32F072CBU7 Related Parts

STM32F072CBU7 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F072CBU7 is 48 MHz.

  • The STM32F072CBU7 has 128 KB of flash memory.

  • Yes, the STM32F072CBU7 can operate in the industrial temperature range of -40°C to 85°C.

  • Yes, the STM32F072CBU7 has a built-in USB 2.0 full-speed interface.

  • The STM32F072CBU7 has 3 UARTs.
