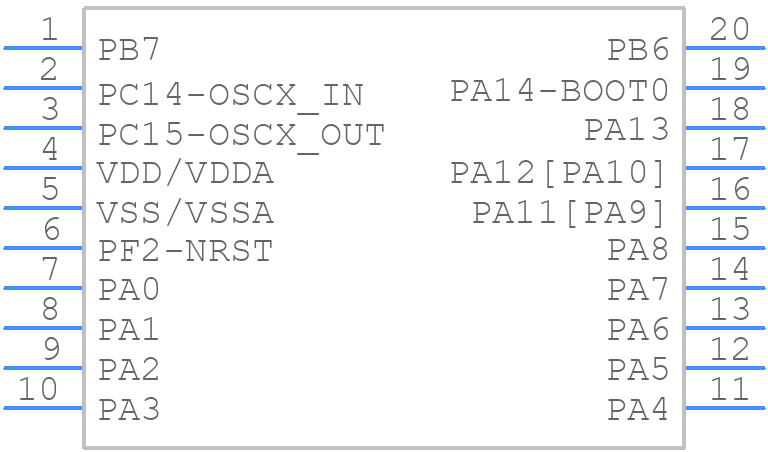

Part Symbol
-

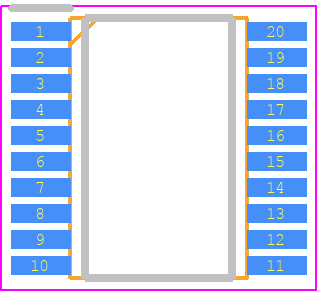

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32C031F6P6 by STMicroelectronics
Overview of STM32C031F6P6 by STMicroelectronics
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Automotive
Price & Stock for STM32C031F6P6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AK2335
|
Newark | Arm Mcu, 32Bit, 48Mhz, Tssop-20 Rohs Compliant: Yes |Stmicroelectronics STM32C031F6P6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.7490 / $1.6700 | Buy Now |
|
DISTI #
497-STM32C031F6P6-ND
|
DigiKey | IC MCU 32BIT 32KB FLASH 20TSSOP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
1352 In Stock |
|
$0.6059 / $1.2700 | Buy Now |
|
DISTI #
STM32C031F6P6
|
Avnet Americas | ARM MCU, STM32 Family STM32C0 Series Microcontrollers, ARM Cortex-M0+, 32 bit, 48 MHz, 32 KB - Trays (Alt: STM32C031F6P6) RoHS: Not Compliant Min Qty: 1480 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tray | 1480 |
|
$0.5196 / $0.5521 | Buy Now |
|
DISTI #
511-STM32C031F6P6
|
Mouser Electronics | ARM Microcontrollers - MCU Mainstream Arm Cortex-M0+ MCU 32 Kbytes Flash 12 Kbytes RAM 48 MHz CPU 2x USART RoHS: Compliant | 1917 |
|
$0.5700 / $1.5000 | Buy Now |
|
|
STMicroelectronics | Mainstream Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 12 Kbytes RAM, 48 MHz CPU, 2x USART, timers, ADC, comm. I/F, 2-3.6V RoHS: Compliant Min Qty: 1 | 842 |
|
$0.6600 / $1.2500 | Buy Now |
|
|
Future Electronics | ArmCortex-M0+ 32-bit MCU, 32KB Flash, 12KB RAM, 2 x USART, timers, ADC, comm RoHS: Compliant pbFree: Yes Min Qty: 1480 Package Multiple: 1480 Lead time: 13 Weeks Container: Tube | 59200Tube |
|
$0.5250 | Buy Now |
|
|
Future Electronics | ArmCortex-M0+ 32-bit MCU, 32KB Flash, 12KB RAM, 2 x USART, timers, ADC, comm RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Container: Tube | 0Tube |
|
$0.5250 / $0.6300 | Buy Now |
|
|
Future Electronics | ArmCortex-M0+ 32-bit MCU, 32KB Flash, 12KB RAM, 2 x USART, timers, ADC, comm RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Container: Bulk | 0Bulk |
|
$0.5250 / $0.6450 | Buy Now |
|
DISTI #
84977908
|
Verical | MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 20-Pin TSSOP Tray RoHS: Compliant Min Qty: 19 Package Multiple: 1 | Americas - 200 |
|
$0.9975 / $1.7125 | Buy Now |
|
DISTI #
STM32C031F6P6
|
TME | IC: STM32 ARM microcontroller, 48MHz, TSSOP20, 2÷3.6VDC, -40÷85°C Min Qty: 1 | 130 |
|
$1.1200 / $1.6400 | Buy Now |
Part Details for STM32C031F6P6
STM32C031F6P6 CAD Models
STM32C031F6P6 Part Data Attributes
|
|
STM32C031F6P6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32C031F6P6
STMicroelectronics
RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 48MHz, CMOS, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | TSSOP-20 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Bit Size | 32 | |
| Boundary Scan | NO | |
| CPU Family | Cortex-M0+ | |
| Clock Frequency-Max | 48 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of DMA Channels | 3 | |
| Number of I/O Lines | 18 | |
| Number of Serial I/Os | 2 | |
| Number of Terminals | 20 | |
| Number of Timers | 6 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| RAM (bytes) | 12288 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 48 MHz | |
| Supply Current-Max | 4.1 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
