STEF033APUR by: STMicroelectronics

Electronic fuse for 3.3 V line

Part Details for STEF033APUR by STMicroelectronics

Results Overview of STEF033APUR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STEF033APUR Information

STEF033APUR by STMicroelectronics is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for STEF033APUR

Part # Distributor Description Stock Price Buy
DISTI # 48AK5879
Newark Electronic Fuse, 3.3V, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics STEF033APUR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1968
  • 1 $1.3200
  • 10 $1.0200
  • 25 $0.9470
  • 50 $0.9060
  • 100 $0.8650
  • 250 $0.8260
  • 500 $0.8020
  • 1,000 $0.7830
$0.7830 / $1.3200 Buy Now
DISTI # 497-15424-1-ND
DigiKey IC ELECTRONIC FUSE 10DFN Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2776
In Stock
  • 1 $1.0600
  • 10 $0.7660
  • 25 $0.6920
  • 100 $0.6103
  • 250 $0.5714
  • 500 $0.5479
  • 1,000 $0.5286
  • 3,000 $0.5047
  • 6,000 $0.4931
  • 9,000 $0.4872
  • 15,000 $0.4808
$0.4808 / $1.0600 Buy Now
DISTI # STEF033APUR
Avnet Americas Fuse Surface Mount 3.6A 8V 10-Pin SMD T/R - Tape and Reel (Alt: STEF033APUR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.4553
  • 6,000 $0.4525
  • 12,000 $0.4485
  • 18,000 $0.4462
  • 24,000 $0.4439
$0.4439 / $0.4553 Buy Now
DISTI # STEF033APUR
Avnet Americas Fuse Surface Mount 3.6A 8V 10-Pin SMD T/R - Tape and Reel (Alt: STEF033APUR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.4553
  • 6,000 $0.4525
  • 12,000 $0.4485
  • 18,000 $0.4462
  • 24,000 $0.4439
$0.4439 / $0.4553 Buy Now
DISTI # 511-STEF033APUR
Mouser Electronics Hot Swap Voltage Controllers Electronic fuse for 3.3 V line RoHS: Compliant 0
  • 3,000 $0.4930
  • 6,000 $0.4870
$0.4870 / $0.4930 Order Now
DISTI # V36:1790_13796500
Arrow Electronics Fuse Electronic 3.6A 10V SMD Solder Pad 3x3x0.9mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Date Code: 2333 Americas - 6000
  • 3,000 $0.4529
  • 6,000 $0.4467
  • 9,000 $0.4391
  • 15,000 $0.4347
$0.4347 / $0.4529 Buy Now
DISTI # V72:2272_13796500
Arrow Electronics Fuse Electronic 3.6A 10V SMD Solder Pad 3x3x0.9mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2333 Container: Cut Strips Americas - 2795
  • 1 $0.5030
  • 10 $0.4729
  • 25 $0.4706
  • 100 $0.4683
  • 250 $0.4659
  • 500 $0.4636
  • 1,000 $0.4613
$0.4613 / $0.5030 Buy Now
DISTI # 78403708
Verical Fuse Electronic 3.6A 10V SMD Solder Pad 3x3x0.9mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2333 Americas - 6000
  • 3,000 $0.4529
  • 6,000 $0.4467
  • 9,000 $0.4391
  • 15,000 $0.4347
$0.4347 / $0.4529 Buy Now
DISTI # 69894542
Verical Fuse Electronic 3.6A 10V SMD Solder Pad 3x3x0.9mm T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2333 Americas - 2795
  • 13 $0.4729
  • 25 $0.4706
  • 100 $0.4683
  • 250 $0.4659
  • 500 $0.4636
  • 1,000 $0.4613
$0.4613 / $0.4729 Buy Now
DISTI # STEF033APUR
Avnet Silica Fuse Surface Mount 36A 8V 10Pin SMD TR (Alt: STEF033APUR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Silica - 3000
Buy Now
DISTI # STEF033APUR
EBV Elektronik Fuse Surface Mount 36A 8V 10Pin SMD TR (Alt: STEF033APUR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STEF033APUR

STEF033APUR CAD Models

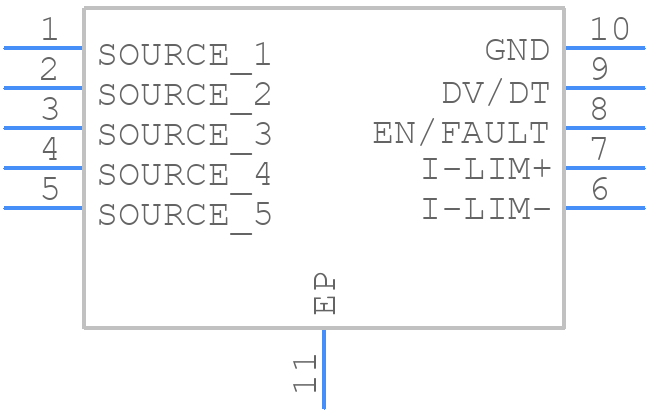

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STEF033APUR Part Data Attributes

Parametric Data
STEF033APUR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STEF033APUR STMicroelectronics Electronic fuse for 3.3 V line
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description DFN-10
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 20 Weeks
Samacsys Manufacturer STMicroelectronics
Adjustable Threshold YES
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code R-PDSO-N10
Length 3 mm
Number of Channels 1
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SON
Package Equivalence Code SOLCC10,.12,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 8 V
Supply Voltage-Min (Vsup) 3.1 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3 mm
