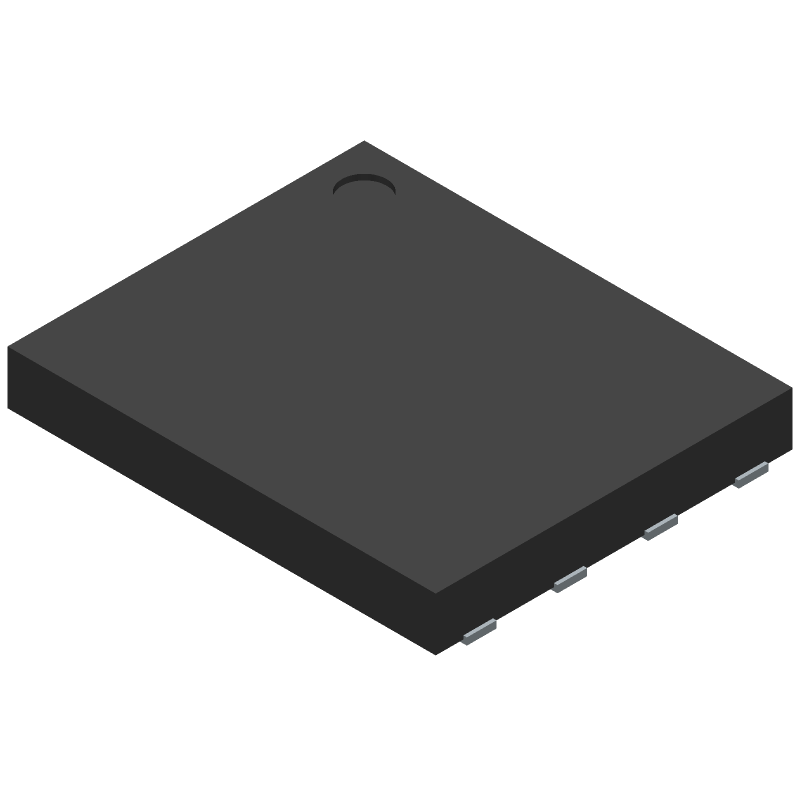

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SST26VF040A-104I/MF by Microchip Technology Inc
Results Overview of SST26VF040A-104I/MF by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SST26VF040A-104I/MF Information
SST26VF040A-104I/MF by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for SST26VF040A-104I/MF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67AH4678
|
Newark | 4Mb, 2.3V To 3.6V, Spi, sdi, sqi, 104Mhz, I Temp, 8-Dfn 8 Tdfn-S 6X5X0.8Mm Tube Rohs Compliant: Yes ... more RoHS: Compliant Min Qty: 588 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.2800 | Buy Now |
|
DISTI #
150-SST26VF040A-104I/MF-ND
|
DigiKey | IC FLASH 4MBIT SPI/QUAD 8WDFN Min Qty: 1 Lead time: 7 Weeks Container: Tube |
91 In Stock |
|
$1.3492 / $1.4200 | Buy Now |
|
DISTI #
SST26VF040A-104I/MF
|
Avnet Americas | Flash Memory, Serial NOR, 4 Mbit, 512K x 8bit, SPI, WDFN, 8 Pins - Rail/Tube (Alt: SST26VF040A-104I/... more RoHS: Not Compliant Min Qty: 588 Package Multiple: 98 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$1.1349 / $1.2125 | Buy Now |
|
DISTI #
579-26VF040A-104I/MF
|
Mouser Electronics | NOR Flash 4Mb, 2.3V to 3.6V, SPI,SDI,SQI, 104MHz, I temp, 8-DFN RoHS: Compliant | 783 |
|
$1.2800 / $1.3800 | Buy Now |
|
DISTI #
SST26VF040A-104I/MF
|
Microchip Technology Inc | 4Mb 2.3V TO 3.6V SQI Flash Memory, TDFN-S, Projected EOL: 2044-03-19 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube |
344 Alternates Available |
|
$1.1300 / $1.3800 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 588 Package Multiple: 98 | 0 |
|
$1.2200 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 294 Factory Stock |
|
$1.3300 / $1.9400 | Buy Now |
|
DISTI #
26VF040A-104I/MF
|
TME | IC: FLASH memory, 4MbFLASH, SPI,SQI, 104MHz, 2.3÷3.6V, TDFN8 Min Qty: 1 | 92 |
|
$1.4200 / $1.6500 | Buy Now |
|
|
NAC | RoHS: Compliant Min Qty: 294 Package Multiple: 98 | 0 |
|
$1.2100 / $1.4900 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 294 Factory Stock |
|
$1.3300 / $1.9400 | Buy Now |
Part Details for SST26VF040A-104I/MF
SST26VF040A-104I/MF CAD Models
SST26VF040A-104I/MF Part Data Attributes
|
|
SST26VF040A-104I/MF
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SST26VF040A-104I/MF
Microchip Technology Inc
Flash
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.B.1.A | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Clock Frequency-Max (fCLK) | 104 MHz | |
| Data Retention Time-Min | 100 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 6 mm | |
| Memory Density | 4194304 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 4194304 words | |
| Number of Words Code | 4000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 4MX1 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3 V | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.8 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.00002 A | |
| Supply Current-Max | 0.025 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Type | NOR TYPE | |
| Width | 5 mm | |
| Write Protection | HARDWARE/SOFTWARE |
