Diodes / Rectifier Diodes / SR1010
Datasheets
SR1010 by:
Micro Commercial Components
Bytesonic Corporation
Caddock Electronics Inc
Comchip Technology Corporation Ltd
Daco Semiconductor Co Ltd
E-tec Interconnect Ltd
Fairchild Semiconductor Corporation
FCI Semiconductor
Frontier Electronics Co Ltd
Goodwork Semiconductor Co Ltd
HY Electronic Corp
Isabellenhuette
Littelfuse Inc
Micro Commercial Components
Microsemi Corporation
Nemco Electronics Corporation
Powerohm Resistors Inc
Qualcomm
Rectron Semiconductor
Samsung Semiconductor
Samtec Inc
Samwha Electronics
Secos Corporation
SEI Stackpole Electronics Inc
Shanghai Lunsure Electronic Technology Co Ltd
Solid State Devices Inc (SSDI)
Suntsu Electronics Inc
Taiwan Semiconductor
TE Connectivity
Uniohm Corp
Usha Ltd
Vishay Dale
Vishay Intertechnologies
Yangzhou Yangjie Electronics Co Ltd
Not Found

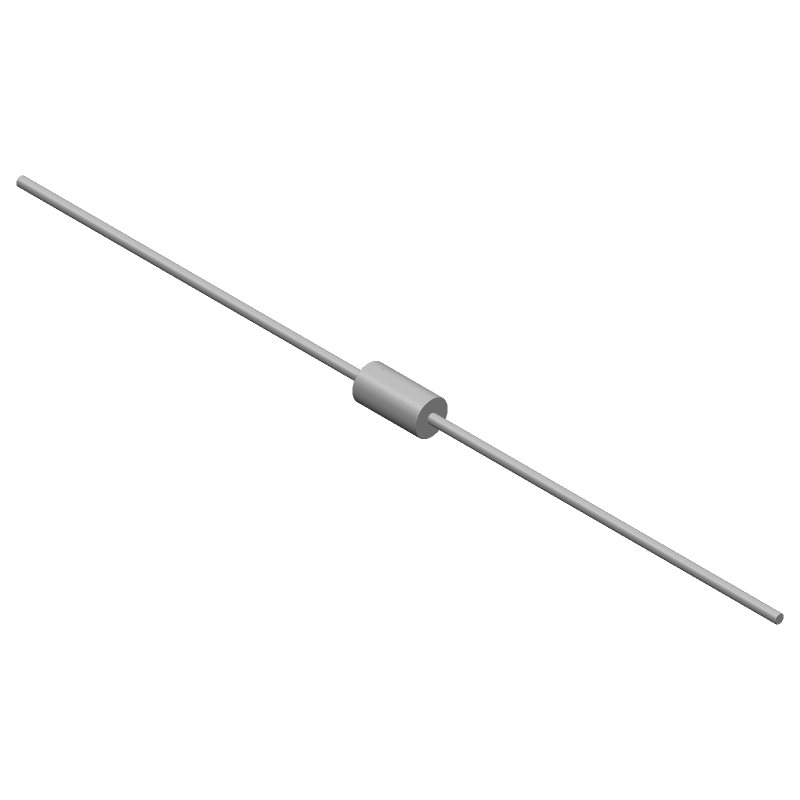

Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN

Part Details for SR1010 by Micro Commercial Components

Results Overview of SR1010 by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

SR1010 Information

SR1010 by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for SR1010

SR1010 Part Data Attributes

Parametric Data
SR1010 Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SR1010 Micro Commercial Components Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN
Select a part to compare:
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description DO-41, 2 PIN
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.85 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e0
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 100 µA
Surface Mount NO
Technology SCHOTTKY
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position AXIAL

Alternate Parts for SR1010

This table gives cross-reference parts and alternative options found for SR1010. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SR1010, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SB1100.TR Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41 SR1010 vs SB1100.TR
V19B Renesas Electronics Corporation Check for Price 1A, 100V, SILICON, SIGNAL DIODE SR1010 vs V19B
SDR1B Solid State Devices Inc (SSDI) Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, SR1010 vs SDR1B
SR1010-TP Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010 vs SR1010-TP
Part Number Manufacturer Composite Price Description Compare
SB1100 Fagor Electrónica Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010 vs SB1100
SB1100 Gulfsemi Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN SR1010 vs SB1100
SB1100T50A Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010 vs SB1100T50A
SB1100T50R Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010 vs SB1100T50R
SB1100 SEMIKRON Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN SR1010 vs SB1100
SB1100-B Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010 vs SB1100-B
SB1100 Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010 vs SB1100
SB1100 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 SR1010 vs SB1100
SB1100 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN SR1010 vs SB1100
SB1100-T Diodes Incorporated $0.2278 Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010 vs SB1100-T
