Diodes / Rectifier Diodes / SR1010-TP
Datasheets
SR1010-TP by: Micro Commercial Components

Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for SR1010-TP by Micro Commercial Components

Results Overview of SR1010-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

SR1010-TP Information

SR1010-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SR1010-TP

Part # Distributor Description Stock Price Buy
DISTI # SR1010-TPTR-ND
DigiKey DIODE SCHOTTKY 100V 1A DO41 Min Qty: 5000 Lead time: 16 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.0596
  • 10,000 $0.0510
  • 15,000 $0.0491
  • 25,000 $0.0459
  • 35,000 $0.0427
  • 50,000 $0.0412
  • 125,000 $0.0400
$0.0400 / $0.0596 Buy Now
DISTI # 833-SR1010-TP
Mouser Electronics Schottky Diodes & Rectifiers DIODE SCHOTTKY 100V 1A DO41 RoHS: Compliant 3483
  • 1 $0.3500
  • 10 $0.2590
  • 100 $0.1470
  • 500 $0.0990
  • 1,000 $0.0750
  • 2,500 $0.0650
  • 5,000 $0.0570
  • 10,000 $0.0490
  • 25,000 $0.0430
$0.0430 / $0.3500 Buy Now

Part Details for SR1010-TP

SR1010-TP CAD Models

  • Part Symbol

    Part Symbol

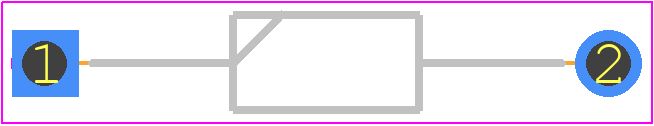

  • Footprint

    footprint

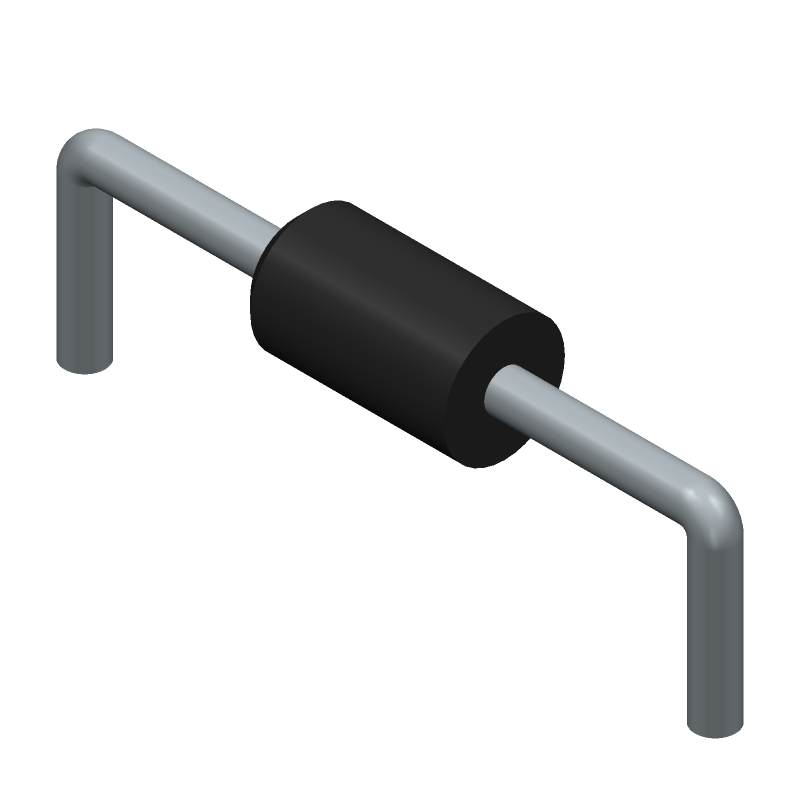

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SR1010-TP Part Data Attributes

Parametric Data
SR1010-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SR1010-TP Micro Commercial Components Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Additional Feature LOW POWER LOSS
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.85 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 100 µA
Surface Mount NO
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SR1010-TP

This table gives cross-reference parts and alternative options found for SR1010-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SR1010-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SB1100.TR Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41 SR1010-TP vs SB1100.TR
V19B Renesas Electronics Corporation Check for Price 1A, 100V, SILICON, SIGNAL DIODE SR1010-TP vs V19B
SDR1B Solid State Devices Inc (SSDI) Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, SR1010-TP vs SDR1B
SR1010 Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN SR1010-TP vs SR1010
Part Number Manufacturer Composite Price Description Compare
SB1100 Fagor Electrónica Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010-TP vs SB1100
SB1100 Gulfsemi Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN SR1010-TP vs SB1100
SB1100T50A Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010-TP vs SB1100T50A
SB1100T50R Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010-TP vs SB1100T50R
SB1100 SEMIKRON Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN SR1010-TP vs SB1100
SB1100-B Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010-TP vs SB1100-B
SB1100 Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN SR1010-TP vs SB1100
SB1100 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 SR1010-TP vs SB1100
SB1100 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN SR1010-TP vs SB1100
SB1100-T Diodes Incorporated $0.2278 Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 SR1010-TP vs SB1100-T
