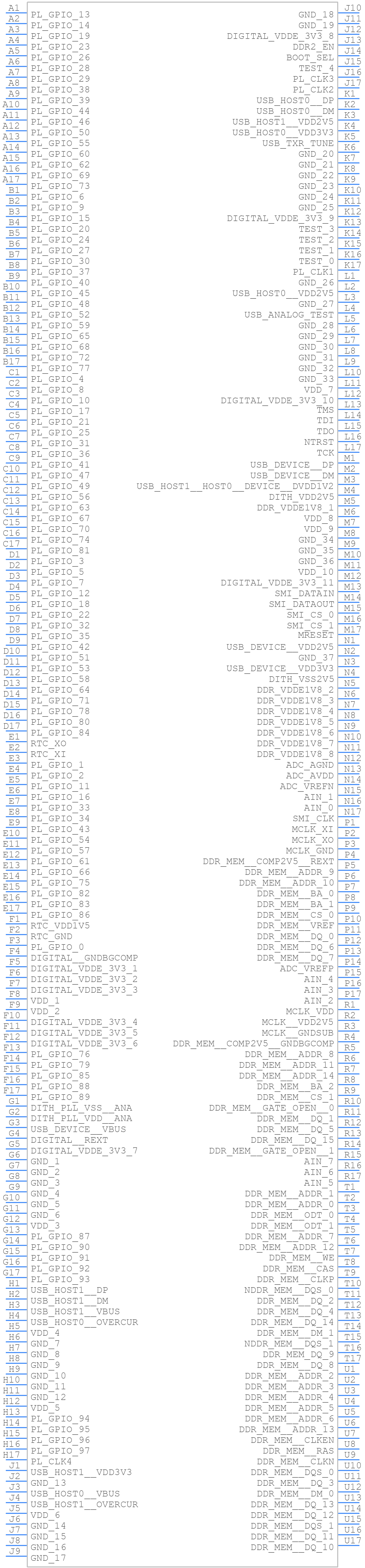

Part Symbol
-

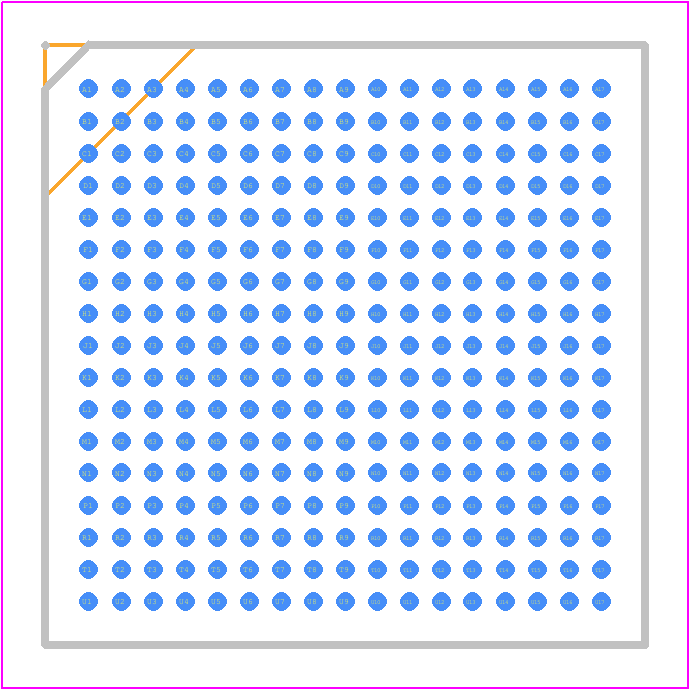

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPEAR320S-2 by STMicroelectronics
Results Overview of SPEAR320S-2 by STMicroelectronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
SPEAR320S-2 Information
SPEAR320S-2 by STMicroelectronics is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SPEAR320S-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
NexGen Digital | 3 |
|
RFQ | ||
|
DISTI #
SPEAR320S-2
|
EBV Elektronik | MPU SPEAr RISC 32Bit 333MHz 33V 289Pin LFBGA Tray (Alt: SPEAR320S-2) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 143 Weeks, 0 Days | EBV - 130 |
|
Buy Now | |
|
DISTI #
SPEAR320S-2
|
EBV Elektronik | MPU SPEAr RISC 32Bit 333MHz 33V 289Pin LFBGA Tray (Alt: SPEAR320S-2) RoHS: Compliant Min Qty: 126 Package Multiple: 126 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | Embedded MPU with ARM926 core for industrial and consumer applications | 15384 |
|
$27.1105 / $40.6657 | Buy Now |
Part Details for SPEAR320S-2
SPEAR320S-2 CAD Models
SPEAR320S-2 Part Data Attributes
|
|
SPEAR320S-2
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SPEAR320S-2
STMicroelectronics
Embedded MPU with ARM926 core for industrial and consumer applications
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | BGA | |
| Package Description | 15 X 15 MM, 1.70 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, LFBGA-289 | |
| Pin Count | 289 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 33 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B289 | |
| JESD-609 Code | e2 | |
| Length | 15 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 289 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA289,17X17,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.7 mm | |
| Speed | 333 MHz | |
| Supply Current-Max | 400 mA | |
| Supply Voltage-Max | 1.3 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver (Sn/Ag) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 15 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
