SPC20504 by: SPC Multicomp

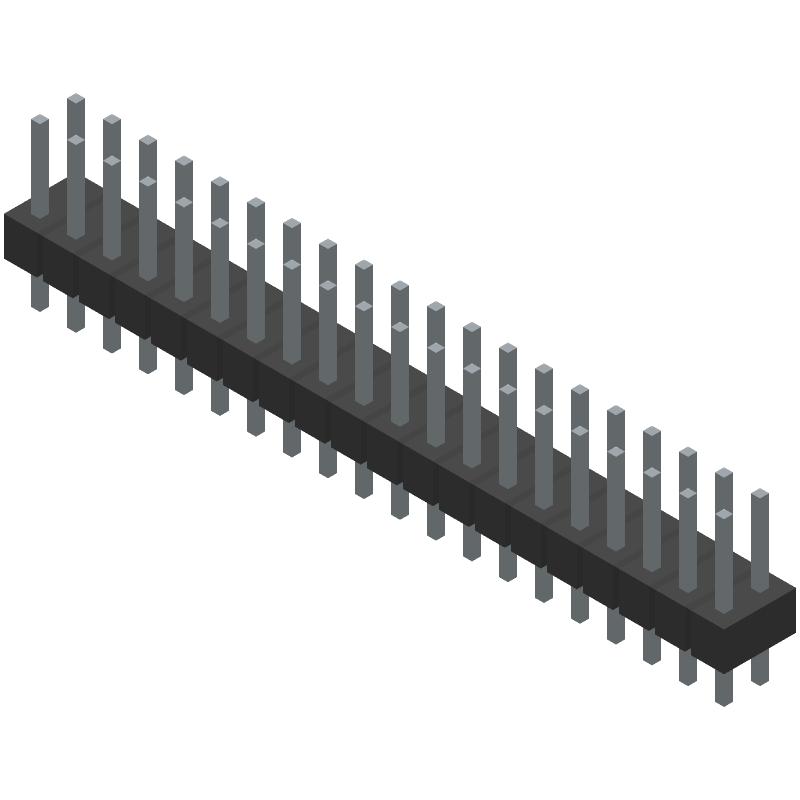

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator

Part Details for SPC20504 by SPC Multicomp

Results Overview of SPC20504 by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SPC20504 Information

SPC20504 by SPC Multicomp is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SPC20504

Part # Distributor Description Stock Price Buy
DISTI # 93K5757
Newark Board-Board Connector, Header, 40Way, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm... , No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Through Hole, Product Range:-, Connector Shroud:Unshrouded Rohs Compliant: Yes |Multicomp Pro SPC20504 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1633
  • 1 $0.1500
  • 100 $0.1500
  • 250 $0.1500
  • 500 $0.1500
  • 1,000 $0.1500
$0.1500 Buy Now
DISTI # 34014556
Verical Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Min Qty: 334 Package Multiple: 1 Americas - 1633
  • 334 $0.2351
  • 500 $0.2266
  • 1,000 $0.2192
$0.2192 / $0.2351 Buy Now

Part Details for SPC20504

SPC20504 CAD Models

  • Part Symbol

    Part Symbol

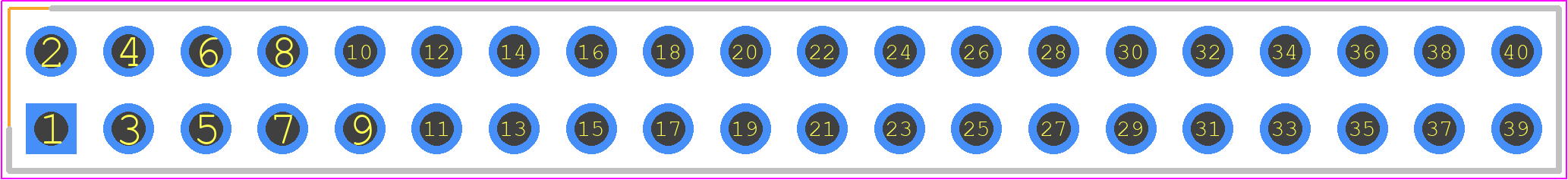

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SPC20504 Part Data Attributes

Parametric Data
SPC20504 SPC Multicomp
Buy Now Datasheet
Compare Parts:
SPC20504 SPC Multicomp Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Multicomp Pro
Body Breadth 0.2 inch
Body Depth 0.1 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating SN
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 1500VAC V
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Rated Current (Signal) 3 A
Terminal Length 0.118 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40

Alternate Parts for SPC20504
