SMF15CA Information
SMF15CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMF15CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AK1547
|
Newark | Tvs Diode, 1Kw, 15V, Bidir, Sod-123Fl, Product Range:Smf Series, Tvs Polarity:Bidirectional, Reve... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1675 |
|
$0.1250 | Buy Now |
|
DISTI #
80AH2432
|
Newark | "tvs Smf 15V Bi, 7 Tr"/ Tr Rohs Compliant: Yes |Littelfuse SMF15CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0890 / $0.1440 | Buy Now |
|
DISTI #
18-SMF15CACT-ND
|
DigiKey | TVS DIODE 15VWM 24.4VC SOD123F Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
12482 In Stock |
|
$0.0854 / $0.4000 | Buy Now |
|
DISTI #
576-SMF15CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SMF - CA 15V RoHS: Compliant | 10859 |
|
$0.0850 / $0.4000 | Buy Now |
|
DISTI #
SMF15CA
|
TTI | ESD Protection Diodes / TVS Diodes SMF - CA 15V RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 6000 In Stock |
|
$0.0840 / $0.0980 | Buy Now |
|
DISTI #
SMF15CA-LF
|
TME | Diode: TVS, 0.2kW, 16.7÷18.5V, 8.2A, bidirectional, ±5%, SOD123F Min Qty: 1 | 0 |
|
$0.1010 / $0.7700 | RFQ |
|
DISTI #
SMF15CA
|
IBS Electronics | SMD TVS DIODE BIDIRECTIONAL 200 W 15 V SOD-123FL SMF15CA Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.1136 / $0.1220 | Buy Now |
Part Details for SMF15CA

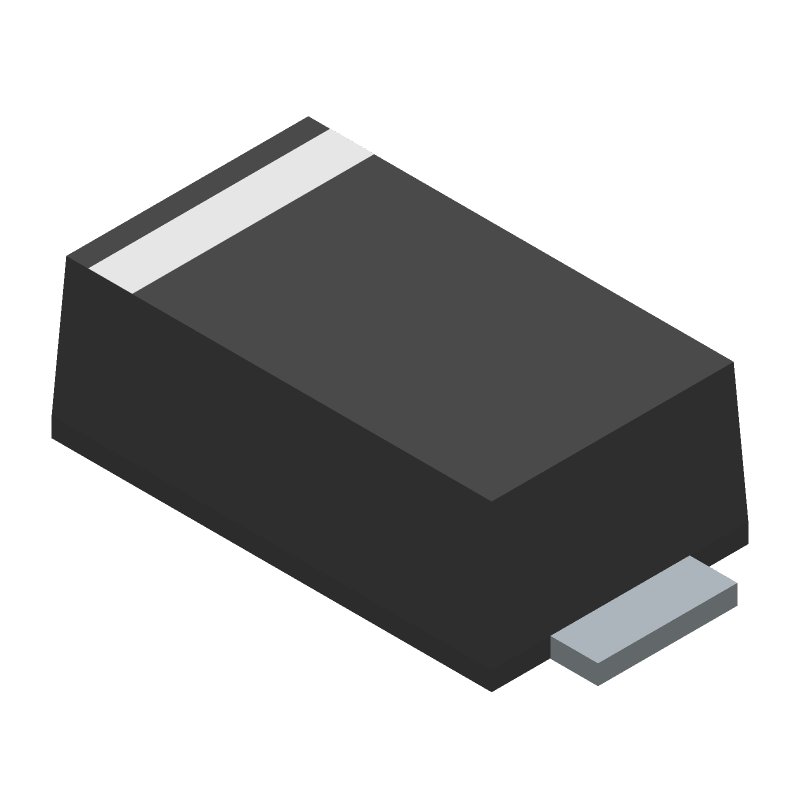

SMF15CA CAD Models
SMF15CA Part Data Attributes
|
|
SMF15CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SMF15CA
Littelfuse Inc
Transient Suppressor,
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2020-05-15 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 18.5 V | |
| Breakdown Voltage-Min | 16.7 V | |
| Breakdown Voltage-Nom | 17.6 V | |
| Clamping Voltage-Max | 24.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Reference Standard | IEC-61000-4-2, 4-4 | |
| Rep Pk Reverse Voltage-Max | 15 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 15 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
