SMCJ300A Information
SMCJ300A by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for SMCJ300A

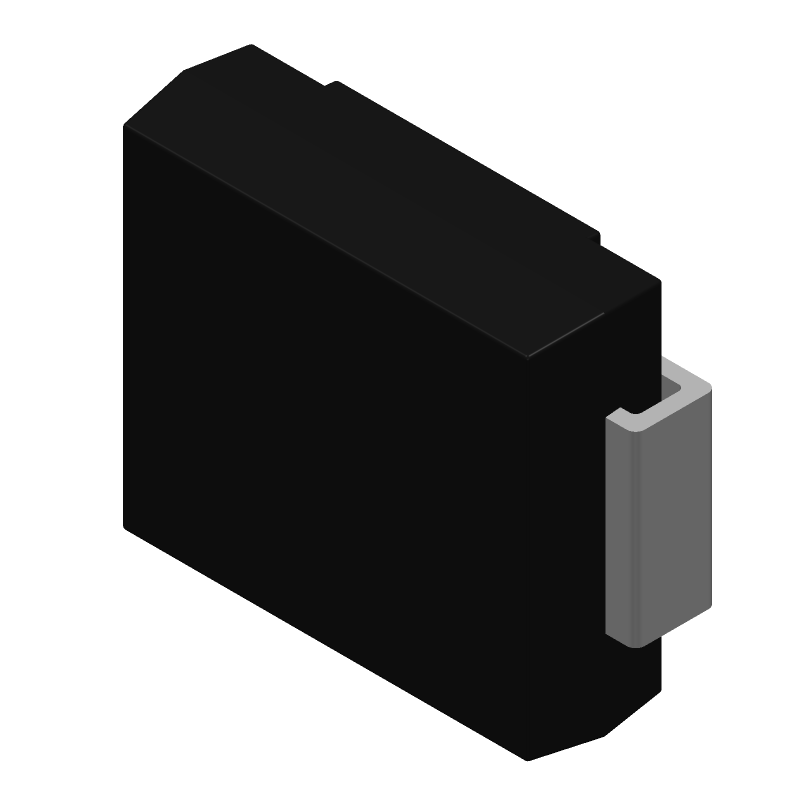

SMCJ300A CAD Models
SMCJ300A Part Data Attributes
|
|
SMCJ300A
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SMCJ300A
Micro Commercial Components
Trans Voltage Suppressor Diode, 1500W, 300V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN
Select a part to compare: |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-214AB | |
| Package Description | PLASTIC, SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Breakdown Voltage-Max | 371 V | |
| Breakdown Voltage-Min | 335 V | |
| Breakdown Voltage-Nom | 353 V | |
| Clamping Voltage-Max | 486 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e0 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 300 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
