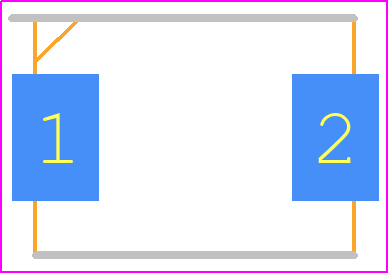

Footprint
-

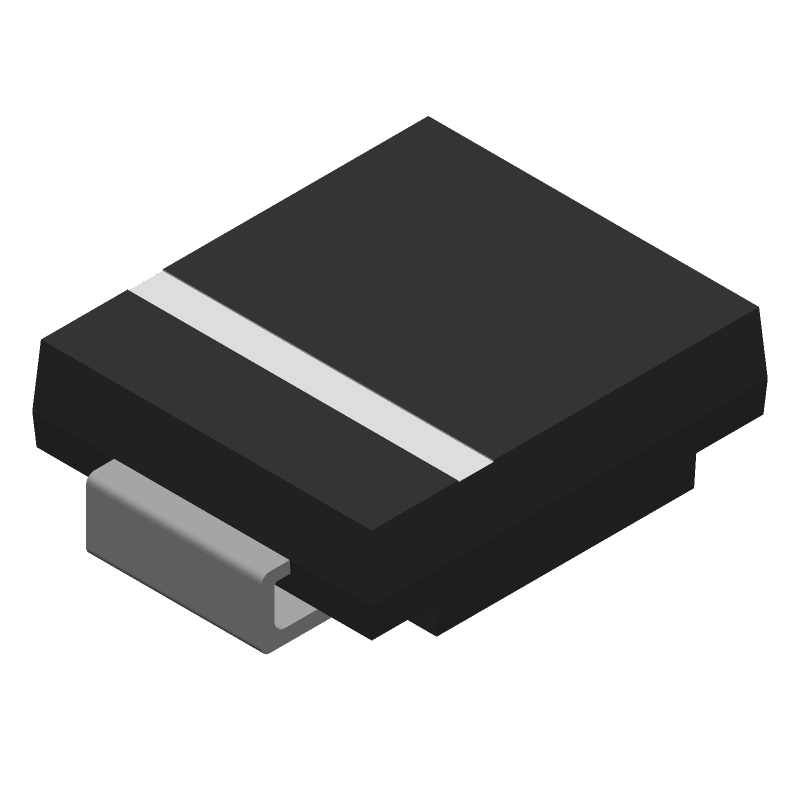

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMC50J20A by STMicroelectronics
Results Overview of SMC50J20A by STMicroelectronics
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
SMC50J20A Information
SMC50J20A by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMC50J20A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-SMC50J20A-ND
|
DigiKey | TVS DIODE 20VWM 32.4VC SMC Min Qty: 2500 Lead time: 13 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.6100 | Buy Now |
|
DISTI #
SMC50J20A
|
Avnet Americas | Diode TVS Single Uni-Dir 20V 5KW 2-Pin SMC T/R - Tape and Reel (Alt: SMC50J20A) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.5856 / $0.6196 | Buy Now |
|
DISTI #
511-SMC50J20A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 5000 W, 20 V TVS in SMC RoHS: Compliant | 0 |
|
$0.6090 / $0.6100 | Order Now |
Part Details for SMC50J20A
SMC50J20A CAD Models
SMC50J20A Part Data Attributes
|
|
SMC50J20A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMC50J20A
STMicroelectronics
5000 W, 20 V TVS in SMC
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 24.6 V | |
| Breakdown Voltage-Min | 22.2 V | |
| Breakdown Voltage-Nom | 23.4 V | |
| Clamping Voltage-Max | 32.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| Non-rep Peak Rev Power Dis-Max | 5000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5; MIL-STD-750; MIL-STD-883 | |
| Rep Pk Reverse Voltage-Max | 20 V | |
| Reverse Current-Max | 0.2 µA | |
| Reverse Test Voltage | 20 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
