SMBJP6KE22A-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode, 600W, 18.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN

Part Details for SMBJP6KE22A-TP by Micro Commercial Components

Results Overview of SMBJP6KE22A-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMBJP6KE22A-TP Information

SMBJP6KE22A-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMBJP6KE22A-TP

Part # Distributor Description Stock Price Buy
DISTI # SMBJP6KE22A-TPMSCT-ND
DigiKey TVS DIODE 18.8VWM 30.6V DO214AA Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2409
In Stock
  • 1 $0.3600
  • 10 $0.2430
  • 100 $0.1410
  • 500 $0.1180
  • 1,000 $0.0970
  • 3,000 $0.0850
  • 6,000 $0.0833
$0.0833 / $0.3600 Buy Now
DISTI # 833-SMBJP6KE22A-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes 30.6V 600W 19.9A RoHS: Compliant 1191
  • 1 $0.3600
  • 10 $0.2430
  • 100 $0.1410
  • 500 $0.1180
  • 1,000 $0.0970
  • 3,000 $0.0850
$0.0850 / $0.3600 Buy Now

Part Details for SMBJP6KE22A-TP

SMBJP6KE22A-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

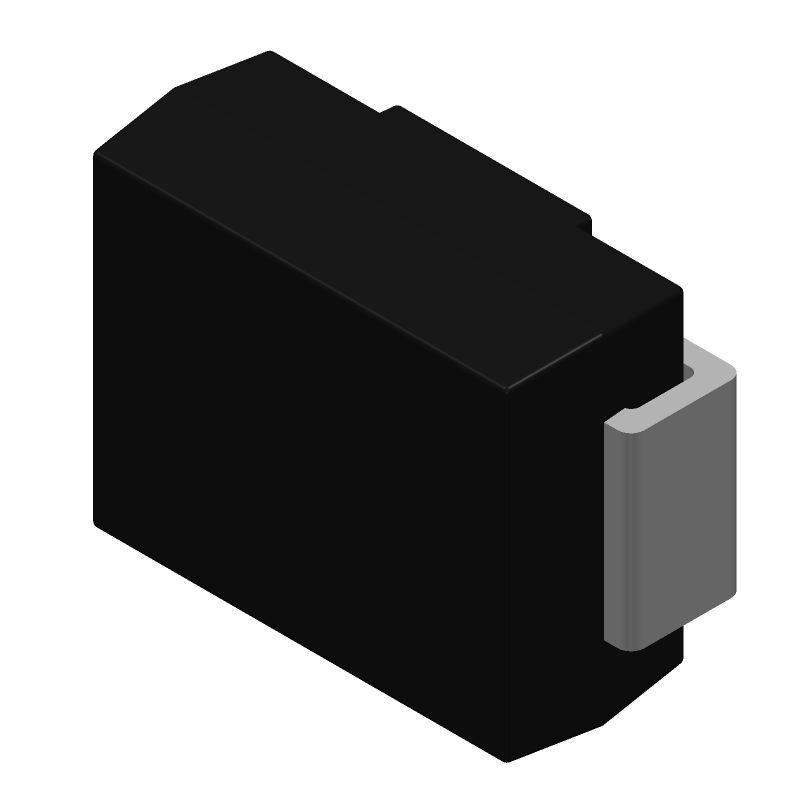

    3D Model
