Diodes / Zener Diodes / SMBJ5340B-TP
Datasheets
SMBJ5340B-TP by: Micro Commercial Components

Zener Diode, 6V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

Part Details for SMBJ5340B-TP by Micro Commercial Components

Results Overview of SMBJ5340B-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMBJ5340B-TP Information

SMBJ5340B-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMBJ5340B-TP

Part # Distributor Description Stock Price Buy
DISTI # 22AM0424
Newark Zener Diode, 6V, 5W, Do-214Aa Rohs Compliant: Yes |Micro Commercial Components SMBJ5340B-TP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2755
  • 1 $0.6580
  • 10 $0.4500
  • 25 $0.4150
  • 50 $0.3810
  • 100 $0.3540
  • 250 $0.3380
  • 500 $0.3230
$0.3230 / $0.6580 Buy Now
DISTI # SMBJ5340B-TPMSCT-ND
DigiKey DIODE ZENER 6V 5W DO214AA Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 40906
In Stock
  • 1 $0.4500
  • 10 $0.3030
  • 100 $0.2050
  • 500 $0.1872
  • 1,000 $0.1624
  • 3,000 $0.1862
  • 6,000 $0.1262
  • 9,000 $0.1200
  • 15,000 $0.1131
  • 21,000 $0.1090
  • 30,000 $0.1050
  • 75,000 $0.1000
$0.1000 / $0.4500 Buy Now
DISTI # 833-SMBJ5340B-TP
Mouser Electronics Zener Diodes 5W 6V RoHS: Compliant 38289
  • 1 $0.4500
  • 10 $0.3030
  • 100 $0.2050
  • 500 $0.1910
  • 3,000 $0.1900
$0.1900 / $0.4500 Buy Now
Future Electronics SMBJ Series 5 W 6 V 1 A Zener Diode-DO-214AA RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 22 Weeks Container: Reel 24000
Reel
  • 3,000 $0.1940
  • 6,000 $0.1920
  • 9,000 $0.1890
$0.1890 / $0.1940 Buy Now
DISTI # 88073659
Verical Diode Zener Single 6V 5% 5000mW 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2449 Americas - 18000
  • 3,000 $0.3504
  • 12,000 $0.3202
  • 18,000 $0.2979
$0.2979 / $0.3504 Buy Now
Future Electronics SMBJ Series 5 W 6 V 1 A Zener Diode-DO-214AA Min Qty: 3000 Package Multiple: 3000 24000
null
  • 3,000 $0.2100
  • 6,000 $0.2050
$0.2050 / $0.2100 Buy Now
New Advantage Corporation SMBJ Series 5 W 6 V 1 A Zener Diode-DO-214AA RoHS: Compliant Min Qty: 1 Package Multiple: 3000 18000
  • 3,000 $0.3000
  • 18,000 $0.2800
$0.2800 / $0.3000 Buy Now

Part Details for SMBJ5340B-TP

SMBJ5340B-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

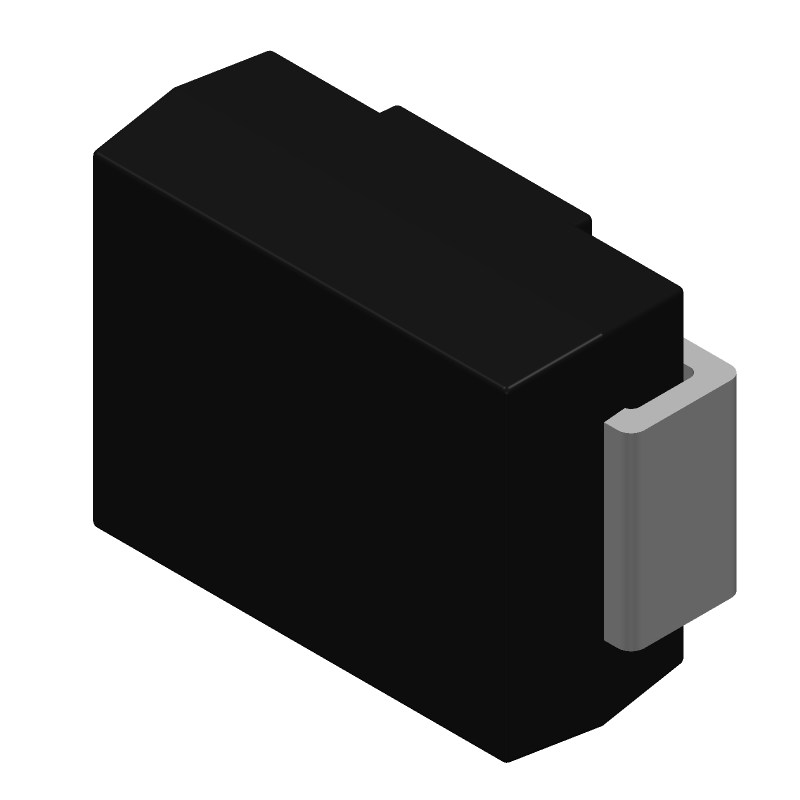

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMBJ5340B-TP Part Data Attributes

Parametric Data
SMBJ5340B-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMBJ5340B-TP Micro Commercial Components Zener Diode, 6V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-214AA
Package Description 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 1 Ω
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Knee Impedance-Max 300 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Voltage-Nom 6 V
Reverse Current-Max 0.001 µA
Surface Mount YES
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 200 mA

Alternate Parts for SMBJ5340B-TP

This table gives cross-reference parts and alternative options found for SMBJ5340B-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ5340B-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MXSMBJ5340B Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MXSMBJ5340B
MXSMBJ5340BE3TR Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MXSMBJ5340BE3TR
SMBJ5340B Microchip Technology Inc Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA SMBJ5340B-TP vs SMBJ5340B
MXSMBJ5340BE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MXSMBJ5340BE3
SMBJ5340BTRE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 5W, SMBJ5340B-TP vs SMBJ5340BTRE3
SMBJ5340B-T Micro Commercial Components Check for Price Zener Diode, SMBJ5340B-TP vs SMBJ5340B-T
MVSMBJ5340B Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MVSMBJ5340B
Part Number Manufacturer Composite Price Description Compare
SMBJ5340B Micro Commercial Components Check for Price Zener Diode, 6V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMB, 2 PIN SMBJ5340B-TP vs SMBJ5340B
MSPSMBJ5340BTR Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MSPSMBJ5340BTR
SMBJ5340BE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs SMBJ5340BE3
MSPSMBG5340BE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-215AA, ROHS COMPLIANT, PLASTIC, SMBG, 2 PIN SMBJ5340B-TP vs MSPSMBG5340BE3
MQSMBJ5340BE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN SMBJ5340B-TP vs MQSMBJ5340BE3
1SMC5340T/R13 PanJit Semiconductor Check for Price Zener Diode, 6V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMBJ5340B-TP vs 1SMC5340T/R13
MXSMBG5340BE3 Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-215AA, ROHS COMPLIANT, PLASTIC, SMBG, 2 PIN SMBJ5340B-TP vs MXSMBG5340BE3
1SMC5340 PanJit Semiconductor Check for Price Zener Diode, 6V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMBJ5340B-TP vs 1SMC5340
MXSMBG5340BTR Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-215AA, PLASTIC, SMBG, 2 PIN SMBJ5340B-TP vs MXSMBG5340BTR
MSPSMBG5340B Microsemi Corporation Check for Price Zener Diode, 6V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-215AA, PLASTIC, SMBG, 2 PIN SMBJ5340B-TP vs MSPSMBG5340B

SMBJ5340B-TP Related Parts

SMBJ5340B-TP Frequently Asked Questions (FAQ)

  • The recommended footprint and land pattern for SMBJ5340B-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal issues.

  • To ensure reliability in high-temperature applications, it's crucial to follow the recommended derating curves and thermal management guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.

  • The maximum surge current rating for SMBJ5340B-TP is typically specified in the datasheet as a peak pulse current (IPP). However, it's essential to note that the device can handle higher surge currents for shorter durations. Consult the datasheet or contact Micro Commercial Components for more information.

  • While it's technically possible to use multiple SMBJ5340B-TP devices in parallel, it's not recommended due to potential mismatch and uneven current sharing issues. Instead, consider using a single device with a higher power rating or consulting with Micro Commercial Components for a custom solution.

  • The typical lead time and minimum order quantity for SMBJ5340B-TP may vary depending on the region, distributor, and availability. It's best to check with authorized distributors or Micro Commercial Components directly for the most up-to-date information.
